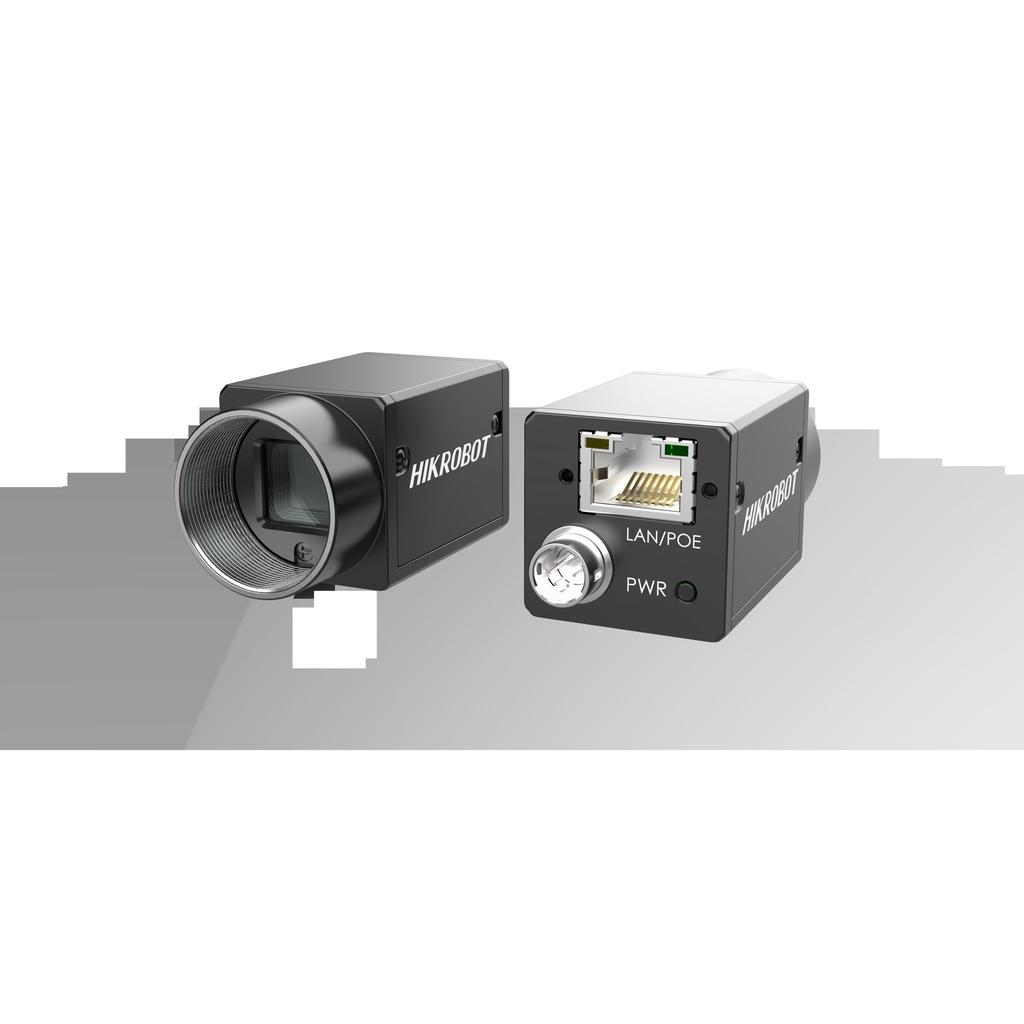

Hikrobot MV-CE020-10GC

CE Area Scan Camera

Order code
MV-CE020-10GC
Order number
306301180
Resolution
1920 × 1080
Frame rate
58 fps @ 1920 × 1080
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Pixel size
2.9 μm × 2.9 μm

Hikrobot MV-CE020-10GC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Supports auto and manual adjustment for exposure time, LUT, Gamma correction, etc.
✓Supports hardware trigger, software trigger, etc.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorFood & beveragePackagingMedical
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, rolling shutter
Sensor modelSony® IMX290
Pixel size2.9 μm × 2.9 μm
Sensor size1/2.8"
Resolution1920 × 1080
Max. frame rate58 fps @ 1920 × 1080
Dynamic range74 dB
SNR38 dB
Gain0 dB to 20 dB
Exposure time15 μs to 2 sec
Exposure modeOff/Once/Continuous exposure mode, supports Global Reset and Rolling
MonoColor
Pixel formatMono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
Digital I/O6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 2.4 W @ 12 VDC
Mechanical
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
WeightApprox. 68 g (0.15 lb.)
Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 80% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountC-mount
