Proximity Switches w/ Background Suppression

Sorter efter Sorter efter: Udvalgte
[SENSOPART 518-51505] SENSOPART FMH 18-L4

SENSOPART FMH 18-L4

Proximity switch with background suppression, M18, 120mm, bgs, PNP complementary, plug M12 4 pins
[SENSOPART 518-51504] SENSOPART FMH 18

SENSOPART FMH 18

Proximity switch with background suppression, M18, PNP complemantary cable, 600 Hz, 120 mm, Proximity switch with background su
[SENSOPART 830-11011] SENSOPART FGL 5-IK-50-PS-M4

SENSOPART FGL 5-IK-50-PS-M4

Label fork sensor, fork width 5 mm, teach-in, PNP output, plug M8 4-pin
[SENSOPART 831-81000] SENSOPART FG 40 I-PSM3

SENSOPART FG 40 I-PSM3

Optical window, metal housing, fork width 40 mm, fork depth 80 mm, infrared LED, plug M8, 3-pin
[SENSOPART 830-11005] SENSOPART FGL 80-R-PSM3

SENSOPART FGL 80-R-PSM3

Fork Sensor, fork width 80 mm, smallest part to detect 0.4 mm switching frequency up to 1500 Hz, robust metal housing, NO/NC sw
[SENSOPART 830-11004] SENSOPART FGL 50-R-PSM3

SENSOPART FGL 50-R-PSM3

Fork Sensor, fork width 50 mm, smallest part to detect 0.4 mm switching frequency 1500Hz, robust metal housing, NO/NC switchabl
[SENSOPART 830-11003] SENSOPART FGL 30-R-PSM3

SENSOPART FGL 30-R-PSM3

Fork Sensor, metal housing, fork width 30 mm, fork depth 34 mm, red light, 1500 Hz, metal plug M8, 3-pin
[SENSOPART 830-11002] SENSOPART FGL 20-R-PSM3

SENSOPART FGL 20-R-PSM3

Fork Sensor, metal housing, fork width 20 mm, fork depth 24 mm, red light, 1500 Hz, metal plug M8, 3-pin
[SENSOPART 623-11044] SENSOPART FT 55-RLHM-600-2PNSDL-L5M

SENSOPART FT 55-RLHM-600-2PNSDL-L5M

Diffuse sensor with background suppression, 120 ... 600 mm, laser (class 1), 2xQ, Auto-detect, Teach-in, Display, IP 67 / IP 69
[SENSOPART 623-11043] SENSOPART FT 55-RLHM-1000-2PNSDL-L5M

SENSOPART FT 55-RLHM-1000-2PNSDL-L5M

Diffuse sensor with background suppression, 200 ... 1000 mm, laser (class 1), 2xQ, Auto-detect, Teach-in, Display, IP 67 / IP 6
[SENSOPART 625-11021] SENSOPART FT 55-CM-4-PNSDL-L5M FT 55-CM-4-PNSDL-L5M

SENSOPART FT 55-CM-4-PNSDL-L5M

Description
Stable processes thanks to intelligent color detection, regardless of distance
Economical solutions through up to twelve storable colors or jobs
Dependable switching behaviour through reliable glare suppression (depending on model)
Intuitive sensor setup with integrated LCD display
Customised adjustment to applications through digital color value output using IO-Link

Product data:
Velocity [Hz]: 3000
Amount of colors: 7
Sensor principle: Color sensor
Spot size [mm]: 8 x 8
Series: F55 (50 x 50,1 x 23 mm)
Working distance min. [mm]: 20
Working distance max. [mm]: 150
Interface: IO-Link
Light source: LED, white
Switching output: PNP/NPN (auto detect)
Temperature range [°C]: -10 ... +55
Connection type: Metal plug M12, 5-pin
Enclosure rating: IP 67, IP69

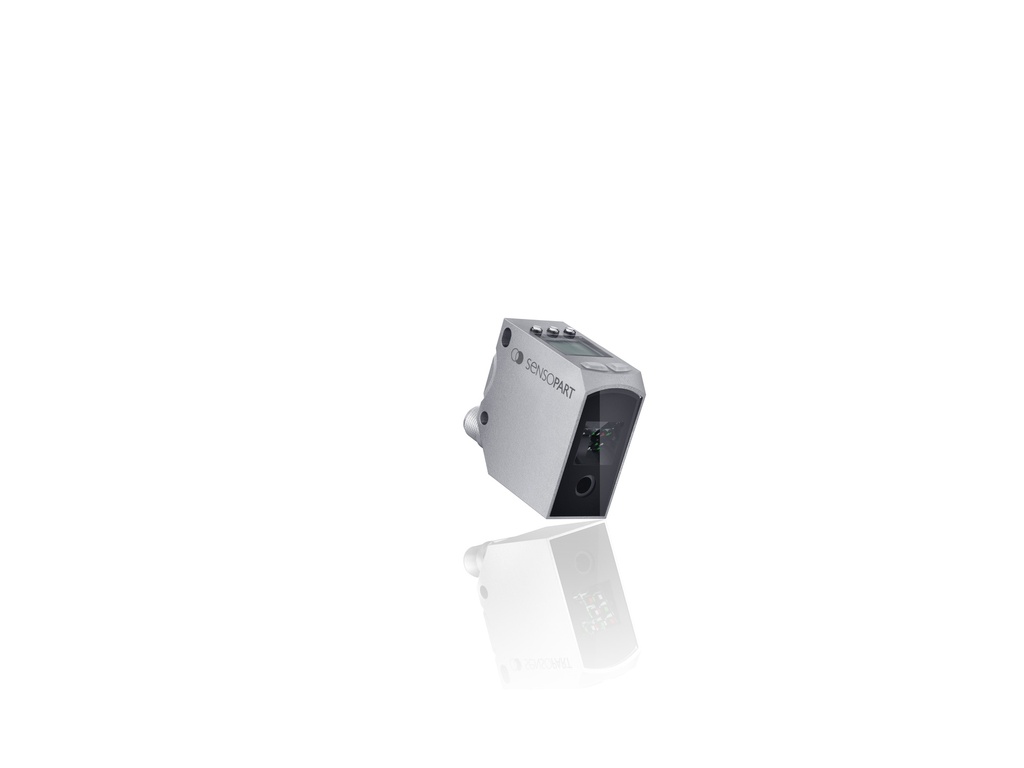

[SENSOPART 625-11020] SENSOPART FT 55-CM-4-PNSD-L8M FT 55-CM-4-PNSD-L8M

SENSOPART FT 55-CM-4-PNSD-L8M

Description
Stable processes thanks to intelligent color detection, regardless of distance
Economical solutions through up to twelve storable colors or jobs
Dependable switching behaviour through reliable glare suppression (depending on model)
Intuitive sensor setup with integrated LCD display
Customised adjustment to applications through digital color value output using IO-Link

Product data:
Velocity [Hz]: 3000
Amount of colors: 12
Sensor principle: Color sensor
Spot size [mm]: 8 x 8
Series: F55 (50 x 50,1 x 23 mm)
Working distance min. [mm]: 20
Working distance max. [mm]: 150
Light source: LED, white
Switching output: PNP/NPN (auto detect)
Temperature range [°C]: -10 ... +55
Connection type: Metal plug M12, 8-pin
Enclosure rating: IP 67, IP69
[SENSOPART 625-11012] SENSOPART FT 55-CM-3-PNSDL-L4M FT 55-CM-3-PNSDL-L4M

SENSOPART FT 55-CM-3-PNSDL-L4M

Description
Stable processes thanks to intelligent color detection, regardless of distance
Economical solutions through up to twelve storable colors or jobs
Dependable switching behaviour through reliable glare suppression (depending on model)
Intuitive sensor setup with integrated LCD display
Customised adjustment to applications through digital color value output using IO-Link

Product data:
Velocity [Hz]: 3000
Amount of colors: 1
Sensor principle: Color sensor
Spot size [mm]: 4 x 4 @ 40 mm
Series: F55 (50 x 50,1 x 23 mm)
Working distance min. [mm]: 18
Working distance max. [mm]: 60
Interface: IO-Link
Light source: LED, white
Switching output: PNP/NPN (auto detect)
Temperature range [°C]: -10 ... +55
Connection type: Metal plug M12, 4-pin
Enclosure rating: IP 67, IP69
[SENSOPART 625-11011] SENSOPART FT 55-CM-3-PNSDL-L5M FT 55-CM-3-PNSDL-L5M

SENSOPART FT 55-CM-3-PNSDL-L5M

Description
Stable processes thanks to intelligent color detection, regardless of distance
Economical solutions through up to twelve storable colors or jobs
Dependable switching behaviour through reliable glare suppression (depending on model)
Intuitive sensor setup with integrated LCD display
Customised adjustment to applications through digital color value output using IO-Link

Product data:
Velocity [Hz]: 3000
Amount of colors: 7
Sensor principle: Color sensor
Spot size [mm]: 4 x 4 @ 40 mm
Series: F55 (50 x 50,1 x 23 mm)
Working distance min. [mm]: 18
Working distance max. [mm]: 60
Interface: IO-Link
Light source: LED, white
Switching output: PNP/NPN (auto detect)
Temperature range [°C]: -10 ... +55
Connection type: Metal plug M12, 5-pin
Enclosure rating: IP 67, IP69
[SENSOPART 625-11010] SENSOPART FT 55-CM-3-PNSD-L8M FT 55-CM-3-PNSD-L8M

SENSOPART FT 55-CM-3-PNSD-L8M

Description
Stable processes thanks to intelligent color detection, regardless of distance
Economical solutions through up to twelve storable colors or jobs
Dependable switching behaviour through reliable glare suppression (depending on model)
Intuitive sensor setup with integrated LCD display
Customised adjustment to applications through digital color value output using IO-

Product data:
Velocity [Hz]: 3000
Amount of colors: 12
Sensor principle: Color sensor
Spot size [mm]: 4 x 4 @ 40 mm
Series: F55 (50 x 50,1 x 23 mm)
Working distance min. [mm]: 18
Working distance max. [mm]: 60
Light source: LED, white
Switching output: PNP/NPN (auto detect)
Temperature range [°C]: -10 ... +55
Connection type: Metal plug M12, 8-pin
Enclosure rating: IP 67, IP69
[SENSOPART 625-11001] SENSOPART FT 55-CM-1-PNSDL-L5M FT 55-CM-1-PNSDL-L5M

SENSOPART FT 55-CM-1-PNSDL-L5M

Description
Stable processes thanks to intelligent color detection, regardless of distance
Economical solutions through up to twelve storable colors or jobs
Dependable switching behaviour through reliable glare suppression (depending on model)
Intuitive sensor setup with integrated LCD display
Customised adjustment to applications through digital color value output using IO-Link

Product data:
Velocity [Hz]: 500
Amount of colors: 7
Sensor principle: Color sensor
Spot size [mm]: 6 x 6
Series: F55 (50 x 50,1 x 23 mm)
Working distance min. [mm]: 18
Working distance max. [mm]: 32
Interface: IO-Link
Light source: LED, white
Switching output: PNP/NPN (auto detect)
Temperature range [°C]: -10 ... +55
Connection type: Metal plug M12, 5-pin
Enclosure rating: IP 67, IP69
[SENSOPART 623-11042] SENSOPART FT 55-BH2-NS-L4

SENSOPART FT 55-BH2-NS-L4

Photoelectric diffuse sensor,s with background suppression, blue light, robust against environmental influences, NPN, IP67 plug
[SENSOPART 623-11041] SENSOPART FT 55-BH2-PS-L4

SENSOPART FT 55-BH2-PS-L4

Photoelectric diffuse sensor,s with background suppression, blue light, robust against environmental influences, PNP, IP67 plug
[SENSOPART 624-41007] SENSOPART FT 55-RLAM-800-PNSUID-S1L8M

SENSOPART FT 55-RLAM-800-PNSUID-S1L8M

Laser distance sensor, working distance 200…1000 mm, 2xQ, 4…20mA / 0.1...10V, RS485, laser class 1, Autodetect (PNP/NPN), metal
[SENSOPART 624-41006] SENSOPART FT 55-RLAM-800-PNSUIDL-L5M

SENSOPART FT 55-RLAM-800-PNSUIDL-L5M

Laser distance sensor, working range 200…1000 mm, 2xQ, QA 4…20 mA / 0.1...10 V, IO-Link, laser class 1, auto-detect (PNP/NPN),
[SENSOPART 624-41005] SENSOPART FT 55-RLAM-480-PNSUID-S1L8M

SENSOPART FT 55-RLAM-480-PNSUID-S1L8M

Laser distance sensor, working distance 120…600 mm, 2xQ, QA 4…20mA / 0.1...10V, RS485, laser class 1, Autodetect (PNP/NPN), met
