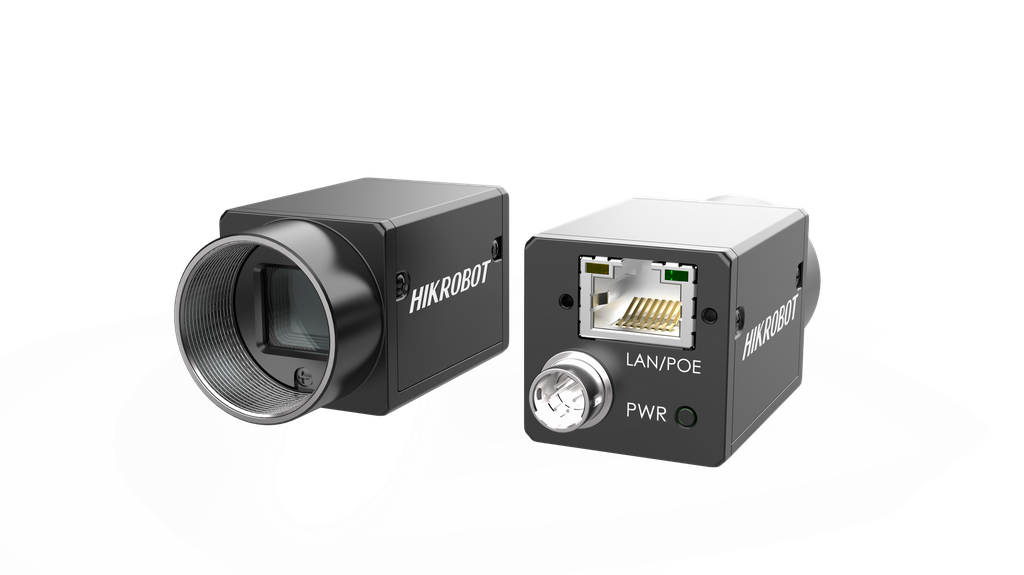

Hikrobot MV-CA020-10GC V3.0

Hikrobot MV-CA020-10GC V3.0

Hikrobot MV-CA020-10GC — An industrial machine-vision camera for inspection, measurement and positioning in automated production. Genuine product, supplied by ZTEC.

0,00 € 0,00 €
kr 0,00
(eksklusiv moms)
Kontakt os
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CA020-10GC

CA

Resolution
1624 × 1240
Frame rate
60 fps @1624 × 1240
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Pixel size
4.5 µm × 4.5 µm

Hikrobot MV-CA020-10GC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Sensor typeCMOS, global shutter
Sensor modelSony® IMX430
Sensor size1/1.7"
Pixel size4.5 µm × 4.5 µm
Resolution1624 × 1240
Max. frame rate60 fps @1624 × 1240
Mono/colorColor
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
Lens mountC-Mount
29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
CertificationFCC-SDoC;CE-EMC;UL;KC;CE-LVD
