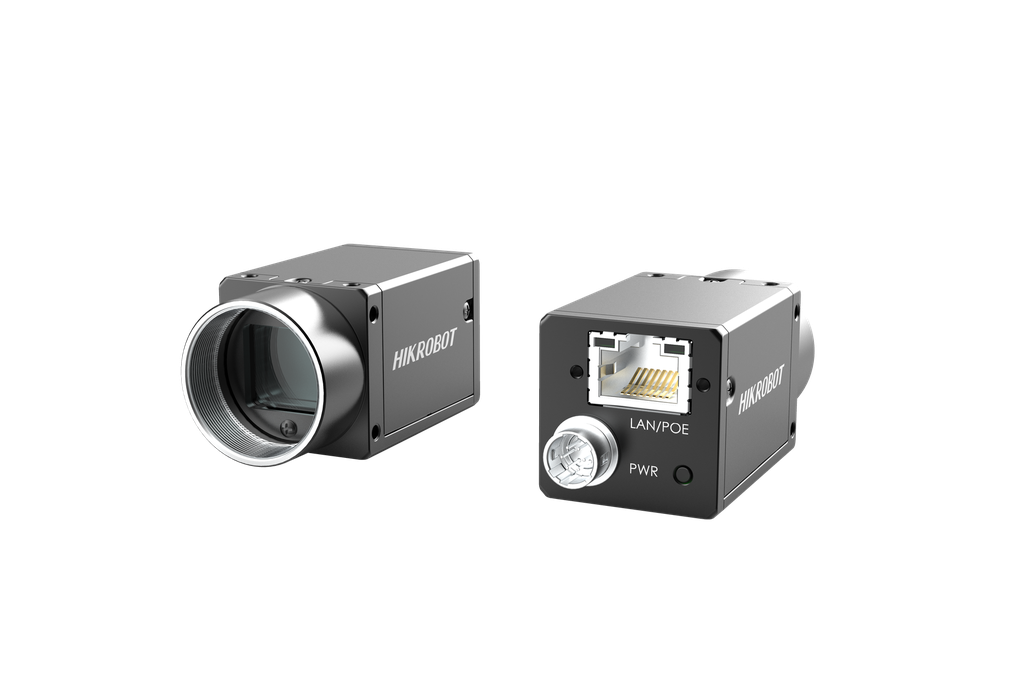

Hikrobot MV-CS016-10GC

Hikrobot MV-CS016-10GC — MV-CS016-10GM/GC camera adopts Sony® IMX296 sensor to  Mono camera: MV-CS016-10GM provide high-quality image. It uses GigE interface to transmit  Color camera: MV-CS016-10GC non-compressed images in real time, and its max. frame rate Applicable. Originalt produkt, leveret af ZTEC.

563,17 € 563,17 €
kr 4.210,02
(eksklusiv moms)
Kontakt os
Documents
MV-CS016-10GC - Datasheet.pdf MV-CS016-10GC - Drawing.pdf MV-CS016-10GC - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CS016-10GC

CS Area Scan Camera

Order code
MV-CS016-10GC
Order number
306301244
Resolution
1440 × 1080
Frame rate
65.2 fps @ 1440 × 1080
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Pixel size
3.45 μm × 3.45 μm

Hikrobot MV-CS016-10GC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts brand new design to reduce power consumption.
✓Compact design with mounting holes on panels for flexible mounting from 4 sides.
✓Supports noise reduction and color correction matrix function.
✓Supports auto or manual adjustment for gain, exposure time, LUT, Gamma correction, white balance, etc.
✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsSemiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelSony® IMX296
Pixel size3.45 μm × 3.45 μm
Sensor size1/2.9"
Resolution1440 × 1080
Max. frame rate65.2 fps @ 1440 × 1080
Dynamic range
SNR41 dB
Gain0 dB to 24 dB
UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
MonoColor
Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 2.5 W@12 VDC
Mechanical
Lens mountC-mount
29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
WeightApprox. 100 g (0.22 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 80% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
Additional specifications
Quantum efficiency
Dark noise
Signal-to-noise ratio
Saturation capacity
