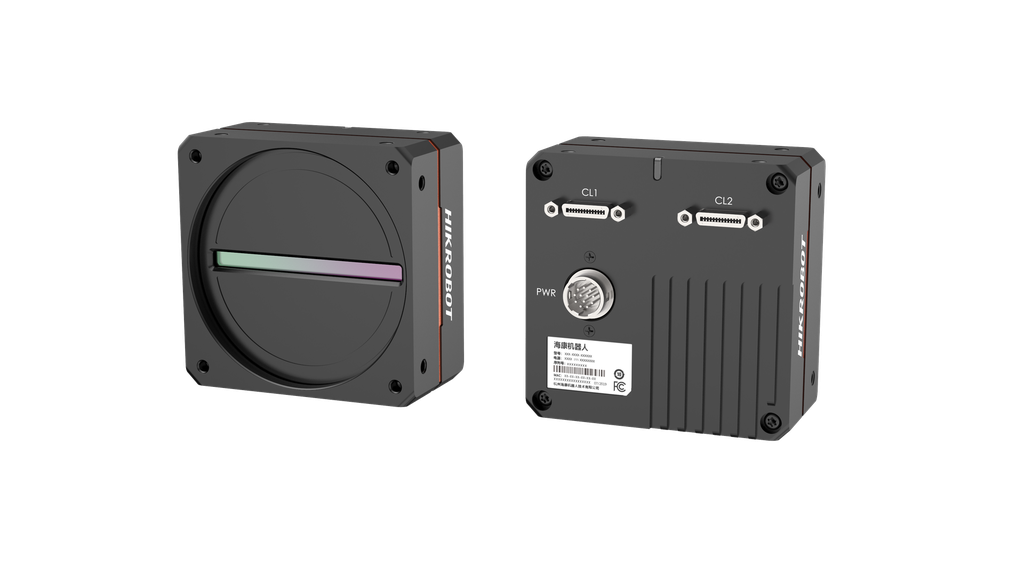

Hikrobot MV-CL161-41CM

CL Line Scan Camera

Order code
MV-CL161-41CM
Order number
306301608
Resolution
16384 × 1
Pixel size
3.5 μm

Hikrobot MV-CL161-41CM is an industrial machine-vision camera for inspection, measurement and positioning in automated production.

Key features

✓Integrates multiple ISP technologies, and supports manual adjustment of Gamma correction, FFC correction, LUT, black level, etc.
✓Supports multiple exposure and acquisition modes.
✓Adopts configurable bi-directional I/O hardware design.
✓Compact design and flexible installation.
✓Compatible with Camera Link Protocol and GenlCam Standard.

Applications & Industries

What you can solve with this product:

Typical industries: New energyMetal3C electronics
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS
Pixel size3.5 μm
Resolution16384 × 1
Image mode1-line
10 kHz (Base), 20 kHz (Medium), 40 kHz (Full), and 50 kHz (80-bit)
Configuration modeBase, Medium, Full, 80-bit
Tap geometry1 × 2, 1 × 4, 1 × 8, 1 × 10
Tap number2 Taps, 4 Taps, 8 Taps, 10 Taps
Pixel clock40 MHz, 66 MHz, 80 MHz, 85 MHz
Dynamic range64.7 dB
SNR44.3 dB
Supports 1 ×, 2 ×, 4 ×, 8 ×
Exposure time2 μs to 10 ms
Off/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure
MonoMono
Pixel formatMono 8/10/12
BinningSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal reverse image output
Trigger modeExternal trigger, internal trigger
External trigger modeLine trigger, frame trigger, line + frame trigger
Electrical features
Camera Link (SDR connector); USB interface for updating firmware
12-pin P10 connector provides power and I/O: configurable input and output × 4 (Line 0/1/3/4), and support single-end/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
Power supply12 VDC to 24 VDC
Power consumptionTyp. 7.2 W @ 12 VDC
Mechanical
M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter
76 mm × 76 mm × 42.1 mm (3.0" × 3.0" × 1.7")
WeightApprox. 320 g (0.7 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
Working temperature: 0 °C to 55 °C (32 °F to 131 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity5% RH to 90% RH (no condensation)
General
Client softwareMVS and frame grabber software meeting with Camera Link Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11
CompatibilityCamera Link V1.2, GenICam
CertificationCE, RoHS, KC
