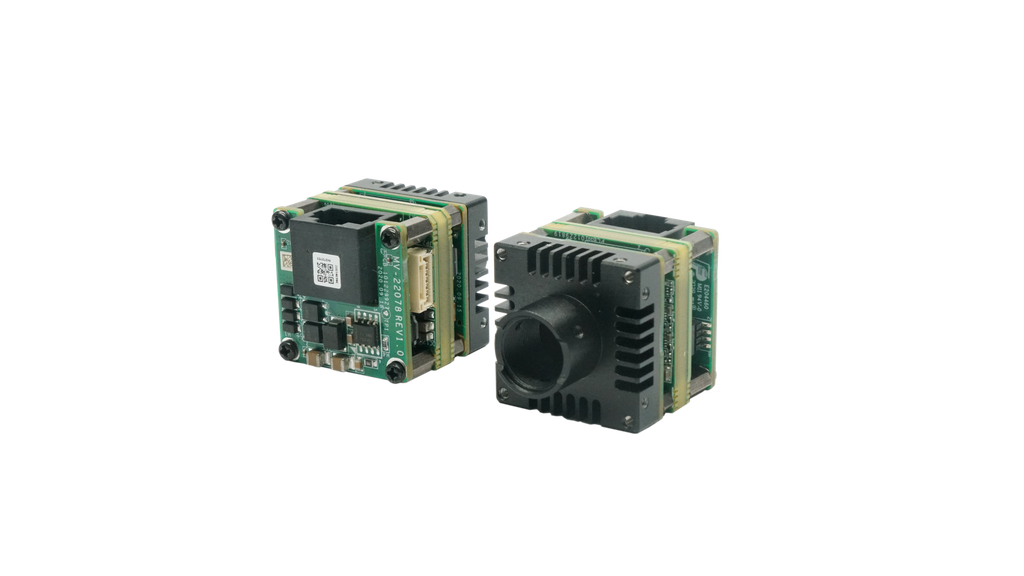

Hikrobot MV-CB060-10GC-S

CB Board Level Camera

Order code
MV-CB060-10GC-S
Order number
306301614
Resolution
3072 × 2048
Interface
Gigabit Ethernet, compatible with Fast Ethernet
Pixel size
2.4 μm × 2.4 μm
Sensor
Sony® IMX178

Hikrobot MV-CB060-10GC-S is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports auto or manual adjustment of gain, exposure time, white balance, manual adjustment of Gamma correction, LUT, Binning, etc.
✓Adopts noise reduction and image compression functions to provide high-quality images.
✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorLogistics
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, rolling shutter
Sensor modelSony® IMX178
Pixel size2.4 μm × 2.4 μm
Sensor size1/1.8"
Resolution3072 × 2048
19.1 fps @3072 × 2048 30.7 fps @3072 × 2048 (image compression mode enabled)
Dynamic range71.3 dB
SNR41.3 dB
Gain0 dB to 24 dB
Exposure time25 μs to 2.5 sec
Exposure modeOff/ Once/ Continuous exposure mode
Mono/colorColor
Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceGigabit Ethernet, compatible with Fast Ethernet
6-pin connector provides power and I/O, including non-isolated input × 1 (Line 0), non-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 2.6 W@12 VDC
Mechanical
Lens mountM12-mount
29 mm × 29 mm × 30.2 mm (1.1" × 1.1" × 1.2")
WeightApprox. 45 g (0.1 lb.)
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity20% to 80% RH, non-condensing
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, FCC, RoHS, KC
