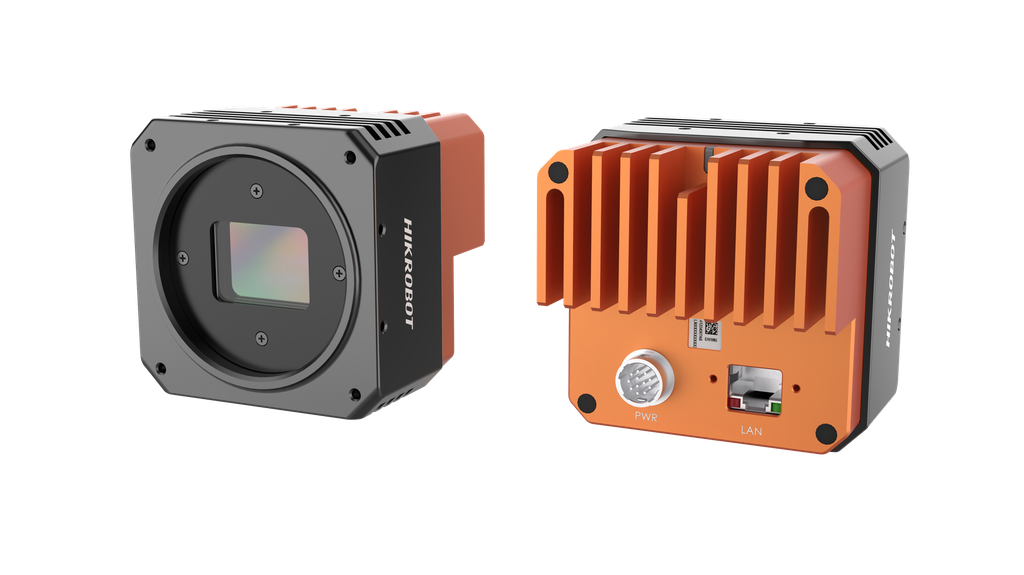

Hikrobot MV-CH310-10TC-M58S-NN

Hikrobot MV-CH310-10TC-M58S-NN — MV-CH310-10TM/TC camera adopts Sony® IMX342 sensor to  Mono camera: MV-CH310-10TM-M58S-NN provide high-quality images with high resolution and low noise.  Color camera: MV-CH310-10TC-M58S-NN It uses 10 GigE interface to transmit non-compressed images Applicable. Originalt produkt, leveret af ZTEC.

16.179,41 € 16.179,41 €
kr 120.937,84
(eksklusiv moms)
Kontakt os
Documents
MV-CH310-10TC-M58S-NN - Datasheet.pdf MV-CH310-10TC-M58S-NN - Drawing.pdf MV-CH310-10TC-M58S-NN - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH310-10TC-M58S-NN

CH Area Scan Camera

Order code
MV-CH310-10TC-M58S-NN
Order number
306301864
Resolution
6464 × 4852
Frame rate
17.2 fps @ 6464 × 4852 Bayer RG 8
Pixel size
3.45 μm × 3.45 μm
Sensor
Sony® IMX342

Hikrobot MV-CH310-10TC-M58S-NN is an industrial machine-vision camera for inspection, measurement and positioning in automated production.

Key features

✓31 MP resolution, and pixel size of 3.45 μm × 3.45 μm.
✓Supports auto or manual adjustment of gain and exposure time, and manual adjustment of LUT and Gamma correction.
✓Adopts design without fan to ensure stability of high-speed image acquisition.
✓Adopts low power consumption design.
✓Adopts 10 GigE interface, compatible with GigE, and max. transmission distance of 100 meters without relay.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelSony® IMX342
Pixel size3.45 μm × 3.45 μm
Sensor size22.3 mm × 16.7 mm
Resolution6464 × 4852
Max. frame rate17.2 fps @ 6464 × 4852 Bayer RG 8
Dynamic range73 dB
SNR40 dB
Gain0 dB to 24 dB
Exposure time4 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)
12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
Power supply9 VDC to 24 VDC
Power consumptionTyp. 11.4 W @ 12 VDC
Mechanical
74 mm × 74 mm × 64.4 mm (2.9" × 2.9" × 2.5")
WeightApprox. 560 g (1.2 lb.)
Ingress protectionIP40 ( under proper lens installation and wiring)
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
Additional specifications
Lens mountM58*0.75, flange back length 11.48 mm
