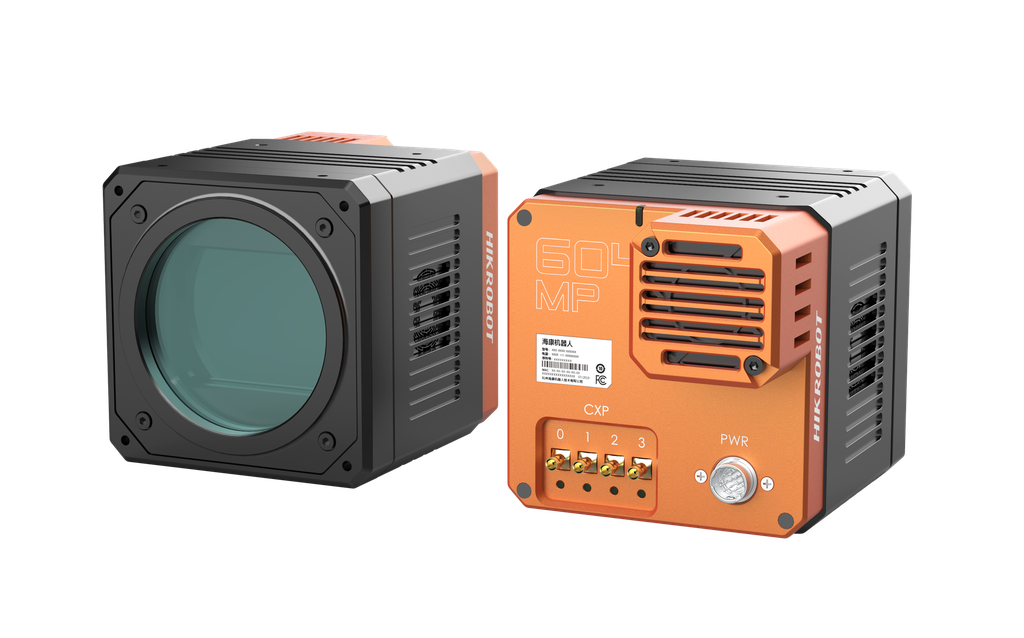

Hikrobot MV-CH6040-10XM-M72-NF

Hikrobot MV-CH6040-10XM-M72-NF — MV-CH6040-10XM/XC camera adopts Sony® IMX411 sensor to FPD detection, PCB AOI, file scanning, provide high-quality images. It uses CXP-6 interface to transmit non- etc. compressed images in real time. Sensor Quantum Efficiency. Originalt produkt, leveret af ZTEC.

118.381,16 € 118.381,16 €
kr 884.911,04
(eksklusiv moms)
Kontakt os
Documents
MV-CH6040-10XM-M72-NF - Datasheet.pdf MV-CH6040-10XM-M72-NF - Drawing.pdf MV-CH6040-10XM-M72-NF - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH6040-10XM-M72-NF

CH Area Scan Camera

Order code
MV-CH6040-10XM-M72-NF
Order number
306301872
Resolution
28416 × 21280
Frame rate
1.45 fps @ 28416 × 21280 Mono 8
Interface
CoaXPress with DIN interface
Pixel size
3.76 μm × 3.76 μm

Hikrobot MV-CH6040-10XM-M72-NF is an industrial machine-vision camera for inspection, measurement and positioning in automated production.

Key features

✓Resolution of 28416 × 21280, pixel size of 3.76 µm × 3.76 µm.
✓Adopts ISP algorithm to improve image quality.
✓Adopts rolling shutter CMOS sensor to provide high dynamic range.
✓Supports FFC correction, LSC correction, and 16-bit ADC output.
✓Adopts CXP-6 interface to transmit data.
✓Compatible with CoaXPress Protocol and GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, rolling shutter
Sensor modelSony® IMX411
Pixel size3.76 μm × 3.76 μm
Sensor size66.7 mm
Resolution28416 × 21280
Max. frame rate1.45 fps @ 28416 × 21280 Mono 8
Dynamic range78.7 dB
SNR46.4 dB
Gain0 dB to 40 dB
Exposure time15 μs to 1 sec (604 MP)
Off/Once/Continuous exposure mode, supports Rolling and Global Reset
Mono/colorMono
Pixel formatMono 8/10/12/16
Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationNot support
Reverse imageSupports horizontal reverse image output
Electrical features
Data interfaceCoaXPress with DIN interface
12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
Power supply24 VDC
Power consumptionTyp. 15 W @ 24 VDC
Mechanical
100 mm × 100 mm × 128.5 mm (3.9" × 3.9" × 5.1")
WeightApprox. 1.4 kg (3.1 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
Performance temperature: 20 °C to 35 °C (68 °F to 95 °F) Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareFrame grabber software meeting with CoaXPress Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11 with 16 GB memory or above
CompatibilityCoaXPress, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountM72*0.75, back focal length 19.55 mm
