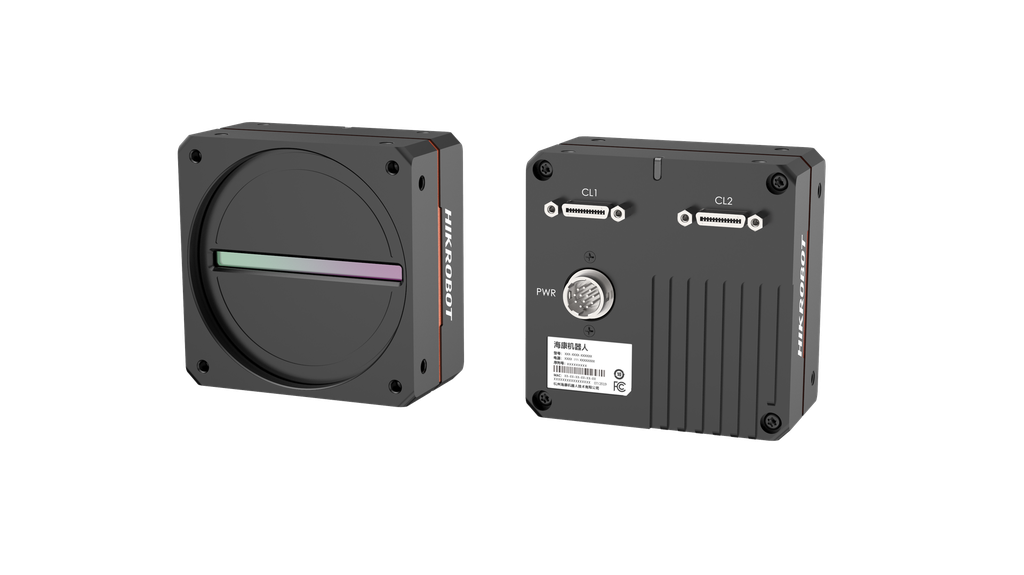

Hikrobot MV-CL162-91CM
CL Series line scan camera with M72*0.75, optical back focal length: 12 mm (0.5"), applicable to F-mount via lens adapter, 16384 × 2 Resolution, Mono, and with Camera Link (SDR connector); USB interface for updating firmware. CMOS sensor type.
The MV-CL162-91CM in the CL Series has a pixel size of 3.5 µm × 3.5 µm.
The max line rate in Full resolution: 10 kHz (Base), 20 kHz (Medium), 40 kHz (Full), 50 kHz (80-bit) Improve line rate via Binning: 71 kHz @1-line (full resolution), 60 kHz @2-TDI (full resolution) Improve line rate via ROI: 120 kHz @1-line (6820 resolution and below), 60 kHz @2-TDI (13650 resolution and below). The model is CE-certified.
The MV-CL162-91CM in the CL Series has a pixel size of 3.5 µm × 3.5 µm.
The max line rate in Full resolution: 10 kHz (Base), 20 kHz (Medium), 40 kHz (Full), 50 kHz (80-bit) Improve line rate via Binning: 71 kHz @1-line (full resolution), 60 kHz @2-TDI (full resolution) Improve line rate via ROI: 120 kHz @1-line (6820 resolution and below), 60 kHz @2-TDI (13650 resolution and below). The model is CE-certified.
