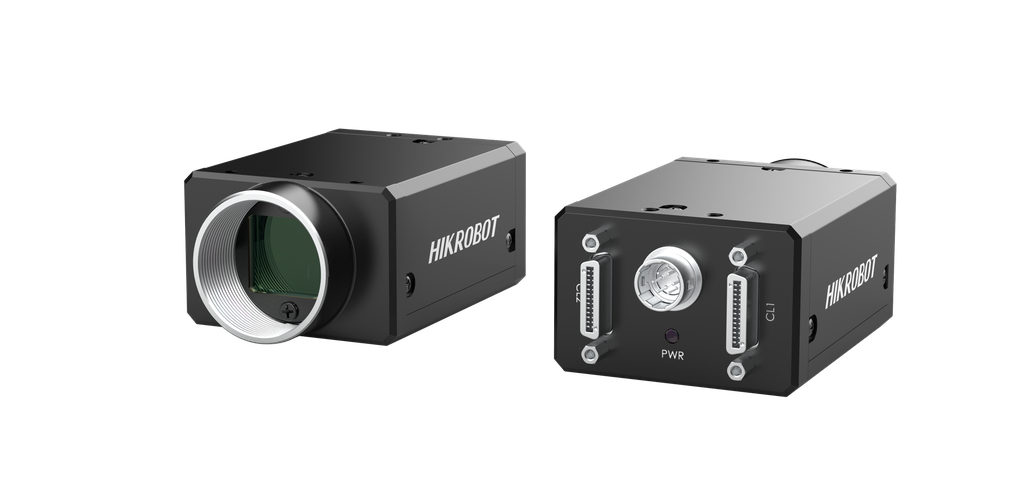

Hikrobot MV-CH040-A0CM

CH Area Scan Camera

Order code
MV-CH040-A0CM
Order number
306302196
Resolution
2048 × 2048
Frame rate
180 fps @2040 × 2048 Mono 8
Interface
Camera Link with SDR Connector
Pixel size
5.5 μm × 5.5 μm

Hikrobot MV-CH040-A0CM is an industrial machine-vision camera for inspection, measurement and positioning in automated production.

Key features

✓Supports auto or manual adjustment of gain, exposure time, Gamma correction, LUT, etc.
✓Supports customized ROI and horizontal and vertical reverse image output.
✓Supports hardware trigger, software trigger, free run, and supports triggering via Camera Link frame grabber.
✓Supports Base, Medium, Full, 80-bit configuration mode.
✓Compatible with Camera Link V2.0 Protocol and GenlCam Standard.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Pixel size5.5 μm × 5.5 μm
Sensor size
Resolution2048 × 2048
Max. frame rate180 fps @2040 × 2048 Mono 8
Configuration modeBase, Medium, Full, 80-bit
Tap geometry1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y
Tap number2 Taps, 4 Taps, 8 Taps, 10 Taps
Pixel clock40 MHz, 66 MHz, 80 MHz, 85 MHz
Dynamic range59.7 dB
SNR39.6 dB
Gain0 dB to 12 dB
Exposure time28 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/12
Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2
DecimationSupports 1 × 1, 1 × 2, 2 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interfaceCamera Link with SDR Connector
6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). Camera Link interface provides I/O (CC1/CC2/CC3/CC4)
Power supply9 VDC to 24 VDC, supports PoCL
Power consumptionTyp. 3.6 W@12 VDC
Mechanical
44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3")
WeightApprox. 100 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
Working temperature: -10 °C to 50 °C (14 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity20% to 95% RH, non-condensing
General
Client softwareMVS or frame grabber software meeting with GenlCam Protocol
Operating system32/64-bit Windows XP/7/10, 64-bit Windows 11
CompatibilityCamera Link V2.0, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountC-mount
