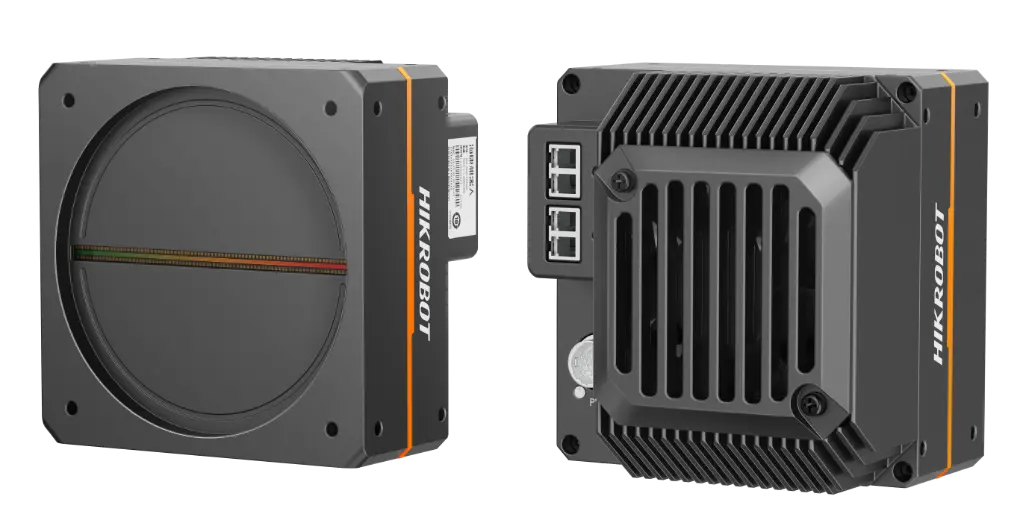

Hikrobot MV-CL166-91F2C

CL Line Scan Camera

Order code
MV-CL166-91F2C
Order number
306302344
Resolution
16384 × 12
Interface
2LC fiber connector
Pixel size
5 μm × 5 μm

Hikrobot MV-CL166-91F2C is an industrial machine-vision camera for inspection, measurement and positioning in automated production.

Key features

✓Adopts multiple ISP like Gamma correction, flat field correction, LUT, black level offset, noise reduction, etc.
✓Supports RGB true color, multiple exposure and acquisition methods.
✓Supports image mode of 1-line, 2-TDI, 3-TDI, and 4-TDI.
✓Supports transmission protocol of XoFLink with max. line rate of 47.3 kHz.
✓Adopts bi-directional configurable I/O hardware design.
✓Compact design and flexible installation.

Applications & Industries

What you can solve with this product:

Typical industries: Printing
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS
Pixel size5 μm × 5 μm
Resolution16384 × 12
Image modeSupports 1-Line, 2-TDI, 3-TDI, 4-TDI
47.3 kHz (1-Line), 45.3 kHz (2-TDI), 30.6 kHz (3-TDI), 23.1 kHz (4-TDI)
Dynamic range69.3 dB
SNR41.4 dB
Gain1.0 ×
Exposure time3 μs to 10 ms
Off/Once/Continuous exposure mode, and supports trigger-width exposure
MonoColor
Pixel formatRGB 8, BGR 8
Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal reverse image output
Trigger modeExternal trigger, internal trigger
External trigger modeLine trigger, frame trigger, line + frame trigger
Electrical feature
Data interface2LC fiber connector
12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported.
Power supply24 VDC
Power consumptionTyp. 22.5 W @ 24 VDC
Mechanical
M90*1.0, flange back length 12 mm, applicable to F-mount via lens adapter
99 mm × 99 mm × 83.4 mm (3.9" × 3.9" × 3.3")
WeightApprox. 923 g (2.0 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
Working temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity5% RH to 90% RH (no condensation)
General
Client software
Operating system32/64-bit Windows 7/10, 64-bit Windows 11
CompatibilityXoFLink, GenlCam
CertificationCE, RoHS, KC
