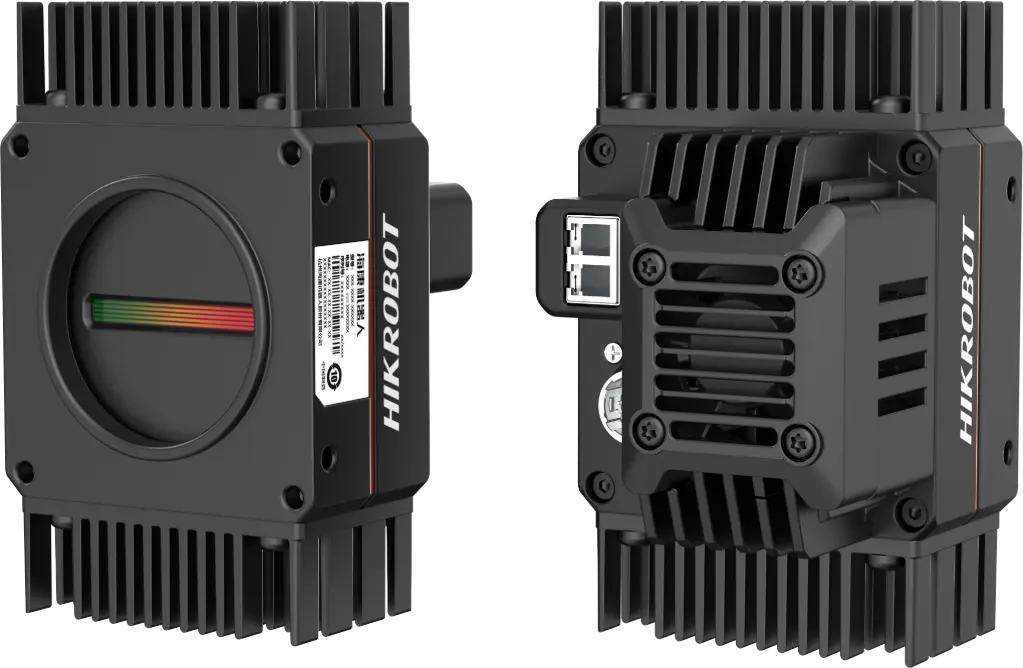

Hikrobot MV-CL042-91FC

CL Line Scan Camera

Order code
MV-CL042-91FC
Order number
306302453
Resolution
4096 × 2
Interface
LC fiber connector
Pixel size
7 μm × 7 μm

Hikrobot MV-CL042-91FC is an industrial machine-vision camera for inspection, measurement and positioning in automated production.

Key features

✓Adopts multiple ISP like Gamma correction, flat field correction, LUT, black level offset, etc.
✓Provides one XoF fiber port with 10 GB bandwidth.
✓Supports multiple exposure and acquisition methods with max. line rate of 100 kHz.
✓Adopts bi-directional configurable I/O hardware design.
✓Compact design and flexible installation.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsNew energyTextile
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS
Pixel size7 μm × 7 μm
Resolution4096 × 2
Image modeSupports 1-Line
Standard mode: 98 kHz @ RGB 8/BGR 8, 100 kHz @ Mono 8/10/12/Bayer RG 8/10/12/Bayer RBGG 8 Line rate after ROI: 100 kHz
Dynamic range65.6 dB
SNR40 dB
1.0 ×, 1.4 ×, 1.6 ×, 2.4 ×, 3.2 ×
Exposure time3 μs to 10 ms
Exposure modeOff/Once/Continuous exposure mode
MonoColor
Bayer RG 8/10/12, Bayer RBGG 8, RGB 8, BGR 8, Mono 8/10/12
Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal reverse image output
Trigger modeExternal trigger, internal trigger
External trigger modeLine trigger, frame trigger, line + frame trigger
Electrical feature
Data interfaceLC fiber connector
12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported.
Power supply12 VDC to 24 VDC
Power consumptionTyp. 9 W @ 12 VDC
Mechanical
M42*1.0, flange back length 12 mm, applicable to F-mount via lens adapter
101.2 mm × 62 mm × 70.7 mm (4.0" × 2.4" × 2.8")
WeightApprox. 300 g (0.7 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
Working temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity5% to 90% RH, non-condensing
General
Client software
Operating system32/64-bit Windows 7/10, 64-bit Windows 11
CompatibilityXoFLink, GenlCam
CertificationCE, RoHS, KC
