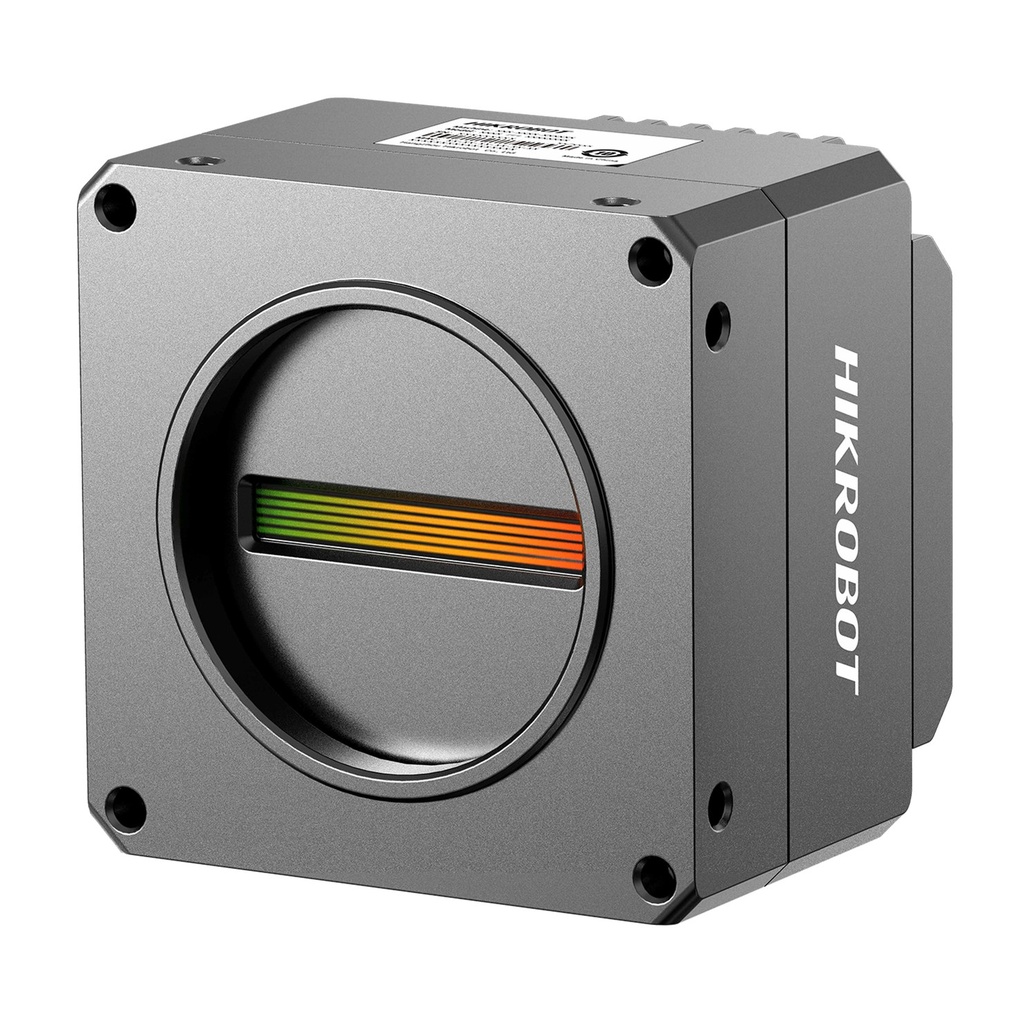

Hikrobot MV-CL044-91NM

CL Line Scan Camera

Order code
MV-CL044-91NM
Order number
306302877
Resolution
4096 × 4
Pixel size
7 μm × 7 μm

Hikrobot MV-CL044-91NM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts 2.5 GigE interface to transmit data, and supports max. line rate of 75.3 kHz and peak value of 160 kHz.
✓Supports image modes of 1-Line, 2-TDI, and 4-TDI.
✓Supports ISP image functions and manual adjustment of Gamma correction, FFC, LUT, black level, etc.
✓Adopts bi-directional I/O hardware design.
✓Compact design and flexible installation.
✓Compatible with GigE Vision V2.0 and GenlCam standard.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsNew energyTextileMedical
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS
Pixel size7 μm × 7 μm
Resolution4096 × 4
Image modeSupports 1-Line, 2-TDI, 4-TDI
Full resolution: 75.3 kHz @ Mono 8 (1-Line, 2-TDI), 40 kHz @ Mono 8 (4-TDI), 37.6 kHz @ Mono 10/12 (1-Line, 2-TDI, 4-TDI) Line rate after ROI: Max. 160 kHz @ Mono 8 & 1-Line (1928 P and below)
Dynamic range60.9 dB
SNR40.5 dB
1.0 ×, 2.0 ×, 3.0 ×, 4.0 ×
Exposure time1 μs to 10 ms
Off/Once/Continuous exposure mode, and supports trigger-width exposure
MonoMono
Pixel formatMono 8/10/12
Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal reverse image output
Trigger modeExternal trigger, internal trigger
External trigger modeLine trigger, frame trigger, line + frame trigger
Electrical feature
2.5 Gigabit Ethernet (2500 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) and Fast Ethernet (100 Mbit/s)
12-pin P10 connector provides power and I/O: bi-directional configurable I/O × 4 (Line 0/1/3/4) and support single-ended/differential I/O signal
Power supply12 VDC to 24 VDC, supports PoE
Power consumptionTyp. 7.3 W @ 12 VDC
Mechanical
M42*1.0, flange back length 12 mm Connecting to F-mount, C-mount, and other lenses via adapter ring
62 mm × 62 mm × 46.1 mm (2.4" × 2.4" × 1.8")
WeightApprox. 260 g (0.6 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
Working temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 80% RH (no condensation)
General
Client softwareMVS or the third-party software meeting with GigE Vision protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11 and 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
