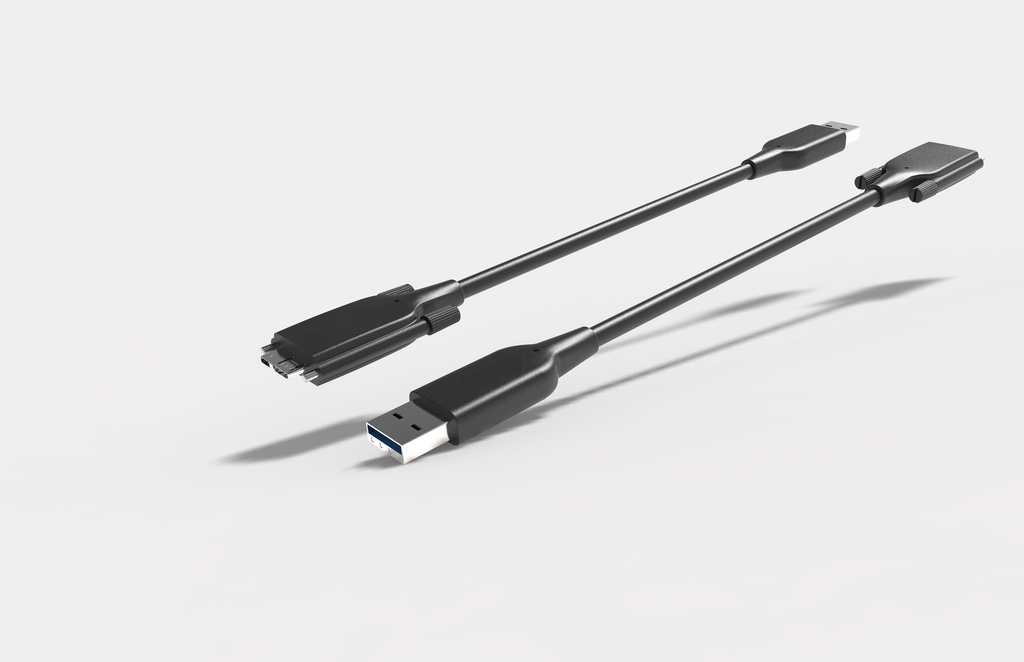

Hikrobot MV-ACU3-MBMs-AM-SF-15m

Hikrobot Super Flexible USB3.0 Cable. USB3.0 AOC Optical Fiber Cable，USB3.0 to Micro BM，15m，Super Flexible，Black，static/moveable/mechanical arm
586,08 € 586,08 €
kr 4.380,80
(eksklusiv moms)
Kontakt os
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-ACU3-MBMs-AM-SF-15m

Cable

Order code
MV-ACU3-MBMs-AM-SF-15m
Order number
310100894

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Key features

✓The USB3.0 Super Flex Data Cable can be used for data transmission and power supply of USB3.0 interface cameras, and is available in a variety of lengths.

Specifications

Physical specifications
End A connectorMicro-B male (with screw)
End B connectorA male
Cable diameter4.8 mm
Length15 m
Cable mechanical(1P*26#+ADBMP)2C+1P*26#+1P*24#+FPB
JacketNitrile PVC
Cable colorBlack
Connector durability5,000 cycles
Min. bending radius57.6 mm
Applicable scenarioStatic scenes/tank chain
Max. U-type bending cycles10 million times
Max. ±90° bending cycles5 million times
Electrical features
Max. voltage5 VDC
Additional information
Working temperature-20°C~ 80°C
CertificationRoHS
PackagingIndividual package
