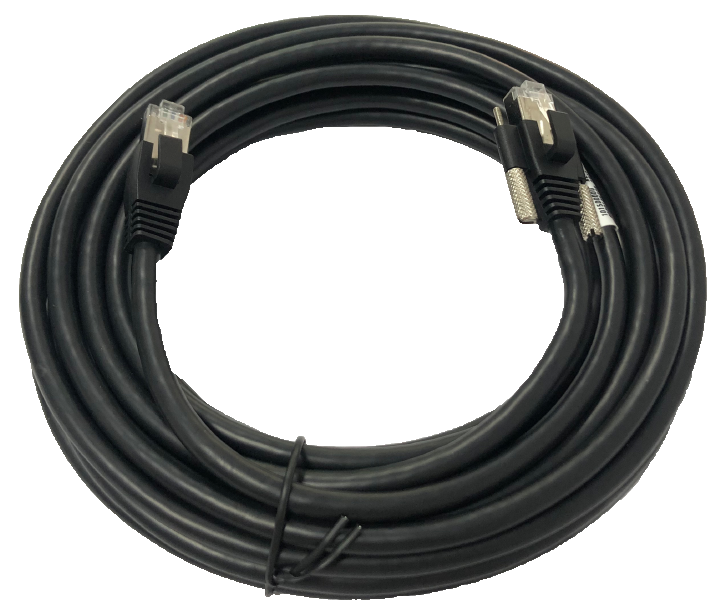

MV-ACG-RJ45s-RJ45-SF-15m

Hikrobot MV-ACG-RJ45s-RJ45-SF-15m — Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals. Genuine product, supplied by ZTEC.

248,29 € 248,29 €
kr 1.856,16
(eksklusiv moms)
Kontakt os
Documents
MV-ACG-RJ45s-RJ45-SF-15m - Datasheet.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-ACG-RJ45s-RJ45-SF-15m

Cables

Order code
MV-ACG-RJ45s-RJ45-SF-15m
Order number
Hikrobot 310101131

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Key features

✓The RJ45 Super Flex Gigabit Ethernet Cable can be used for data transmission of RJ45 Gigabit Ethernet interface cameras, and is available in a variety of lengths.

Specifications

Specifications
End A connectorRJ45 (with locking stud)
End B connectorRJ45
Cable diameter6.5 mm
Length15 m
Cable mechanical4P*26#+AB
JacketPVC
Cable colorBlack
Connector durability≥750 cycles
Min. bending radius78 mm
Applicable scenarioTank chain,Robot arm
Max. U-type bending cycles10 million times
Max. ±90° bending cycles5 million times
Max. ±180° torsional cycles3 million times
Max. voltage30 VDC
Working temperature-20°C~ 75°C
CertificationRoHS2.0,UL
PackagingIndividual package

Downloads

Datasheets, drawings and manuals — all in one place.

MV-ACG-RJ45s-RJ45-SF-15m - Datasheet.pdfPDF · 885.4 KB
