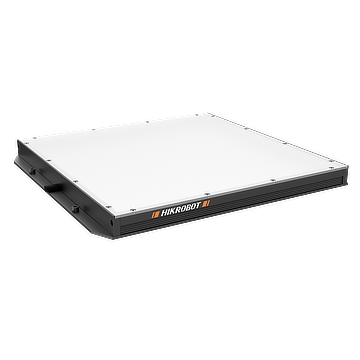

Hikrobot MV-LBES-H-250-250-W

Hik Light Source

Order code
MV-LBES-H-250-250-W
Order number
310101618

Hikrobot MV-LBES-H-250-250-W is industrial machine-vision lighting for stable, uniform illumination and reliable image quality, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts high-density array LED design.
✓Adopts middle opening design (circular hole/square hole) to achieve front lighting.
✓Provides side mounting lugs to achieve flexible installation.

Applications & Industries

What you can solve with this product:

Typical industries: Printing
Stable, uniform illumination
Stable, uniform illumination for reliable image quality
Highlighting edges, grooves, print and defects
Highlighting edges, grooves, print and defects
Reducing reflections and shadows
Reducing reflections and shadows

Specifications

Performance
Wavelength
Color temperature6000 ~ 7000K
Mechanical
Cable length1 m
Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity20% RH to 90% RH (no condensation)
Diffuse plate includedIncluded
Additional specifications
ColorWhite
Center illuminance/irradiance≥ 28000 lux@200 mm
Power59 W
Connector typeSMR-03V-B
Dimension282 mm × 263 mm × 19 mm
Emitting area dimension250 mm × 250 mm
Bore dimensionΦ50 mm
Weight1.1 kg

Downloads

Datasheets, drawings and manuals — all in one place.

MV-LBES-H-250-250-W - Datasheet.pdfPDF · 1.4 MB
MV-LBES-H-250-250-W - Drawing.pdfPDF · 6.3 MB
