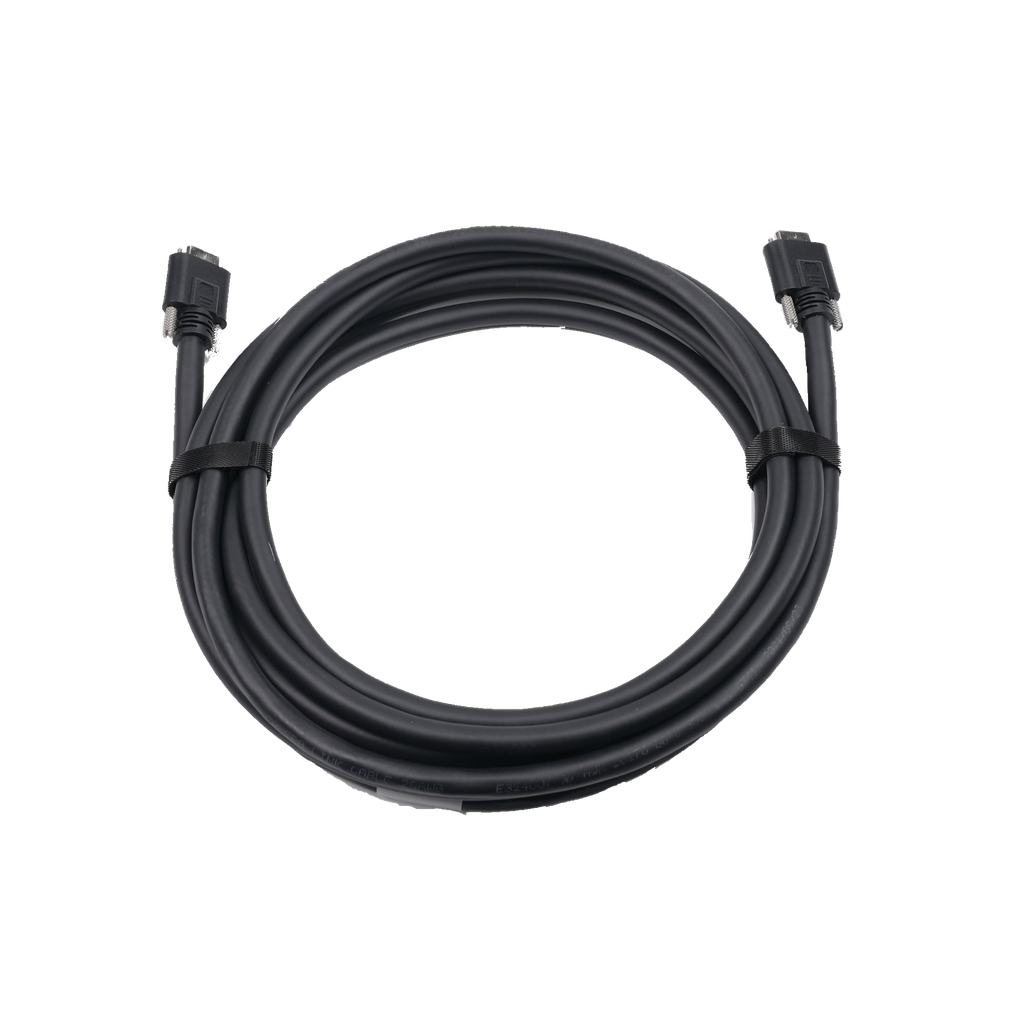

Hikrobot MV-ACCL-SDR-SDR-ST-3m

Hikrobot MV-ACCL-SDR-SDR-ST-3m

Hikrobot CameraLink Cable（SDR to SDR）. Standard Camera Link Cable, S2S, Straight, 3m, static
221,43 € 221,43 €
kr 1.655,07
(eksklusiv moms)
Kontakt os
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-ACCL-SDR-SDR-ST-3m

Cable

Order code
MV-ACCL-SDR-SDR-ST-3m
Order number
310101624

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Key features

✓The Camera Link Standard Data Cable can be used for data transmission of Camera Link interface cameras, and is available in a variety of lengths.

Specifications

Specifications
End A connector
End B connector
Cable diameter9.5 mm
Length3 m
Cable mechanical(28AWG*1P+AL)*11C+28AWG*2C+MY+AL+B, UL20276
JacketPVC
Cable colorBlack
Connector durability≥500 cycles
Min. bending radius114 mm
Applicable scenarioStatic scenes
Max. voltage30 VDC
Working temperature-20°C~80°C
CertificationRoHS,UL
PackagingIndividual package
