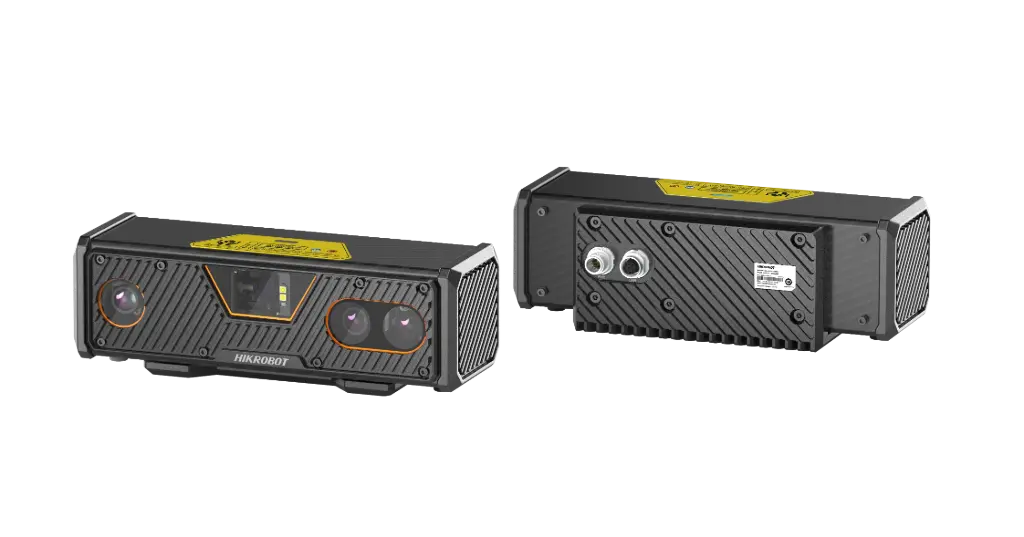

Hikrobot MV-DLS300P-04 - Package
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-DLS300P-04

3D Stereo Camera

Order code
MV-DLS300P-04
Order number
306400344

Hikrobot MV-DLS300P-04 is a 3D vision camera for measurement, positioning and robot guidance in automated processes, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Applications & Industries

What you can solve with this product:

3D measurement and positioning
3D measurement and positioning in automated processes
Robot bin-picking and part localization
Robot bin-picking and part localization
Volume, height and co-planarity control
Volume, height and co-planarity control
Assembly completeness checks
Assembly completeness checks

Specifications

Performance
Near field of view280 mm × 220 mm @ 400 mm
Typical field of view480 mm × 320 mm @ 600 mm
Far field of view620 mm × 440 mm @ 800 mm
Clearance distance (CD)400 mm
Measurement range (MR)400 mm
Repeatability (Z-axis)*10.03 mm @ 600 mm
VDI/VDE accuracy*20.05 mm @ 600 mm
ResolutionRGB: 3200 × 1944 Depth: 1632 × 1080
Data acquisition time0.4 s to 0.9 s
Image output delay0.8 s to 1.5 s
Data typeOriginal image (mono and color images), depth image, RGB-D image
Electrical feature
Data interfaceGigabit Ethernet (1000 Mbit/s)
Digital I/O12-pin M12 interface provides power and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7)
Power supply24 VDC
Power consumptionTyp. 15 W @ 24 VDC
Mechanical
Dimension236.3 mm × 79.8 mm × 98.5 mm (9.3" × 3.1" × 3.9")
WeightApprox. 1.3 kg (2.9 lb.)
Ingress protectionIP65
TemperatureWorking temperature: 0 °C to 45 °C (32 °F to 113 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 85% RH (no condensation)
Laser
Laser safety classClass 2
Wavelength450 nm
General
Client softwareRobotPilot, HiViewer
Operating system32/64-bit Windows 7/10, 64-bit Windows 11
CertificationRoHS, CE
