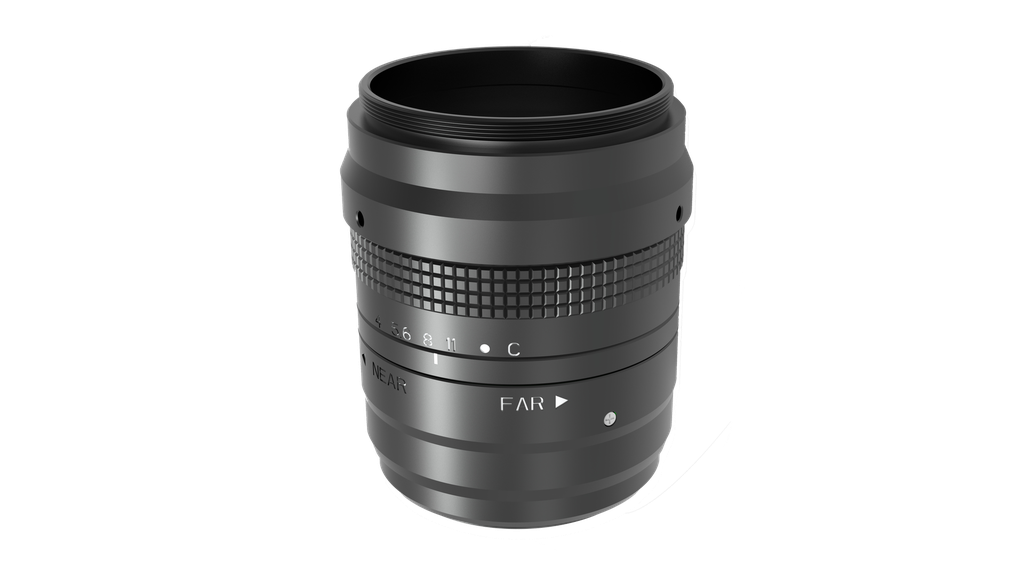

Hikrobot MVL-AF2840M-M42
607,81 €
607,81 €
kr 4.543,61
(eksklusiv moms)
OFFICIAL HIKROBOT PARTNERCE · EU compliant
Hikrobot MVL-AF2840M-M42
FA Lens
Order code
MVL-AF2840M-M42
Order number
310100756
Working distance
103 mm to 595 mm
Focal length
28 mm
Hikrobot MVL-AF2840M-M42 is an industrial machine-vision lens — sharp, low-distortion imaging for inspection and measurement.
Key features
✓Provides excellent consistency of image clarity.
✓Provides low distortion.
✓Provides max. image size Ø30 mm for APS-C area scan and 4k 7 μm line scan cameras.
Applications & Industries
What you can solve with this product:
Typical industries: PackagingPrinting
Specifications
Performance
Focal length28 mm
F-numberF4.0 to F11
Image sizeØ30 mm
Optical distortion
Magnification range0.3x to 0.05x
Working distance range103 mm to 595 mm
Mechanical
Iris controlManual
Focus controlManual
Filter threadM35 × 0.5
MountM42 × P1
Flange back length12 mm
DimensionØ48.1 mm × 54.9 mm (Ø1.9" × 2.2")
Weight162 g (0.4 Ib.)
Temperature–10 °C to 50 °C (14 °F to 122 °F)
General
CertificationRoHS 2.0
