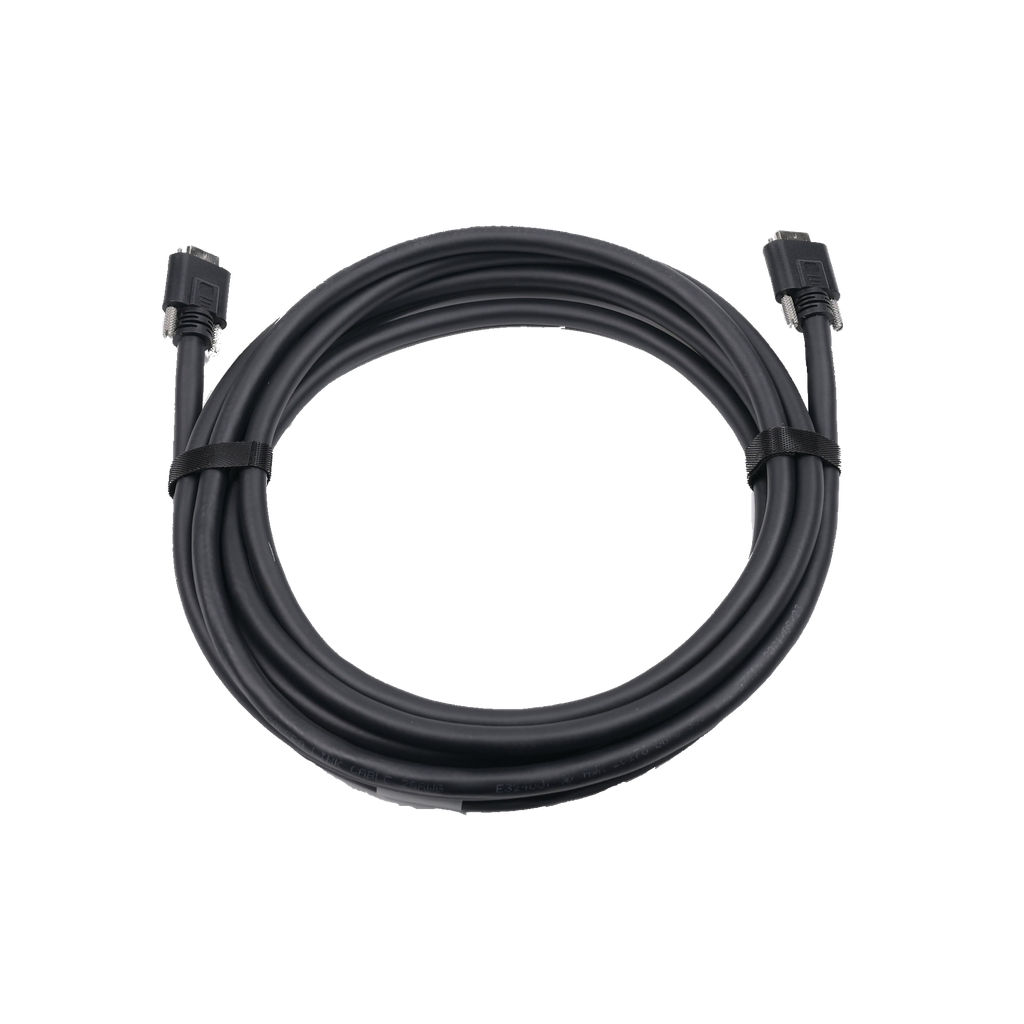

Hikrobot MV-ACCL-SDR-SDR-HF-7m

Hikrobot MV-ACCL-SDR-SDR-HF-7m

Hikrobot CameraLink Cable（SDR to SDR）. Flexible Camera Link Cable, S2S, Straight, 7m, moveable
507,94 € 507,94 €
kr 3.796,68
(eksklusiv moms)
Kontakt os
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-ACCL-SDR-SDR-HF-7m

Cable

Order code
MV-ACCL-SDR-SDR-HF-7m
Order number
310100989

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Key features

✓The Camera Link Flex Data Cable can be used for data transmission of Camera Link interface cameras, and is available in a variety of lengths.

Specifications

Specifications
End A connectorSDR26
End B connectorSDR26
Cable diameter9.5 mm
Length7 m
Cable mechanicalUL20276
JacketPVC
Cable colorBlack
Connector modelmade in China
Connector durability≥500 cycles
Min. bending radius114 mm
Applicable scenarioDrag chain
Max. U-type bending cycles5 million times
Max. voltage30 VDC
Working temperature-20°C~80°C
Certification
PackagingIndividual package
