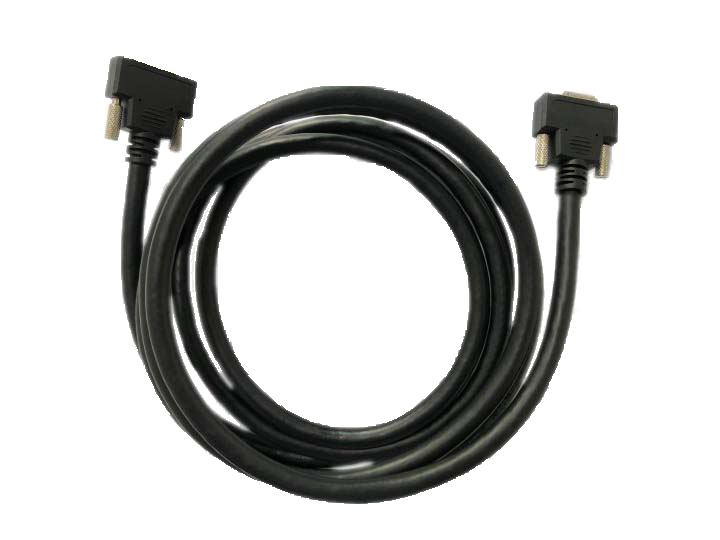

Hikrobot MV-ACCL-MDR-MDR-HF-5m

Hikrobot MV-ACCL-MDR-MDR-HF-5m

Hikrobot Camera Link Cable（MDR to MDR）. Flexible Camera Link Cable, M2M, Straight, 5m, moveable
382,04 € 382,04 €
kr 2.855,67
(eksklusiv moms)
Kontakt os
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-ACCL-MDR-MDR-HF-5m

Cable

Order code
MV-ACCL-MDR-MDR-HF-5m
Order number
310100995

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Key features

✓The Camera Link Flex Data Cable can be used for data transmission of Camera Link interface cameras, and is available in a variety of lengths.

Specifications

Specifications
End A connectorMDR26
End B connectorMDR26
Cable diameter9.5 mm
Length5 m
Cable mechanicalUL20276
JacketPVC
Cable colorBlack
Connector modelmade in China
Connector durability≥500 cycles
Min. bending radius114 mm
Applicable scenarioDrag chain
Max. U-type bending cycles5 million times
Max. voltage30 VDC
Working temperature-20°C~80°C
Certification
PackagingIndividual package
