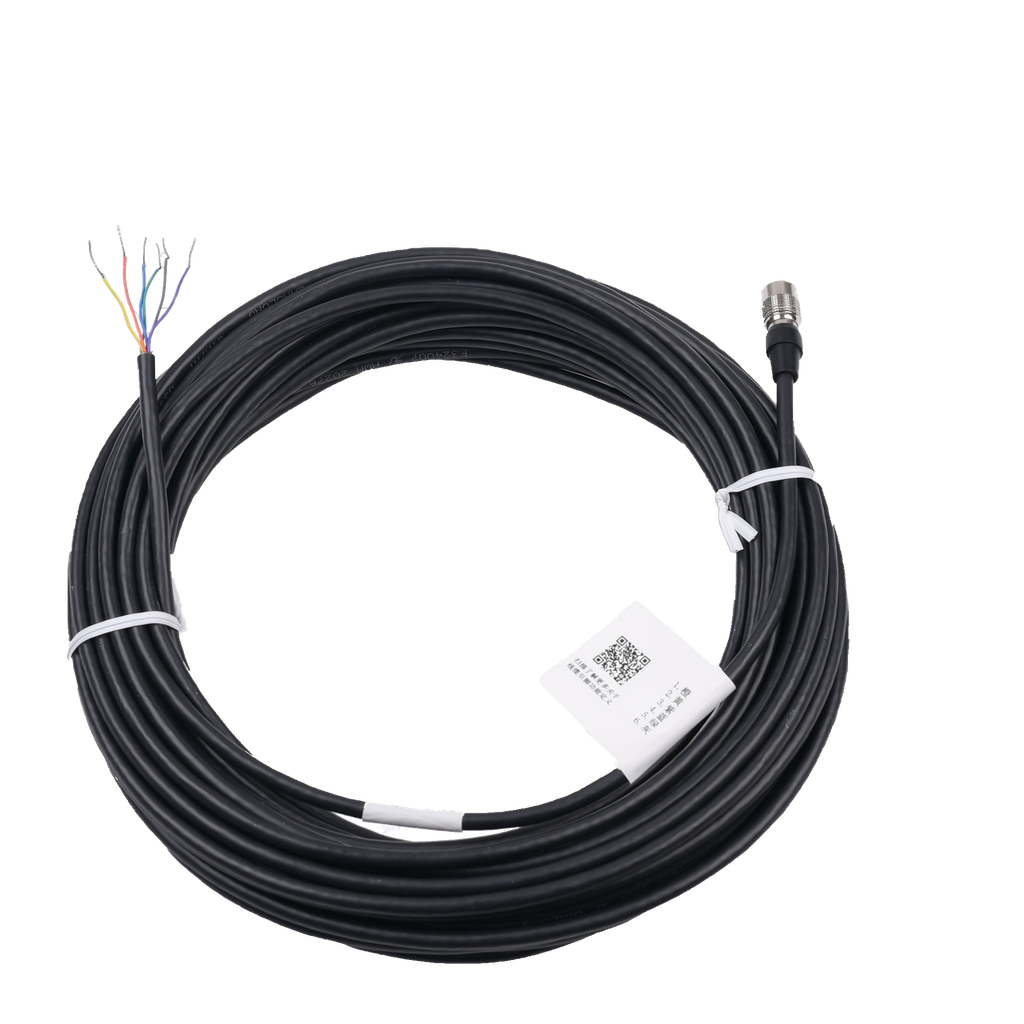

Hikrobot MV-ACP-H6p-open-HF-7m

Hikrobot MV-ACP-H6p-open-HF-7m

Hikrobot Flexible 6-Pin Power/IO Cables. Hirose 6pin Flexible，HR10A-7P-6S to Open，7m，Black，static/moveable
160,62 € 160,62 €
kr 1.200,60
(eksklusiv moms)
Kontakt os
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-ACP-H6p-open-HF-7m

Cable

Order code
MV-ACP-H6p-open-HF-7m
Order number
310100831

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Key features

✓The 6-pin P7 High Flex Power&I/O Cable can be used to power the camera, I/O signal wiring, and is available in a variety of lengths.

Specifications

Specifications
Length7 m
JacketPVC
Cable colorBlack
Connector durability≥ 750 cycles
Additional specifications
End A connectorP7 6-pin,Femal,Black insulator,Solder type
End B connectorOpen
Cable diameter5.5 mm
Cable mechanical2P*28AWG+2C*23AWG+AB
Connector modelmade in China
Min. bending radius66 mm
Applicable scenarioTank chain
Max. U-type bending cycles≥ 5 million times
Max. ±90° bending cycles≥ 3 million times
Max. ±180° torsional cycles≥ 5 million times
Max. voltage30 VDC
Working temperature-20°C~80°C
CertificationRoHS2.0
PackagingIndividual package
