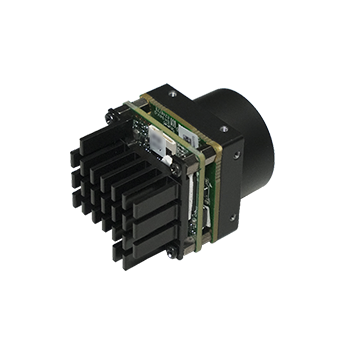

Hikrobot MV-CB050-11UC-C

CB Board Level Camera

Order code
MV-CB050-11UC-C
Order number
306301900
Resolution
2448 × 2048
Frame rate
60 fps @ 2448 × 2048
Interface
USB3.0, compatible with USB2.0
Pixel size
3.45 μm × 3.45 μm

Hikrobot MV-CB050-11UC-C is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓USB3.0 supports FPC connection to meet limited spatial requirements.
✓Supports senor and mainboard separation for complex spatial requirements.
✓Supports auto or manual adjustment for gain, exposure time, white balance, LUT, Gamma correction, etc.
✓Adopts image interpolation algorithm for color reproduction.
✓Compatible with USB3 Vision Protocol, GenlCam Standard, and third-party software based on protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelSony® IMX264
Pixel size3.45 μm × 3.45 μm
Sensor size2/3"
Resolution2448 × 2048
Max. frame rate60 fps @ 2448 × 2048
Dynamic range72 dB
SNR40.2 dB
Gain0 dB to 24 dB
UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
MonoColor
Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interfaceUSB3.0, compatible with USB2.0
Bi-directional non-isolated I/O × 2 (Line 2, Line 5)
Power supply5 VDC (USB3.0 provides power supply)
Power consumptionTyp. 2.8 W @ 5 VDC (USB3.0 provides power supply)
Mechanical
Lens mountC-mount
29 mm × 29 mm × 31.3 mm (1.1" × 1.1" × 1.2")
WeightApprox. 37 g (0.08 lb.)
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 80% RH (no condensation)
General
Client softwareMVS or third-party software meeting with USB3 Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityUSB3 Vision, GenlCam
CertificationCE, RoHS, KC
