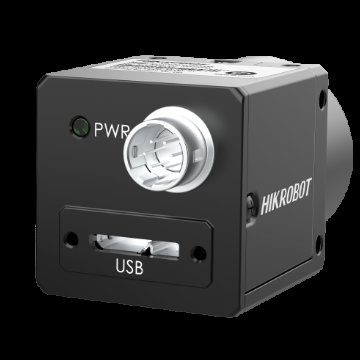

Hikrobot MV-CS050-10UC

Hikrobot MV-CS050-10UC — MV-CS050-10UM/UC camera adopts Sony® IMX264 sensor to  Mono camera: MV-CS050-10UM provide high-quality images. It uses USB3.0 interface to transmit  Color camera: MV-CS050-10UC non-compressed images in real time, and its max. frame rate can Applicable. Originalt produkt, leveret af ZTEC.

1.380,98 € 1.380,98 €
kr 10.323,96
(eksklusiv moms)
Kontakt os
Documents
MV-CS050-10UC - CAD (RAR).rar MV-CS050-10UC - Datasheet.pdf MV-CS050-10UC - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CS050-10UC

CS Area Scan Camera

Order code
MV-CS050-10UC
Order number
306301968
Resolution
2448 × 2048
Frame rate
60 fps @2448 × 2048 Bayer RG 8
Interface
USB3.0, compatible with USB2.0
Pixel size
3.45 μm × 3.45 μm

Hikrobot MV-CS050-10UC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts brand new design to reduce power consumption.
✓Supports LSC, Sequencer, Super Palette, etc.
✓Supports hardware trigger, software trigger, and free run.
✓Compact design with mounting holes on panels for flexible mounting from 4 sides.
✓Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelSony® IMX264
Pixel size3.45 μm × 3.45 μm
Sensor size2/3"
Resolution2448 × 2048
Max. frame rate60 fps @2448 × 2048 Bayer RG 8
Dynamic range71 dB
SNR40 dB
Gain0 dB to 24 dB
UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
MonoColor
Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed, YUV422_YUYV_Packed, YUV 422 Packed, RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceUSB3.0, compatible with USB2.0
6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports USB3.0 power supply
Power consumptionTyp. 2.8 W@5 VDC (USB3.0 provides power supply)
Mechanical
Lens mountC-mount
29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
WeightApprox. 80 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with USB3.0 Vision Protocol
Operating system32/64-bit Windows 7/10, 32/64-bit Linux
CompatibilityUSB3 Vision, GenlCam
CertificationCE, KC, RoHS
