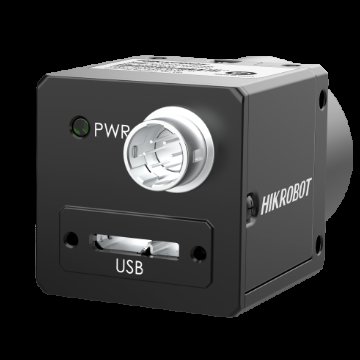

Hikrobot MV-CS020-10UM

Hikrobot MV-CS020-10UM — MV-CS020-10UM/UC camera adopts Sony® IMX430 sensor to  Mono camera: MV-CS020-10UM provide high-quality images. It uses USB 3.0 interface to transmit  Color camera: MV-CS020-10UC images in real time, and its max. frame rate can reach 90 fps in full Applicable. Originalt produkt, leveret af ZTEC.

1.000,77 € 1.000,77 €
kr 7.481,52
(eksklusiv moms)
Kontakt os
Documents
MV-CS020-10UM - CAD (RAR).rar MV-CS020-10UM - Datasheet.pdf MV-CS020-10UM - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CS020-10UM

CS Area Scan Camera

Order code
MV-CS020-10UM
Order number
306302076
Resolution
1624 × 1240
Frame rate
90 fps @ 1624 × 1240 Mono 8
Interface
USB 3.0, compatible with USB 2.0
Pixel size
4.5 μm × 4.5 μm

Hikrobot MV-CS020-10UM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts brand new design to reduce power consumption.
✓Supports sequencer, passive transmission, etc.
✓Color camera supports white balance, CCM, Super Palette, Super Bayer, etc.
✓Supports hard trigger, software trigger, free run, etc.
✓Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelSony® IMX430
Pixel size4.5 μm × 4.5 μm
Sensor size1/1.7"
Resolution1624 × 1240
Max. frame rate90 fps @ 1624 × 1240 Mono 8
Dynamic range71.5 dB
SNR43.7 dB
Gain0 dB to 24 dB
UltraShort exposure mode: 1 μs to 5 μs Standard exposure mode: 6 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceUSB 3.0, compatible with USB 2.0
6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports USB power supply
Power consumptionTyp. 2.3 W @ 5 VDC (USB 3.0 provides power supply)
Mechanical
Lens mountC-mount
29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
WeightApprox. 80 g (0.18 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with USB 3.0 Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Window 11, and 32/64-bit Linux
CompatibilityUSB3 Vision, GenlCam
CertificationCE, RoHS, KC
Technical support
We help with selection, integration and operation
Officiel Hikrobot-partner
Genuine, CE-marked products with full warranty
Full range & fast quotes
We source the entire Hikrobot range, including special items
