LP210-01-FD11-0100

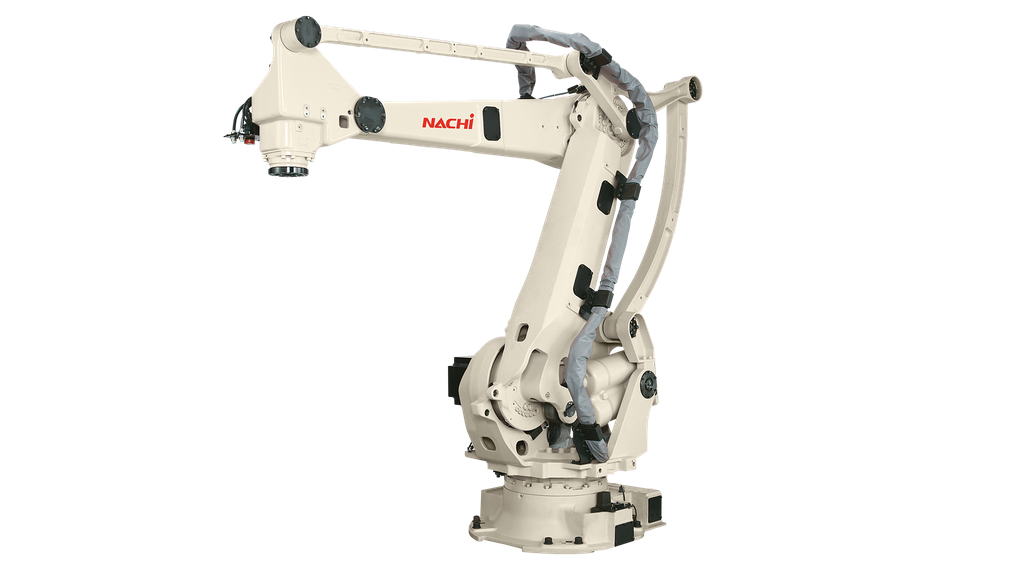

NACHI LP210 — A high-payload palletizing robot from NACHI's LP series, purpose-built for fast, reliable end-of-line palletizing and case handling. Supplied and supported by ZTEC.

46.789,95 € 46.789,95 €
kr 349.792,31
(eksklusiv moms)
  • Robot Type
  • Robot Løfteevne
  • Robot Rækkevidde
  • IP Beskyttelse
Kontakt os
Documents
NACHI LP210 - Brochure.pdf NACHI LP210 - Datasheet.pdf
OFFICIAL NACHI ROBOTICS PARTNERCE · EU compliant

NACHI LP210

Palletizing robot

Order code
LP210
Order number
NACHI LP210
Repeatability
±0.3 mm

NACHI LP210 is a high-payload palletizing robot from NACHI's LP series, purpose-built for fast, reliable end-of-line palletizing and case handling, supplied and supported by ZTEC as your NACHI robotics partner in the Nordics and Baltics.

Key features

✓The NACHI LP series is a family of high-payload palletizing robots, purpose-built for fast, reliable end-of-line palletizing, case and bag handling and layer building.

Applications & Industries

What you can solve with this product:

Palletizing and de-palletizing
Palletizing and de-palletizing
Case and bag handling
Case and bag handling
End-of-line packaging
End-of-line packaging
Layer and full-pallet building
Layer and full-pallet building

Specifications

Specifications
ConstructionArticulated construction
Degrees of freedom4
Drive systemAC servo system
Max. operating range±3.14 rad
Max. operating range — Wrist±6.28 rad
Max. speed1.83 rad/s
Max. speed — Wrist5.24 rad/s
Max. payload210 kg
Allowable static load torque of wrist2 100kgm
Position repeatability±0.3 mm
Air pressure-101.3 to 690 kPa
Air2-φ12×8 (to the wrist unit)
Application signals20 wires (to the wrist unit) 6 wires (to the fore arm)
InstallationFloor mounting
Ambient conditionsTemperature : 0 to 45 °C *3 Humidity : 20 to 85 %RH (No dew condensation is allowed) 2 Vibration to the installation face : Not more than 0.5G (4.9 m/s)
Robot mass1150 kg

Downloads

Datasheets, drawings and manuals — all in one place.

NACHI LP210 - Brochure.pdfPDF · 250.3 KB
NACHI LP210 - Datasheet.pdfPDF · 906.7 KB
Technical support
We help with selection, integration and operation
Official NACHI partner
Genuine, CE-marked NACHI robots with full support
Full range & fast quotes
We supply the full NACHI industrial-robot, cobot and palletiser range

Need advice or a quote?

ZTEC is your NACHI partner — we find the right configuration for your application.

Contact us

Specifications

Robot Specifications
Robot Type Palleteringsrobotter
Robot Løfteevne 210 kg
Robot Rækkevidde 3210 mm
Others
IP Beskyttelse IP54
