FT 25-RA-170-NSU-M4M (1. Gen.)
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

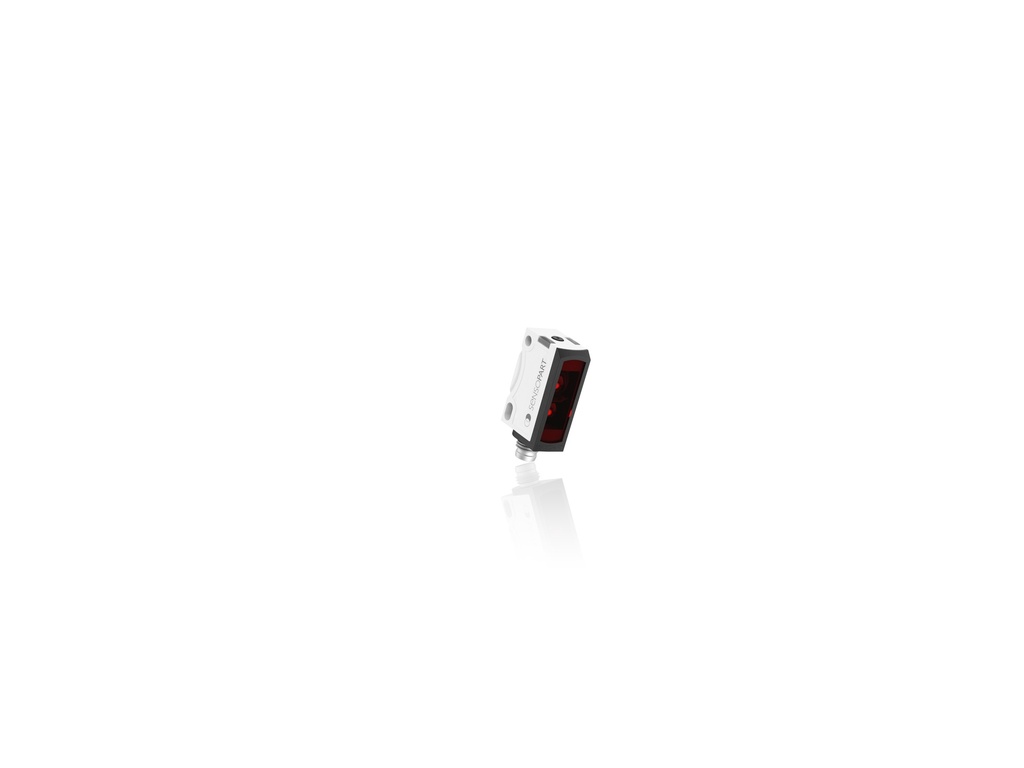

SensoPart FT 25-RA-170-NSU-M4M

An optical distance sensor for accurate, non-contact distance and position measurement

Order code
FT 25-RA-170-NSU-M4M
Order number
604-41003
SensoPart FT 25-RA-170-NSU-M4M
Repeatability
Reference material gray, 20% remission, under constant ambient conditions
Resolution
12-bit
Output
NPN
Protection
2

SensoPart FT 25-RA-170-NSU-M4M is an optical distance sensor for accurate, non-contact distance and position measurement, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Miniature housing with a scanning distance of up to 200 mm, for easy installation and high flexibility
✓High linearity and high repeatability for precise control tasks
✓Virtually surface-independent detection on homogeneous object surfaces
✓Invertible analogue characteristic curve
✓Switching window, for example for two-point control, can be set separately

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationLogisticsPackagingMachinery
Object and presence detection
Object and presence detection
Edge and fill-level monitoring
Edge and fill-level monitoring
Counting and positioning
Counting and positioning on the line
Label and mark detection
Label and mark detection

Specifications

Specifications
Explanation of the setting rangeReference material 5...90% remission
Explanation of resolution12-bit
Explanation of linearity± 2 mm, reference material gray, 20% remission
Explanation of repeatabilityReference material gray, 20% remission, under constant ambient conditions
Light sourceLED
Light colorRed
Explanation of switching frequencyti/tp 1:1
Display, LED yellowSwitching output indicator
Display, LED greenOperating voltage indicator
Analogue measurement range QA Invertible analogue characteristic curve Switching output Q (switching window) N.O. / N.C. via teach-in button
Analogue output QA (1...10 V): 30...200 mm Switching output Q, N.O. detection range: 30...200 mm
Measuring range adjustmentVia teach-in button
Reverse polarity protection
Short circuit protection
Analog output QA1 ... 10 V / max. 3 mA
Measured value outputAnalog (voltage)
Protection class
Output functionN.O./N.C.
Switching output Q
Number of outputs
Front panel material
Housing material
Explanation of operation at ambient air temperatureUL: -20 ... +50 °C
Explanation of protection classmit angeschlossenem IP 67 / IP 69 Stecker
Vibration and shock resistanceEN 60947-5-2
Connection nameMetal plug M8, 4-pin
- Number of pins
- ThreadM8x1
Housing typeCuboidal
