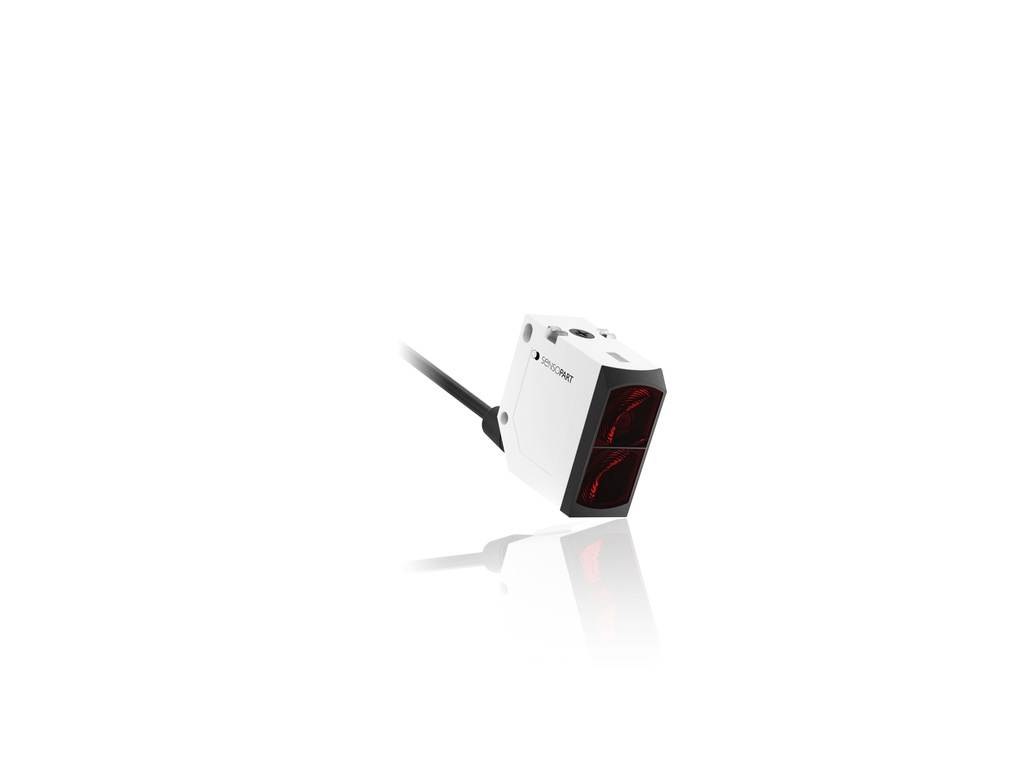

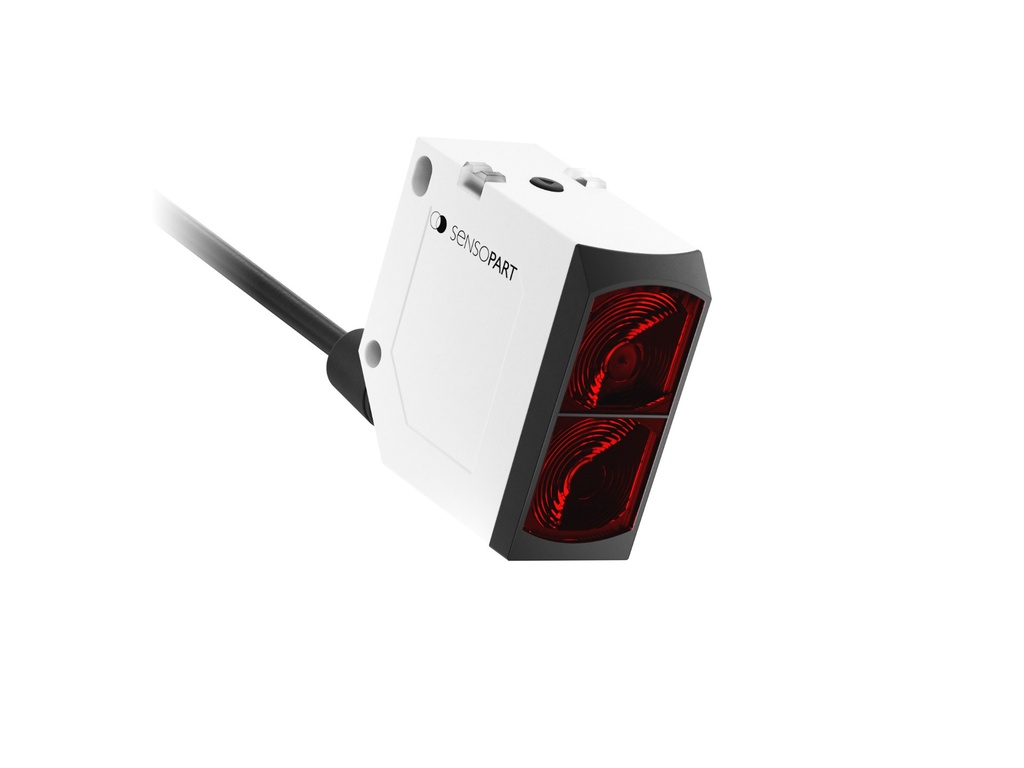

SensoPart FS 55-R-K4

A through-beam photoelectric sensor (emitter + receiver) for the longest ranges and reliable detection of small or fast-moving objects

Order code
FS 55-R-K4
Order number
620-11001
SensoPart FS 55-R-K4
Working distance
0
Connection
Cable, 4-wire, 3 m
Protection
IP69K, IP 67
Temp. range
-20 ... +60

SensoPart FS 55-R-K4 is a through-beam photoelectric sensor (emitter + receiver) for the longest ranges and reliable detection of small or fast-moving objects, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Alignment indicator and easily visible light spot for simple alignment of the through-beam system
✓Test input to check sensor pair function
✓Sensor adjustment via teach-in and control input
✓Plug and cable connection rotatable

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Working distance min. [mm]
Working distance max. [mm]
Light sourceLED, red
Electrical data
Velocity [Hz]500
Functions
AdjustmentTeach-in
Mechanical data
Enclosure ratingIP69K, IP 67
SeriesF55 (50 x 50,1 x 23 mm)
Temperature range [°C]-20 ... +60
Connection typeCable, 4-wire, 3 m
Additional specifications
Sensor principlePhotoelectric through-beam sensor
