SENSOPART FT 55-RLHP2-2PNSL-L5

SensoPart FT 55-RLHP2-2PNSL-L5 — Proximity switch with background suppression, time of flight measurement, 0...5m, laser, 2xAuto-Detect, N.O./N.C., teach-in, pl. Genuine product, supplied and supported by ZTEC.

372,94 € 372,94 €
kr 2.788,06
(eksklusiv moms)
Kontakt os
Documents
SENSOPART FT 55-RLHP2-2PNSL-L5 - Brochure 2.pdf SENSOPART FT 55-RLHP2-2PNSL-L5 - Brochure.pdf SENSOPART FT 55-RLHP2-2PNSL-L5 - CAD.zip SENSOPART FT 55-RLHP2-2PNSL-L5 - Datasheet 2.pdf SENSOPART FT 55-RLHP2-2PNSL-L5 - Datasheet.pdf SENSOPART FT 55-RLHP2-2PNSL-L5 - IODD.pdf SENSOPART FT 55-RLHP2-2PNSL-L5 - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart FT 55-RLHP2-2PNSL-L5

A photoelectric proximity sensor with background suppression — it detects an object at a defined range and reliably ignores whatever is behind it

Order code
FT 55-RLHP2-2PNSL-L5
Order number
623-11039
SensoPart FT 55-RLHP2-2PNSL-L5
Working distance
0
Output
PNP/NPN (auto detect)
Connection
Plug M12, 5-pin
Interface
IO-Link

SensoPart FT 55-RLHP2-2PNSL-L5 is a photoelectric proximity sensor with background suppression — it detects an object at a defined range and reliably ignores whatever is behind it, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓For detection tasks with all object surfaces at high scanning distances
✓Reliable object detection even with tilted objects and with bright, highly reflective or shiny backgrounds
✓Compact housing for an easy integration
✓Simple teach-in (also external)
✓Clearly visible laser light spot (laser class 1) for an easy alignment and full eye safety

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Sensor principlePhotoelectric diffuse sensor with Background Suppression

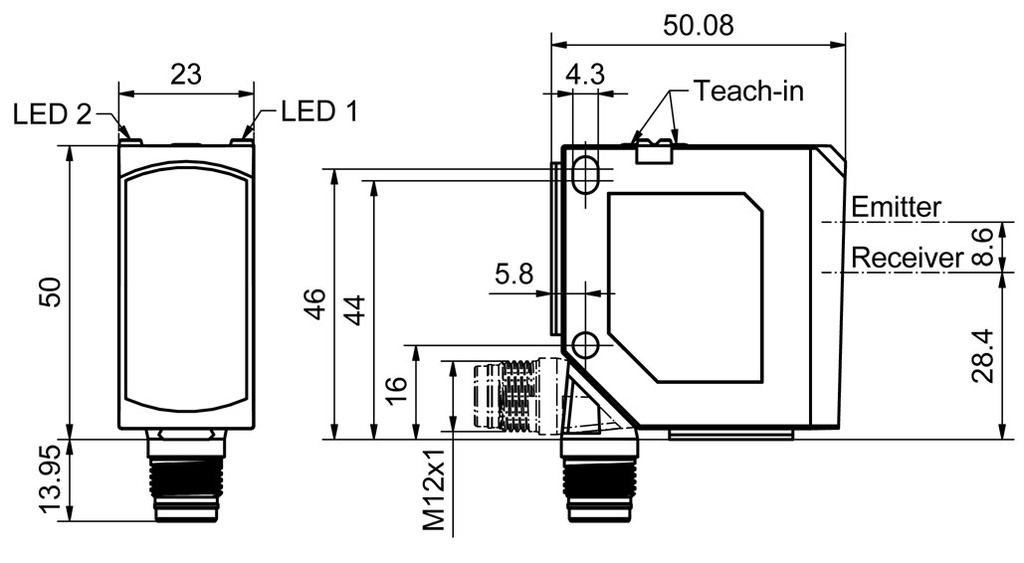

SeriesF55 (50 x 50,1 x 23 mm)
Working distance min. [mm]
Working distance max. [mm]
Velocity [Hz]500
InterfaceIO-Link
AdjustmentTeach-in
Light sourceLaser, red (Class 1)
Switching outputPNP/NPN (auto detect)
Temperature range [°C]-40 ... +60
Connection typePlug M12, 5-pin
Enclosure ratingIP69K, IP 67
