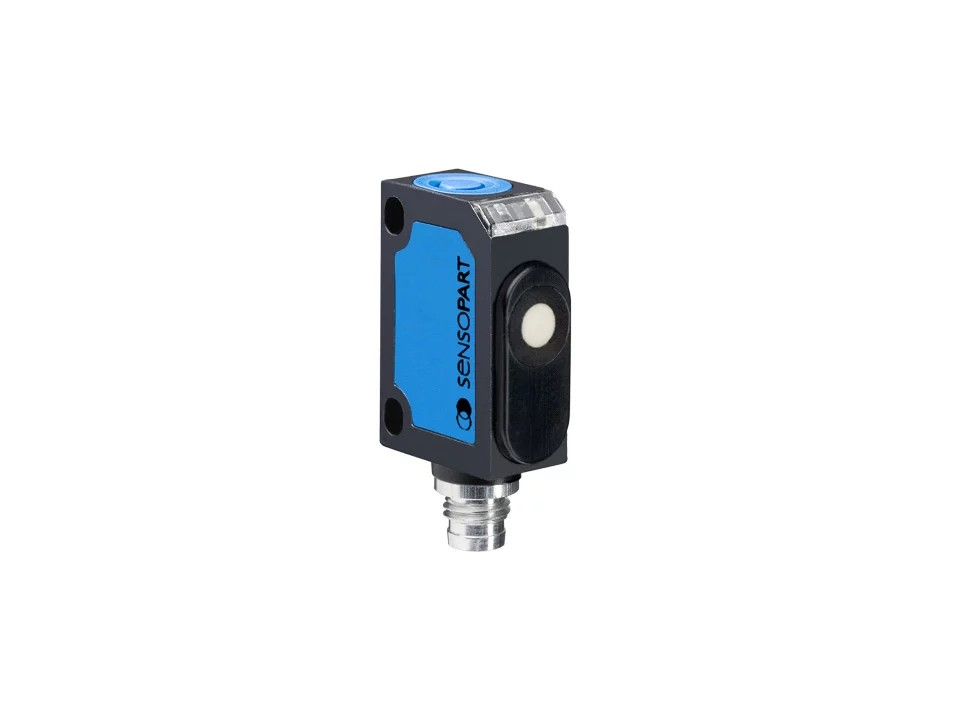

SensoPart UT 20-150-NSM4

An ultrasonic sensor for distance and presence detection independent of colour or surface

Order code
UT 20-150-NSM4
Order number
693-11001
SensoPart UT 20-150-NSM4
Repeatability
± 0.15%
Resolution
0.2
Working distance
20
Connection
Metal plug M8, 4-pin

SensoPart UT 20-150-NSM4 is an ultrasonic sensor for distance and presence detection independent of colour or surface, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Detection regardless of object colour and surface
✓Compact miniature housing for use when machine space is limited
✓Synchronisation input – simultaneous operation of several sensors in highly limited spaces
✓Analogue output: 0 … 10 V or 4 … 20 mA

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Electrical data
OutputSwitching (NPN)
Response time [ms]
Switching frequency [Hz]
Ultrasonic frequency [kHz]
Amount of swithing outputs
Mechanical data
Enclosure ratingIP 67
SeriesUT20 (32 x 21,6 x 12 mm)
Temperature range [°C]-25 ... +70
Connection typeMetal plug M8, 4-pin
Additional specifications
Working distance min. [mm]
Working distance max. [mm]
Resolution [mm]
Repeatability [mm]± 0.15%
Temperature drift [%]≤ 2 %

Accessories and compatible hardware

Complete your solution — compatible mountings, cables and optics.

Recommended accessories

MA 18
Accessory
MA 18
View product →
MA 30
Accessory
MA 30
View product →
MC 08
Accessory
MC 08
View product →
MC 30
Accessory
MC 30
View product →
