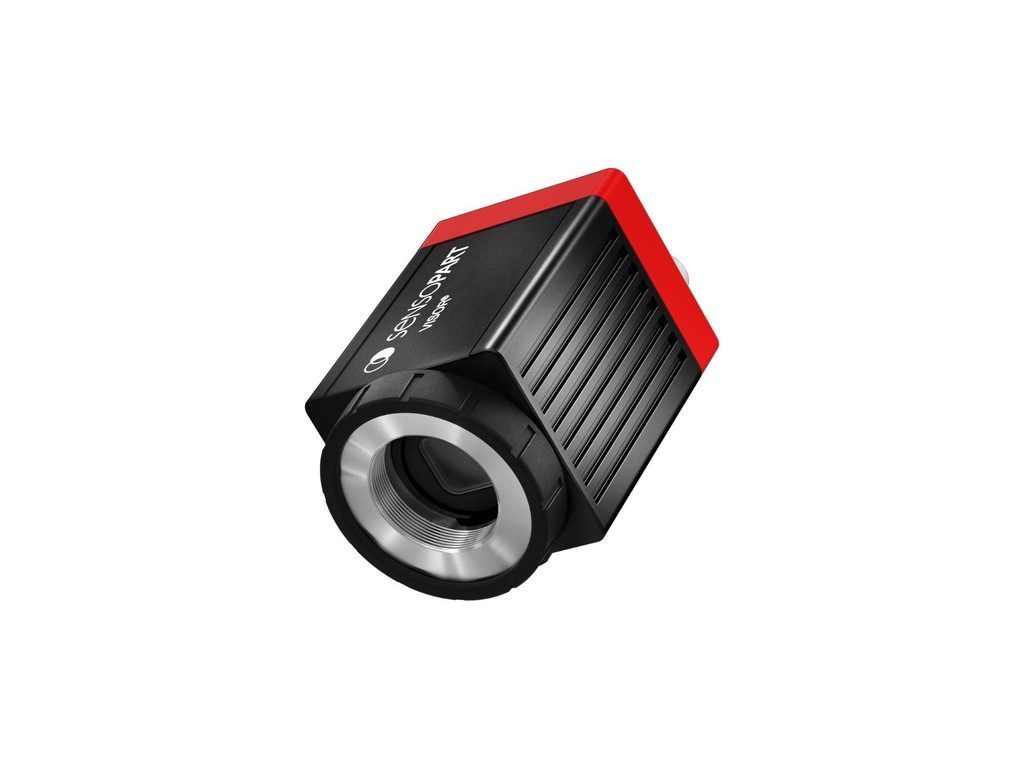

SENSOPART V20-CR-A4-C-3

SensoPart V20-CR-A4-C-3 — VISOR® XE V20 Code Reader Advanced, C-Mount, LAN interface. Genuine product,.

2.954,70 € 2.954,70 €
kr 22.085,78
(eksklusiv moms)
  • Sensor Field of View
Kontakt os
Documents
SENSOPART V20-CR-A4-C-3 - Brochure.pdf SENSOPART V20-CR-A4-C-3 - CAD.zip SENSOPART V20-CR-A4-C-3 - Datasheet.pdf SENSOPART V20-CR-A4-C-3 - Manual 2.pdf SENSOPART V20-CR-A4-C-3 - Manual 3.pdf SENSOPART V20-CR-A4-C-3 - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart V20-CR-A4-C-3

A VISOR vision sensor configured as a code reader for fast, reliable 1D barcode and 2D DataMatrix/QR reading directly on the line

Order code
V20-CR-A4-C-3
Order number
637-91100
SensoPart V20-CR-A4-C-3
Resolution
SPXGA
Field of view
C-Mount (field-of-view data depend on the lens used)
Protection
IP 65, IP 67

SensoPart V20-CR-A4-C-3 is a VISOR vision sensor configured as a code reader for fast, reliable 1D barcode and 2D DataMatrix/QR reading directly on the line.

Key features

✓Barcode : Reading 1D barcodes: EAN, UPC, RSS, 2/5 Interleaved, 2/5 Industrial, Code 32, Code 39, Code 93, Code 128, GS1, Pharmacode, Codabar
✓Datacode : Reading 2D codes: ECC200, QR code, PDF 417, ECC200 GS1
✓Result processing : Text: Monitoring and calculating detector results

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationAutomotiveElectronicsPackagingLogistics
Presence and completeness inspection
Presence and completeness inspection
Measurement and gauging
Measurement and gauging
Code & character reading (1D/2D, OCR)
Code & character reading (1D/2D, OCR)
Robot guidance and pick-and-place
Robot guidance and pick-and-place
Position correction and alignment
Position correction and alignment

Specifications

Optical data
Image chip typeMonochrome
ResolutionSPXGA
Imaging chip technology
Field of view typeC-Mount (field-of-view data depend on the lens used)
Focus driveDependent on the objective lens selected
Functions
HardwareVISOR® XE
Max. number of jobs
Max. number of detectors
Available detectorsData code, Barcode
Result processingText
Pre-processingArrangement, Filter
Archiving, Image transmission, individual overlays, Multiple image acquisition, Job checksum
Electrical data
Reverse polarity protection
Overvoltage protection
Explanation of residual rippleEN 61000-4-17
PolarityPNP/NPN
Short circuit protection
Input threshold (High)> UB-1V
Input threshold (Low)
Explanation of max. output currentmax. 100 mA on pin 12
Number of switchable IOs
Number of outputs
Number of inputs
Encoder functions
Type of voltage sourceThe device must be supplied by a "Class 2" power supply unit.
Inductive loadsTyp.: Relay 17 K / 2 H, pneumatic valve 1.4 K / 190 mH
- Number of pins
Explanation of protection classFor C-mount devices, only in combination with protective tube
Mechanical data
Front panel material
Housing materialAluminum (cast)
Connection nameSupply
Protection classIP 65, IP 67
Vibration and shock resistanceEN 60068-2-6, EN 60068-2-27
- Coding
- ThreadM12x1
- MaterialMetal
Explanation of ambient temperature: operation< 95 % humidity, non-condensing
Explanation of ambient temperature: storage< 95 % humidity, non-condensing
Additional specifications
- TypePlug
