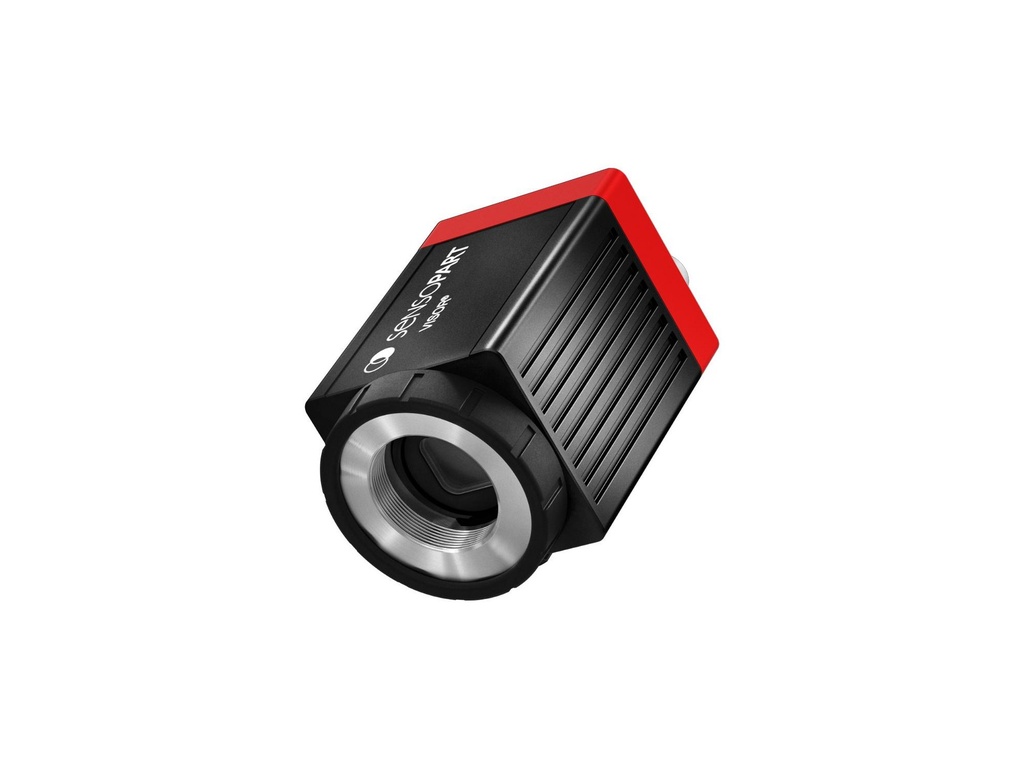

SENSOPART V20C-ALL-P4-C-3

SensoPart V20C-ALL-P4-C-3 — VISOR® XE V20 Allround Color Professional, C-Mount, LAN interface. Genuine product,.

7.196,38 € 7.196,38 €
kr 53.791,49
(eksklusiv moms)
  • Sensor Field of View
Kontakt os
Documents
SENSOPART V20C-ALL-P4-C-3 - Brochure.pdf SENSOPART V20C-ALL-P4-C-3 - CAD.zip SENSOPART V20C-ALL-P4-C-3 - Datasheet.pdf SENSOPART V20C-ALL-P4-C-3 - Manual 2.pdf SENSOPART V20C-ALL-P4-C-3 - Manual 3.pdf SENSOPART V20C-ALL-P4-C-3 - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart V20C-ALL-P4-C-3

A VISOR vision sensor for inline inspection — presence, position, measurement and code reading in factory automation

Order code
V20C-ALL-P4-C-3
Order number
637-91106
SensoPart V20C-ALL-P4-C-3
Resolution
SPXGA
Field of view
C-Mount (field-of-view data depend on the lens used)
Protection
IP 65, IP 67

SensoPart V20C-ALL-P4-C-3 is a VISOR vision sensor for inline inspection — presence, position, measurement and code reading in factory automation.

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationAutomotiveElectronicsPackagingLogistics
Presence and completeness inspection
Presence and completeness inspection
Measurement and gauging
Measurement and gauging
Code & character reading (1D/2D, OCR)
Code & character reading (1D/2D, OCR)
Robot guidance and pick-and-place
Robot guidance and pick-and-place
Position correction and alignment
Position correction and alignment

Specifications

Optical data
Image chip typeColor
ResolutionSPXGA
Imaging chip technology
Field of view typeC-Mount (field-of-view data depend on the lens used)
Focus driveDependent on the objective lens selected
Functions
HardwareVISOR® XE
Max. number of jobs
Max. number of detectors
Result processingText, Numbers, Robotics
Pre-processingArrangement, Filter
Contour comparison, Pattern matching, Edge detection
Pattern matching, Contour, Contour (3D), Contour check, BLOB, Target mark (3D), Data code, Barcode, OCR, Brightness, Contrast, Gray level, Color value, Color area, Caliper, Classification (AI), Color list
Board (measurement), Board (robotics), Hand-Eye (robotics), Base-Eye (robotics), Scaling (measurement), Point pair list (robotics)
Gripper clearance check, Result offset, image coordinates, Result offset 2D, Result offset 3D
Archiving, Image transmission, individual overlays, Multiple image acquisition, Color channel, color distance and binarization, Multiple detection for contour and pattern matching detector, Multiple detection for detector contour (3D), Job checksum, Conditional executions
Electrical data
Reverse polarity protection
Overvoltage protection
Explanation of residual rippleEN 61000-4-17
PolarityPNP/NPN
Short circuit protection
Input threshold (High)> UB-1V
Input threshold (Low)
Explanation of max. output currentmax. 100 mA on pin 12
Number of switchable IOs
Number of outputs
Number of inputs
Encoder functions
Type of voltage sourceThe device must be supplied by a "Class 2" power supply unit.
Inductive loadsTyp.: Relay 17 K / 2 H, pneumatic valve 1.4 K / 190 mH
- Number of pins
Explanation of protection classFor C-mount devices, only in combination with protective tube
Mechanical data
Front panel material
Housing materialAluminum (cast)
Connection nameSupply
Protection classIP 65, IP 67
Vibration and shock resistanceEN 60068-2-6, EN 60068-2-27
- Coding
- ThreadM12x1
- MaterialMetal
Explanation of ambient temperature: operation< 95 % humidity, non-condensing
Explanation of ambient temperature: storage< 95 % humidity, non-condensing
Additional specifications
- TypePlug

Accessories and compatible hardware

Complete your solution — compatible mountings, cables and optics.

Recommended accessories

MA 18
Accessory
MA 18
View product →
MA 30
Accessory
MA 30
View product →
MC 08
Accessory
MC 08
View product →
MC 30
Accessory
MC 30
View product →
