Optical Sensor

5.5 m, red light, potentiometer, PNP N.O., cont. output, plug M12 4-pin

Retro-reflective light barrier, F50, SN 0-5500mm, NPN N.O./N.C., 1kHz, IP67, plug M12 4 pins

Retro-reflective light barrier, F50, range 0-5500 mm, PNP N.O./N.C., 1 kHz, IP67, plug M12 4 pins

Description
Miniature sensor with BlueLight technology and precisely adjustable background suppression
Reliable switching with strongly light absorbing and shiny objects
Reliable operation even with highly reflective backgrounds thanks to SensoPart ASIC technology
Simple alignment thanks to easily visible light spot
Sensor setting via teach-in, control input and IO-Link
Robust glass-fibre-reinforced plastic housings


Product data
Sensor principle
Photoelectric diffuse sensor with Background Suppression
Series
F25 (34 x 20 x 12 mm)
Working distance min. [mm]
0
Working distance max. [mm]
200
Velocity [Hz]
700
Interface
IO-Link
Adjustment
Teach-in
Light source
LED, blue
Switching output
PNP/NPN (auto detect)
Temperature range [°C]
-20 ... +60
Connection type
Pigtail, plug M8, 4-wire, 150 mm
Enclosure rating
IP69K

Description
Miniature sensor with BlueLight technology and precisely adjustable background suppression
Reliable switching with strongly light absorbing and shiny objects
Reliable operation even with highly reflective backgrounds thanks to SensoPart ASIC technology
Simple alignment thanks to easily visible light spot
Sensor setting via teach-in, control input and IO-Link
Robust glass-fibre-reinforced plastic housings

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 0
Working distance max. [mm]: 200
Velocity [Hz]: 700
Interface: IO-Link
Adjustment: Teach-in
Light source: LED, blue
Switching output: PNP/NPN (auto detect)
Temperature range [°C]: -20 ... +60
Connection type: Plug M8, 4-pin
Enclosure rating: IP69K

Description
Miniature sensor with BlueLight technology and precisely adjustable background suppression
Reliable switching with strongly light absorbing and shiny objects
Reliable operation even with highly reflective backgrounds thanks to SensoPart ASIC technology
Simple alignment thanks to easily visible light spot
Sensor setting via teach-in, control input and IO-Link
Robust glass-fibre-reinforced plastic housings
Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression

Series: F25 (34 x 20 x 12 mm)

Working distance min. [mm]: 0

Working distance max. [mm]: 200

Velocity [Hz]: 700

Interface: IO-Link

Adjustment: Teach-in

Light source: LED, blue

Switching output: PNP/NPN (auto detect)

Temperature range [°C]: -20 ... +60

Connection type: Metal plug M8, 4-pin

Enclosure rating: IP69K

1 ... 80 mm, bluelight, bgs, fixed focus, NPN, cable 2 m 4-wire

Description
Miniature sensor with BlueLight technology and high-precision, fixed background suppression
Reliable switching behaviour with strongly light-absorbing and highly transparent objects
Functions reliably without reflector - even with critical object surfaces
Tamper-proof sensor version - no adjustment possible
Robust, glass-fibre reinforced plastic housing
Simple fixation and alignment through innovative dovetail mounting concept


Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 0
Working distance max. [mm]: 80
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: PNP
Temperature range [°C]: -20 ... +40
Connection type: Cable, 4-wire, 2 m
Enclosure rating: IP69

Description
Miniature sensor with BlueLight technology and high-precision, fixed background suppression
Reliable switching behaviour with strongly light-absorbing and highly transparent objects
Functions reliably without reflector - even with critical object surfaces
Tamper-proof sensor version - no adjustment possible
Robust, glass-fibre reinforced plastic housing
Simple fixation and alignment through innovative dovetail mounting concept


Product data
Sensor principle
Photoelectric diffuse sensor with Background Suppression
Series
F25 (34 x 20 x 12 mm)
Working distance min. [mm]
0
Working distance max. [mm]
80
Velocity [Hz]
1000
Adjustment
Control input
Light source
LED, blue
Switching output
NPN
Temperature range [°C]
-20 ... +40
Connection type
Plug M8, 4-pin
Enclosure rating
IP69

Description
Miniature sensor with BlueLight technology and high-precision, fixed background suppression
Reliable switching behaviour with strongly light-absorbing and highly transparent objects
Functions reliably without reflector - even with critical object surfaces
Tamper-proof sensor version - no adjustment possible
Robust, glass-fibre reinforced plastic housing
Simple fixation and alignment through innovative dovetail mounting concept


Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 0
Working distance max. [mm]: 80
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: PNP
Temperature range [°C]: -20 ... +40
Connection type: Plug M8, 4-pin
Enclosure rating: IP69

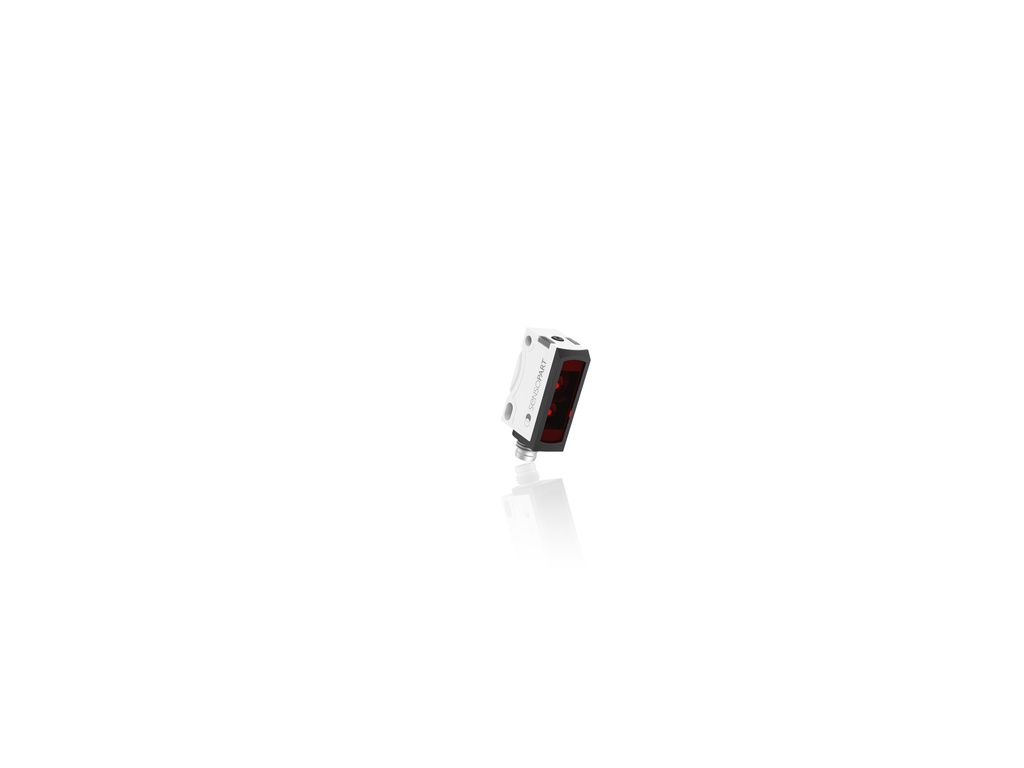

Description
Small laser light spot for reliable distance measurement of small objects part detection
Miniature housing and low weight - suitable for robotic applications
High linearity and high repeatability for precise control tasks
Invertible analogue characteristic
Window mode e.g. for two-step controls separately adjustable
Measurement value output via IO-Link

Product data:
Linearity [mm]: 0.25
Sensor principle: Distance sensor with triangulation
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 20
Working distance max. [mm]: 100
Velocity [Hz]: 1000
Interface: IO-Link
Type: Cubic
Light source: Laser, red (Class 1)
Switching output: PNP/NPN (auto detect)
Amount of swithing outputs: 1
Resolution [mm]: 0.12
Repeatability [mm]: 0.25
Temperature range [°C]: -20 ... +60
Temperature drift [%]: 0,1 mm / K
Measurement output: Analog (voltage), IO-Link
Connection type: Metal plug M8, 4-pin
Enclosure rating: IP 67, IP69K

A follow up product is available. -

Description
Smallest RGB color sensor with high switching frequency ≤ 10 kHz
Precise detection of the slightest of contrast differences
Very robust operation despite fluttering and glossy objects
Feedback via „responding light spot“ about quality of taught-in color value

Product data
Amount of colors: 1
Sensor principle: Color sensor
Spot size [mm]: 1 x 5
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 12
Working distance max. [mm]:12
Velocity [Hz]: 2500
Interface: IO-Link
Light source: LED, RGB
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type: Metal plug M8, 4-pin
Enclosure rating: IP 67, IP69

Description
Smallest RGB color sensor with high switching frequency ≤ 10 kHz
Precise detection of the slightest of contrast differences
Very robust operation despite fluttering and glossy objects
Feedback via „responding light spot“ about quality of taught-in color value

Product data
Amount of colors: 1
Sensor principle: Color sensor
Spot size [mm]: 1 x 5
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 12
Working distance max. [mm]: 12
Velocity [Hz]: 10000
Interface: IO-Link
Light source: LED, RGB
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type: Metal plug M8, 4-pin
Enclosure rating: IP 67, IP69

Description
Smallest RGB color sensor with high switching frequency ≤ 10 kHz
Precise detection of the slightest of contrast differences
Very robust operation despite fluttering and glossy objects
Feedback via „responding light spot“ about quality of taught-in color value

Product data
Amount of colors: 1
Sensor principle: Color sensor
Spot size [mm]: 1 x 5
Series:F25 (34 x 20 x 12 mm)
Working distance min. [mm]:12
Working distance max. [mm]:12
Light source:LED, RGB
Switching output:Push-pull
Temperature range [°C]:-20 ... +55
Connection type: Metal plug M8, 4-pin
Enclosure rating: IP 67, IP69

Description
Smallest RGB color sensor with high switching frequency ≤ 10 kHz
Precise detection of the slightest of contrast differences
Very robust operation despite fluttering and glossy objects
Feedback via „responding light spot“ about quality of taught-in color value

Product data
Amount of colors: 1
Sensor principle: Color sensor
Spot size [mm]_ 1 x 5
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 12
Working distance max. [mm]: 12
Light source: LED, RGB
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type: Metal plug M8, 4-pin
Enclosure rating: IP 67, IP69

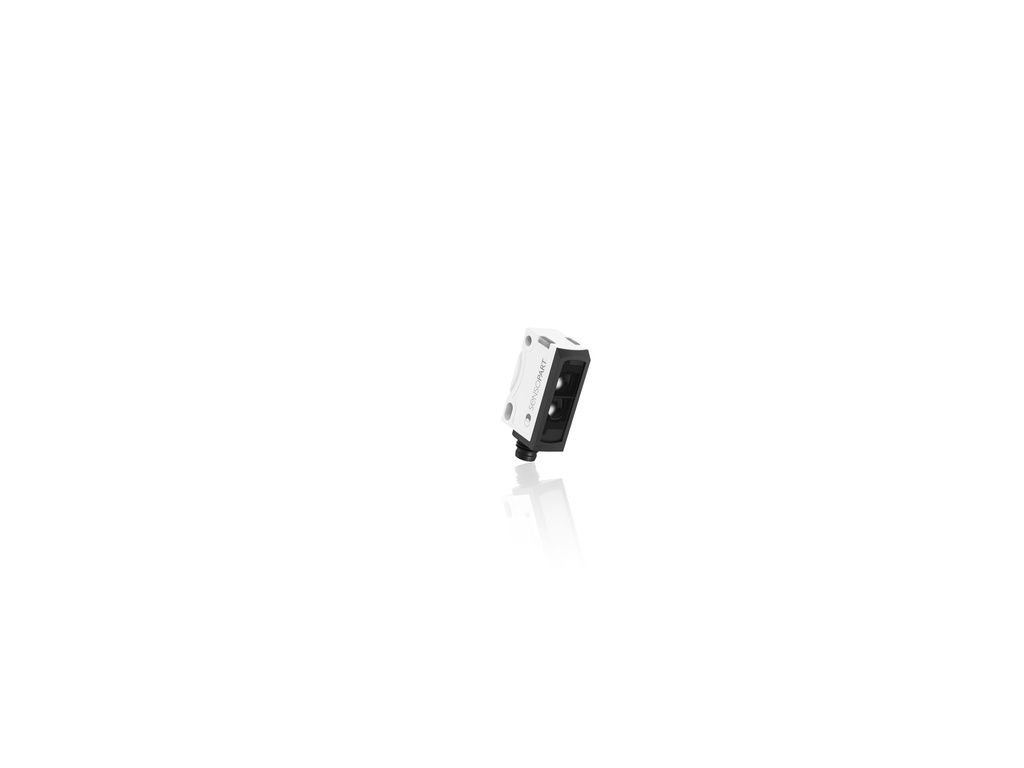

Description
Precise detection of the slightest contrast differences
Very robust operation despite fluttering and glossy objects
Simple alignment through very precise and easily visible light spot
Housings that are many times smaller than standard housings – and offer better performance
Very high positioning accuracy with 10 µs scanning

Product data
Sensor principle: Contrast sensor
Spot size [mm]: 1 x 4
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 9,5
Working distance max. [mm]: 14,5
Velocity [Hz]: 10000
Light source: LED, white
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type: Pigtail, plug M12, 4-wire, 150 mm
Enclosure rating: IP 67, IP69

Description
Precise detection of the slightest contrast differences
Very robust operation despite fluttering and glossy objects
Simple alignment through very precise and easily visible light spot
Housings that are many times smaller than standard housings – and offer better performance
Very high positioning accuracy with 10 µs scanning

Product data:
Sensor principle: Contrast sensor
Spot size [mm]: 1 x 4
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 9,5
Working distance max. [mm]: 14,5
Velocity [Hz]: 10000
Light source: LED, white
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type: Plug M8, 4-pin
Enclosure rating: IP 67, IP69

Description
Precise detection of the slightest contrast differences
Very robust operation despite fluttering and glossy objects
Simple alignment through very precise and easily visible light spot
Housings that are many times smaller than standard housings – and offer better performance
Very high positioning accuracy with 10 µs scanning

Product data:
Sensor principle: Contrast sensor
Spot size [mm]: 1 x 4
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 9,5
Working distance max. [mm]: 14,5
Light source: LED, white
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type_: Pigtail, plug M12, 4-wire, 150 mm
Enclosure rating: IP 67, IP69

Description
Precise detection of the slightest contrast differences
Very robust operation despite fluttering and glossy objects
Simple alignment through very precise and easily visible light spot
Housings that are many times smaller than standard housings – and offer better performance
Very high positioning accuracy with 10 µs scanning

Product data:
Sensor principle: Contrast sensor
Spot size [mm]: 1 x 4
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 9,5
Working distance max. [mm]: 14,5
Light source: LED, white
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type: Plug M8, 4-pin
Enclosure rating: IP 67, IP69

Description
Precise detection of the slightest contrast differences
Very robust operation despite fluttering and glossy objects
Simple alignment through very precise and easily visible light spot
Housings that are many times smaller than standard housings – and offer better performance
Very high positioning accuracy with 10 µs scanning

Product data:
Sensor principle: Contrast sensor
Spot size [mm]: 1 x 4
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 9,5
Working distance max. [mm]: 14,5
Velocity [Hz]: 25000
Light source: LED, white
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type: Metal plug M8, 4-pin
Enclosure rating: IP 67, IP69
