Optical Sensor

Sorter efter Sorter efter: Udvalgte

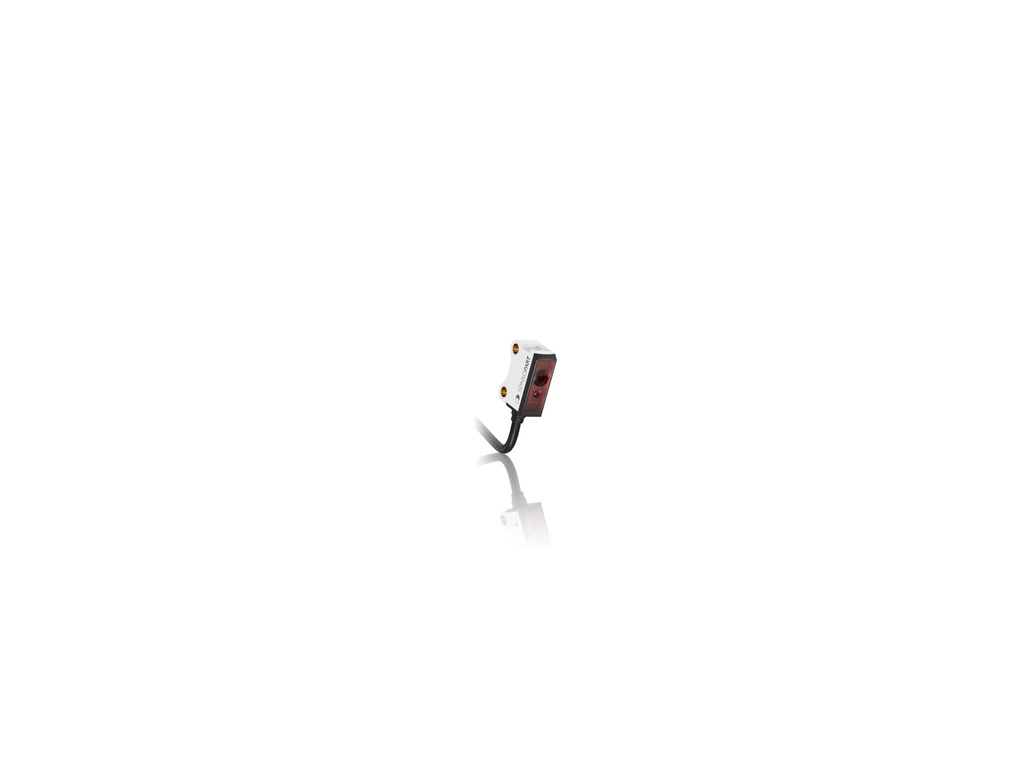

[SENSOPART 611-51002] SENSOPART FS/FE 10-RL-PS-K4

SENSOPART FS/FE 10-RL-PS-K4

Emitter/receiver, receiver Teach-in, SN=0…3m, PNP, cable 2m 4-wire
[SENSOPART 611-51001] SENSOPART FS/FE 10-RL-NS-E4

SENSOPART FS/FE 10-RL-NS-E4

Emitter/receiver, receiver Teach-in, SN=0…3m,NPN, plug M5 4-pin
[SENSOPART 611-51000] SENSOPART FS/FE 10-RL-PS-E4 FS/FE 10-RL-PS-E4

SENSOPART FS/FE 10-RL-PS-E4

Description:

Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings


Product data:

Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
[SENSOPART 602-71008] SENSOPART FE 10-RL-NS-KM3 FE 10-RL-NS-KM3

SENSOPART FE 10-RL-NS-KM3

Description

Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings


Product data

Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67

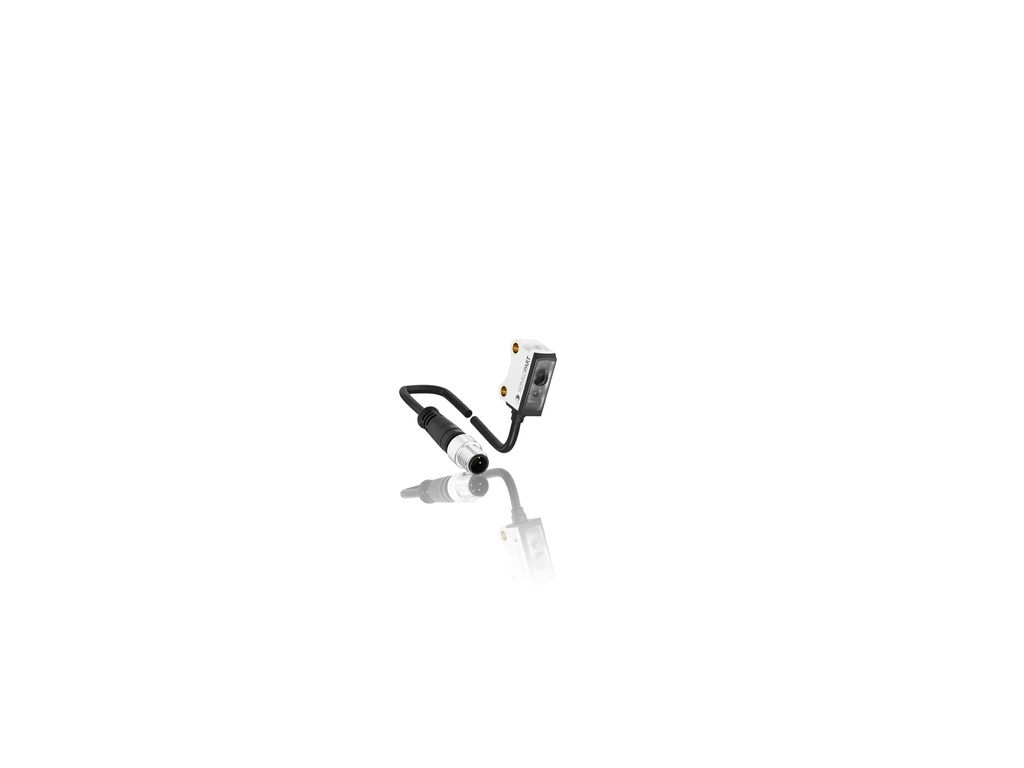

[SENSOPART 602-71006] SENSOPART FE 10-RL-PS-KM3

SENSOPART FE 10-RL-PS-KM3

Description

Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings


Product data

Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67
[SENSOPART 602-71005] SENSOPART FE 10-RL-NS-KM4 FE 10-RL-NS-KM4

SENSOPART FE 10-RL-NS-KM4

Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating
IP 67
[SENSOPART 602-71004] SENSOPART FE 10-RL-PS-KM4 FE 10-RL-PS-KM4

SENSOPART FE 10-RL-PS-KM4

Laser through-beam sensor, receiver, red light, laser class 1, SN=4000mm, PNP, 4000Hz, IP67, moulded plug (pigtail) M8 4-pin, 2
[SENSOPART 602-71003] SENSOPART FE 10-RL-NS-K4 FE 10-RL-NS-K4

SENSOPART FE 10-RL-NS-K4

Description

Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings


Product data

Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
[SENSOPART 602-71002] SENSOPART FE 10-RL-PS-K4 FE 10-RL-PS-K4

SENSOPART FE 10-RL-PS-K4

Description

Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings


Product data

Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67

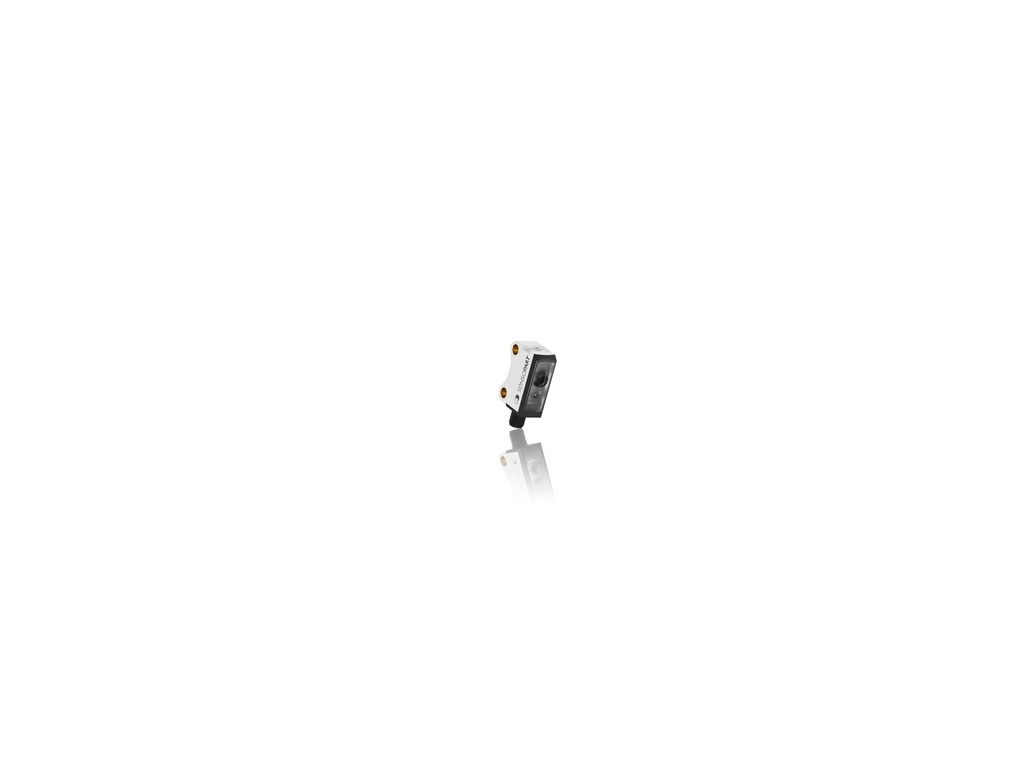

[SENSOPART 602-71001] SENSOPART FE 10-RL-NS-E4 FE 10-RL-NS-E4

SENSOPART FE 10-RL-NS-E4

Description

Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings


Product data

Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
[SENSOPART 602-71000] SENSOPART FE 10-RL-PS-E4 FE 10-RL-PS-E4

SENSOPART FE 10-RL-PS-E4

Description

Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings


Product data

Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
[SENSOPART 601-61005] SENSOPART FS 10-RL-KM3

SENSOPART FS 10-RL-KM3

Description

Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings


Product data

Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67
[SENSOPART 601-61004] SENSOPART FS 10-RL-KM4

SENSOPART FS 10-RL-KM4

Description

Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
[SENSOPART 601-61002] SENSOPART FS 10-RL-K4 FS 10-RL-K4

SENSOPART FS 10-RL-K4

Laser through-beam sensor, emitter, red light, laser class 1, SN=3000mm, PNP, 4000Hz, IP67, cable 2m 4-wire
[SENSOPART 601-61000] SENSOPART FS 10-RL-E4 FS 10-RL-E4

SENSOPART FS 10-RL-E4

Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• High switching frequency for detection in even the fastest processes
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
[SENSOPART 603-31007] SENSOPART FR 10-RL-NS-KM3 FR 10-RL-NS-KM3

SENSOPART FR 10-RL-NS-KM3

Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67
[SENSOPART 603-31006] SENSOPART FR 10-RL-PS-KM3 FR 10-RL-PS-KM3

SENSOPART FR 10-RL-PS-KM3

Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
Suitable for numerous different reflectors
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings


Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67
[SENSOPART 603-31005] SENSOPART FR 10-RL-NS-KM4 FR 10-RL-NS-KM4

SENSOPART FR 10-RL-NS-KM4

Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating
IP 67
[SENSOPART 603-31004] SENSOPART FR 10-RL-PS-KM4 FR 10-RL-PS-KM4

SENSOPART FR 10-RL-PS-KM4

Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
[SENSOPART 603-31003] SENSOPART FR 10-RL-NS-K4 FR 10-RL-NS-K4

SENSOPART FR 10-RL-NS-K4

Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
[SENSOPART 603-31002] SENSOPART FR 10-RL-PS-K4 FR 10-RL-PS-K4

SENSOPART FR 10-RL-PS-K4

Description
* Sub-miniature sensor for installation in the smallest of spaces
* Bright, precise laser light spot for optimum small-part detection and simple alignment
* Suitable for numerous different reflectors
* User-friendly operation via electronic Teach-in button or control line
* Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
