Optical Sensor

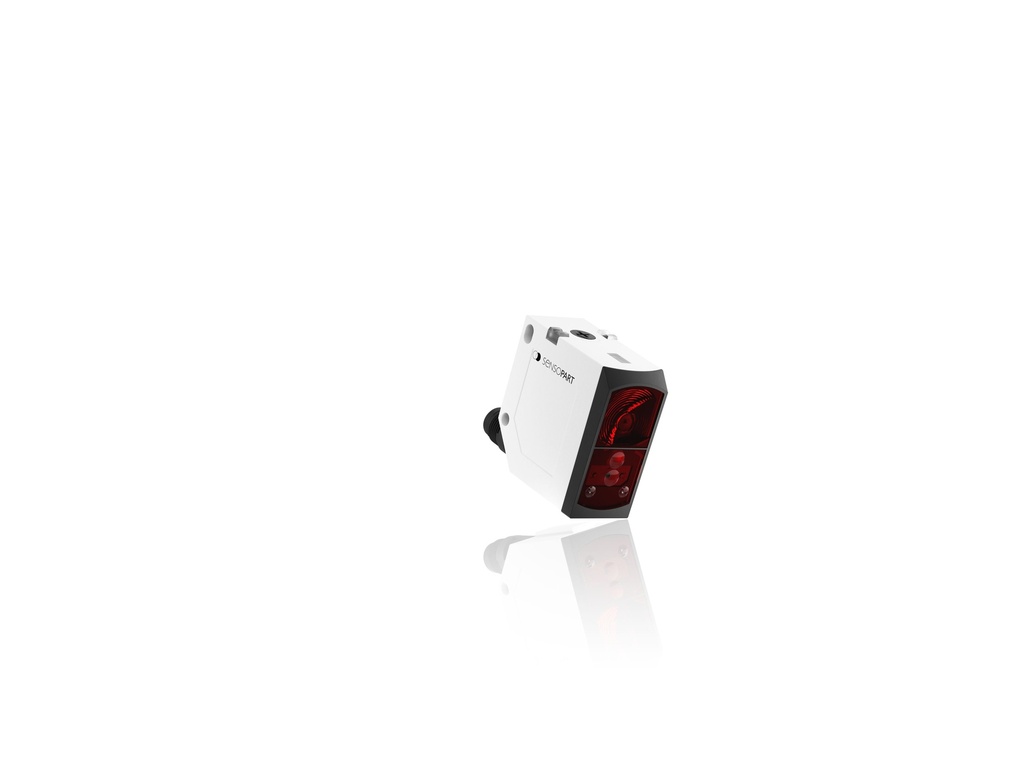

Proximity switch with backround suppression, red light, PNP, IP67, cable

Proximity switch with backround suppression, red light, NPN, IP67, plug M12

Proximity switch with background suppresion red light, PNP, IP67,plug M12

Description
Detection of luminescent materials, e.g. in paper, oil and glues
Precise, small light spot for maximum positioning accuracy
Flexibility through large scanning range
Robust, dazzle-proof operation
Plug rotatable for simple integration in the machine

Product data:
Velocity [Hz]: 500
Sensor principle: Luminescence sensor
Series: F50 (50 x 50 x 17 mm)
Working distance min. [mm]: 5
Working distance max. [mm]: 50
Light source:LED, UV
Switching output: PNP
Temperature range [°C]: -10 ... +55
Connection type: Plug M12, 5-pin, Plug M12, 5-pin
Enclosure rating: IP 67

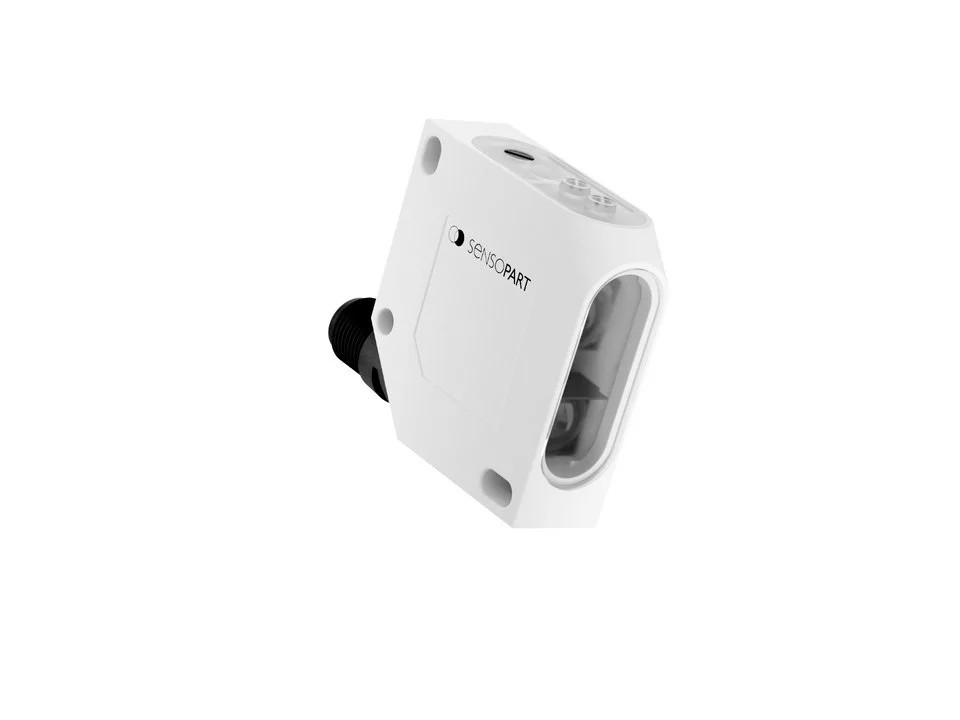

Description
Colors are reliably detected despite fluctuating scanning distances thanks to patented optical technology
Very good depth of field
Very simple setup (via button and control line)
Even the smallest of color differences are reliably detected due to pulsed white light
Varying light spot sizes depending on task

Product data:
Amount of colors: 1
Sensor principle: Color sensor
Spot size [mm]: 4 x 4 @ 40 mm
Series: F50 (50 x 50 x 17 mm)
Working distance min. [mm]: 12
Working distance max. [mm]: 32
Light source: LED, white
Switching output: PNP
Temperature range [°C]: -10 ... +55
Connection type: Plug M12, 5-pin
Enclosure rating: IP 67

Description
Colors are reliably detected despite fluctuating scanning distances thanks to patented optical technology
Very good depth of field
Very simple setup (via button and control line)
Even the smallest of color differences are reliably detected due to pulsed white light
Varying light spot sizes depending on task

Product data:
Amount of colors: 1
Sensor principle: Color sensor
Spot size [mm]: 2 x 2 @ 40 mm
Series: F50 (50 x 50 x 17 mm)
Working distance min. [mm]: 15
Working distance max. [mm]: 30
Light source: LED, white
Switching output: PNP
Temperature range [°C]: -10 ... +55
Connection type: Plug M12, 5-pin
Enclosure rating: IP 67

Description
Colors are reliably detected despite fluctuating scanning distances thanks to patented optical technology
Very good depth of field
Very simple setup (via button and control line)
Even the smallest of color differences are reliably detected due to pulsed white light
Varying light spot sizes depending on task

Product data:
Amount of colors: 1
Sensor principle: Color sensor
Spot size [mm]: 4 x 4 @ 40 mm
Series: F50 (50 x 50 x 17 mm)
Working distance min. [mm]: 12
Working distance max. [mm]: 32
Light source: LED, white
Switching output: PNP
Temperature range [°C]: -10 ... +55
Connection type: Plug M12, 5-pin
Enclosure rating: IP 67

Description
Colors are reliably detected despite fluctuating scanning distances thanks to patented optical technology
3 colors distinguishable via 3 switching outputs
Even the smallest of color differences are reliably detected
Easy teach-in of colors via Teach-in button or control line

Product data:
Amount of colors: 3
Sensor principle: Color sensor
Spot size [mm]: 4 x 4 @ 40 mm
Series: F50 (50 x 50 x 17 mm)
Working distance min. [mm]: 12
Working distance max. [mm]: 32
Light source: LED, white
Switching output: PNP
Temperature range [°C]: -10 ... +55
Connection type: Plug M12, 8-pin
Enclosure rating: IP 67

Description
Colors are reliably detected despite fluctuating scanning distances thanks to patented optical technology
3 colors distinguishable via 3 switching outputs
Even the smallest of color differences are reliably detected
Easy teach-in of colors via Teach-in button or control line

Product data:
Amount of colors: 3
Sensor principle: Color sensor
Spot size [mm]: 4 x 4 @ 40 mm
Series: F50 (50 x 50 x 17 mm)
Working distance min. [mm]: 12
Working distance max. [mm]: 32
Light source: LED, white
Switching output: PNP
Temperature range [°C]: -10 ... +55
Connection type: Plug M12, 8-pin
Enclosure rating: IP 67

Description
Colors are reliably detected despite fluctuating scanning distances thanks to patented optical technology
3 colors distinguishable via 3 switching outputs
Even the smallest of color differences are reliably detected
Easy teach-in of colors via Teach-in button or control line

Product data:
Amount of colors: 3
Sensor principle: Color sensor
Spot size [mm]: 4 x 4 @ 40 mm
Series: F50 (50 x 50 x 17 mm)
Working distance min. [mm]: 12
Working distance max. [mm]: 32
Light source: LED, white
Switching output: PNP
Temperature range [°C]: -10 ... +55
Connection type: Plug M12, 8-pin
Enclosure rating: IP 67

Laser distance sensor 70-170 mm, 2 outputs PNP, N.O., 4...20 mA. Bring your production to new heights with Sensopart vision and sensor

Distance sensor, 70 to 170 mm, Resolution 0,1% f.v. of meas. range, PNP, RS485 2 Outputs 4...20mA. Bring your production to new heights with Sensopart vision and sensor

Distance sensor, 80 to 300mm, Resolution 0,1% f.v. of meas. range, 1 x PNP, N.C./N.O. 4 to 20 mA, M12 5-pin cennector. Bring your production to new heights with Sensopart vision and sensor

Distance sensor, 30 to 100mm, Resolution 0,1% f.v. of meas. range, 1 x PNP, N.C./N.O. 4 to 20 mA, M12 5-pin cennector. Bring your production to new heights with Sensopart vision and sensor

Laser distance sensor 30-100 mm, 2 outputs PNP, N.O.,4...20mA Software: www.sensopart.de - Downloads. Bring your production to new heights with Sensopart vision and sensor

Laser distance sensor 30-100 mm, 2 outputs, PNP, N.O., 4...20mA. Bring your production to new heights with Sensopart vision and sensor

Distance sensor, 80 to 300 mm, Resolution 0,1% f.v. of meas. range, PNP,N.O. RS485 Software: www.sensopart.de - Downloads. Bring your production to new heights with Sensopart vision and sensor

Laser distance sensor 80-300 mm, 2 outputs, PNP,N.O.,4...20 mA. Bring your production to new heights with Sensopart vision and sensor

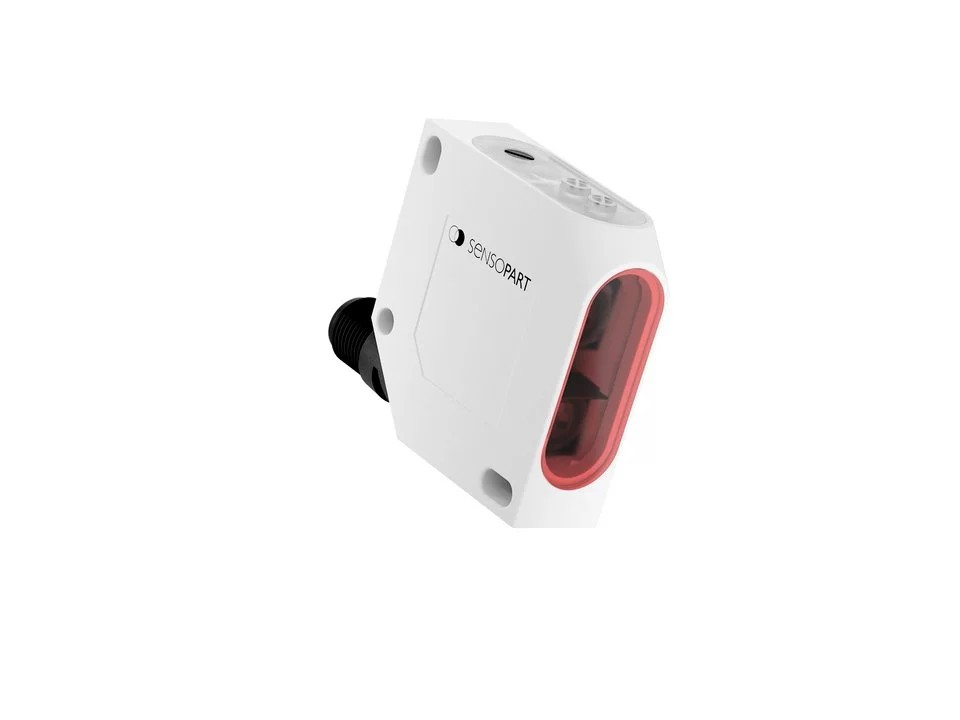

Analogue sensor, F50, laser, red light, 40-60mm, 40Hz, IP67,plug M12 4 pins,7µm. Bring your production to new heights with Sensopart vision and sensor

Analogue sensor, F50, red light, SN 40-60mm, 40Hz, IP67, cable, 7µm. Bring your production to new heights with Sensopart vision and sensor

FT 50 RLA-20-F-L4S Lasertaster mit Analogue sensor, F50, red light, 40µm, 40-60mm, 400Hz, IP67, M12-plug 4 pins. Bring your production to new heights with Sensopart vision and sensor
