Distance sensors

FT 50 RLA-20-F-L4S Lasertaster mit Analogue sensor, F50, red light, 40µm, 40-60mm, 400Hz, IP67, M12-plug 4 pins. Bring your production to new heights with Sensopart vision and sensor

FT 50 RLA-20-F-K5 Lasertaster mit Analogue sensor, F50, red light,40-60mm, 400 Hz, IP67, cable, 40µm, laser. Bring your production to new heights with Sensopart vision and sensor

Laser proximity switch with analogue output, F50, red light, SN 45-85mm, 40Hz, IP67, M12-plug 4-pin,. Bring your production to new heights with Sensopart vision and sensor

45 ... 85 mm, res. 20 µm, laser, analogue, 0 … 10 V, cable 6 m 5-wire. Bring your production to new heights with Sensopart vision and sensor

45 ... 85 mm, res. 80 µm, laser, analogue, 0 … 10 V, plug M12 4-pin. Bring your production to new heights with Sensopart vision and sensor

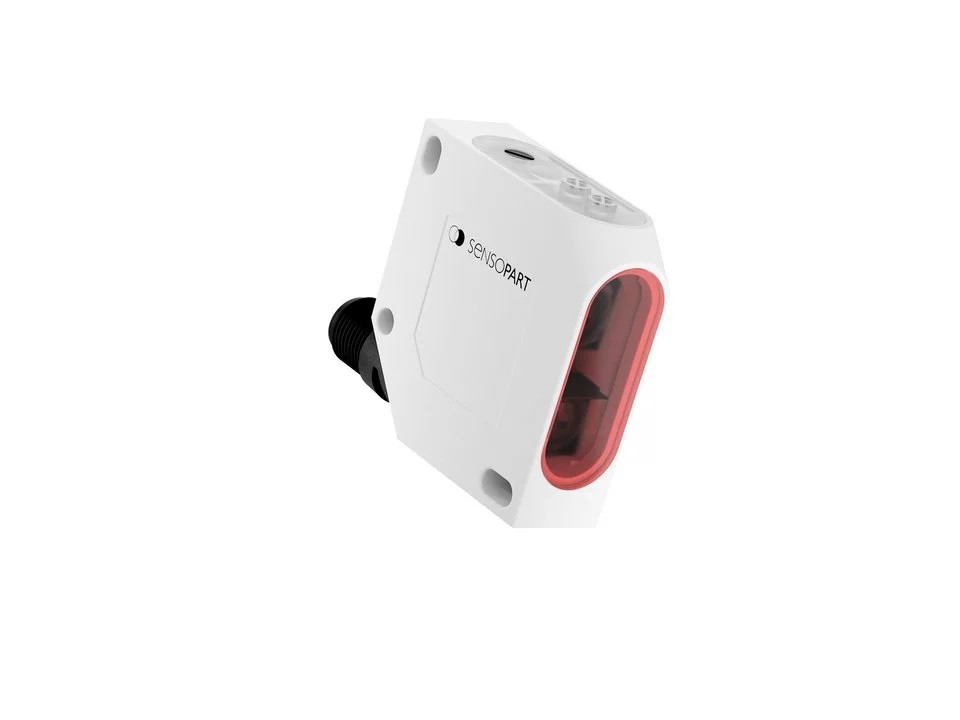

FT 50 RLA-40-F-K5 Lasertaster mit Analogue sensor, F50, red light, SN 45-85mm, 400Hz, IP67, cabel, Laser. Bring your production to new heights with Sensopart vision and sensor

For this prodcut a new version is available: 605-21021 FE 25-RL-PNSL-M4M That offers additional functionality via IO-Link. More

For this prodcut a new version is available: 605-21022 FE 25-RL-PNSL-M4M That offers additional functionality via IO-Link. More

Laser through-beam sensor, receiver, ....m , red light, teach-in (button and input), 24 VDC, NPN, N.O (N.C), cable with plug M8

Laser through-beam sensor, receiver, ...m, red light, teach-in (button and input), 24 VDC, NPN, N.O.(N.C.), cable For this prod

Photoelectric through-beam sensors (receiver), 13 m, red light, LED, Auto-Detect, teach-in, metal plug M8 4-pin, IP 67 & IP 69,

Photoelectric through-beam sensors (receiver), 13 m, red light, LED, Auto-Detect, teach-in, cable 2 m 4-wire, IP 67 & IP 69, IO

For this prodcut a new version is available: 605-21019 FE 25-R-PNSL-M4M That offers additional functionality via IO-Link. More

Through-beam sensor, receiver, 13m, redlight, LED, PNP, Teach-in, metal plug M8 4 pin, IP67 & IP69K For this prodcut a new vers

Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67

Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• Suitable for numerous different reflectors
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings

Product data
Sensor principle
Photoelectric retro-reflective sensor
Spot size [mm]
1 x 3
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
100
Working distance max. [mm]
3000
Velocity [Hz]
1000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67

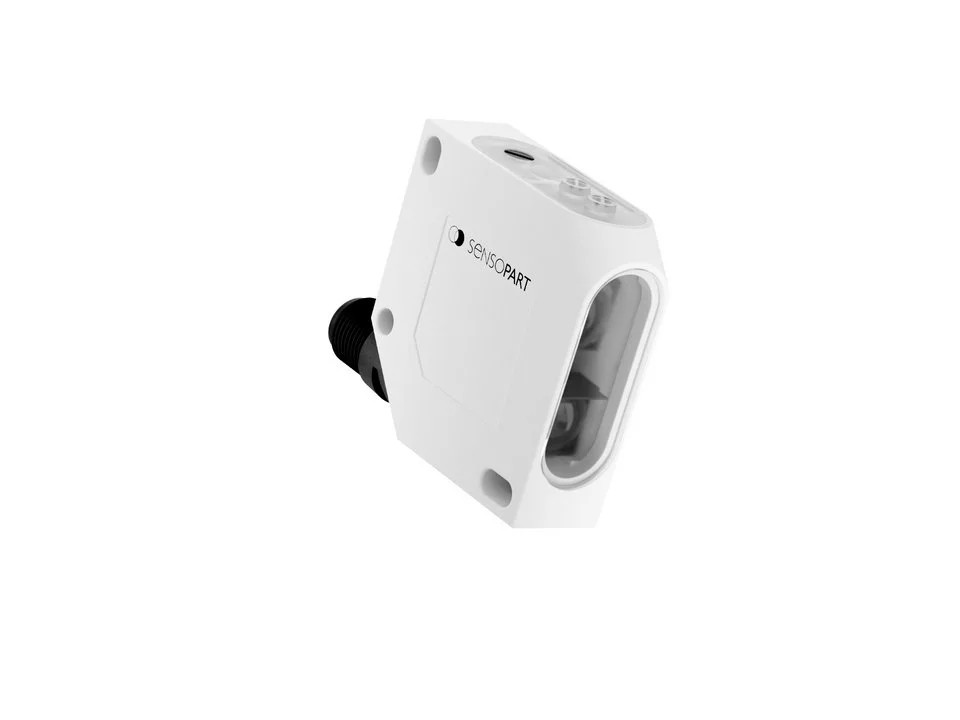

Color sensor FT 50 C, NPN, N.O., plug M12, 8-pin

Color sensor FT 50 C, NPN, N.O., plug M12, 8-pin

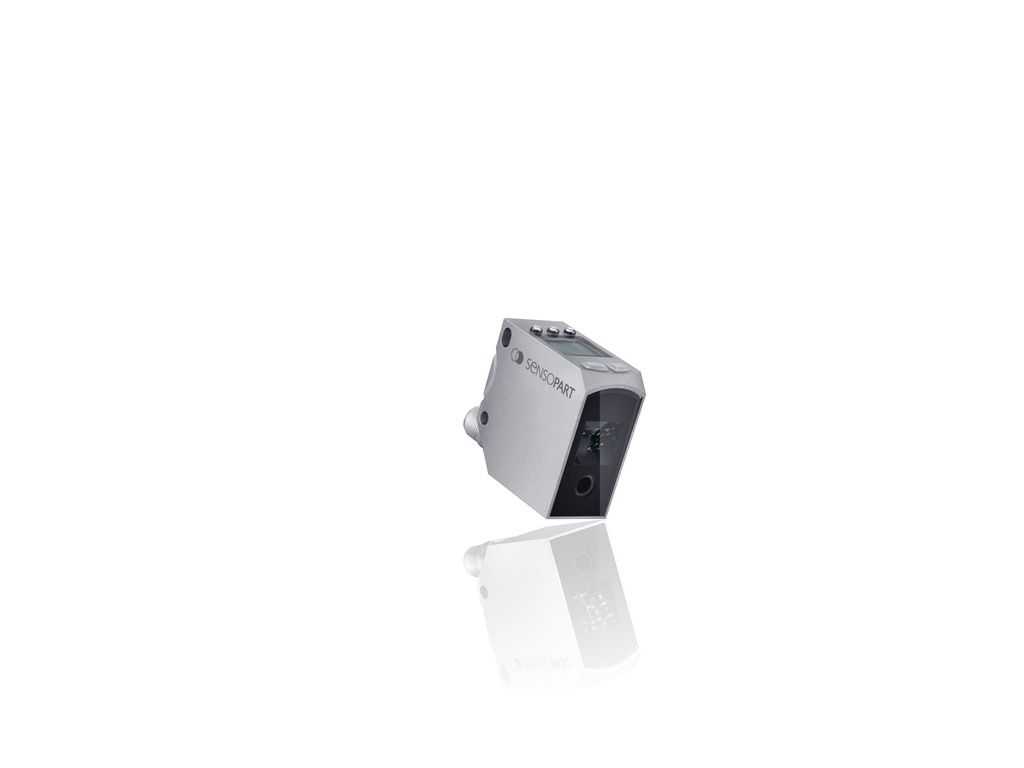

Laser distance sensor, working distance 120…600 mm, 2xQ, QA 4…20mA / 0.1...10V, IO-Link, laser class 2, Autodetect (PNP/NPN), m

3 ... 1200 mm, blue light, bgs, potentiometer, PNP, IP69, plug M12 4-pin

Retro-reflective laser light barrier, laser class 1, SN=2000mm, PNP, 1000Hz, IP67, plug M5 4-pin, teach-in
