Photoelectric sensors

SENSOPART FT 25-RF2-NS-K4

For this prodcut a new version is available 608-11061 FT 25-RF2-PNSL-K4. That offers additional functionality via IO-Link. More

SENSOPART FT 25-RF2-PS-K4

Proximity switch with background suppression, 80mm, Fix Focus, PNP NO/NC, 2m cable For this prodcut a new version is available

SENSOPART FT 25-RF2-PS-M4

For this prodcut a new version is available 608-11060 FT 25-RF2-PNSL-M4. That offers additional functionality via IO-Link. More

SENSOPART FT 25-RF1-PS-K4

Photoelectric proximity sensor with background suppression, fixed focus, 60mm, redlight, LED, PNO, cable 2m 4-pin, IP67 & IP69K

SENSOPART FT 25-RF1-PS-M4

Proximity sensor with backgrpund suppression, (fixed focus), 60mm, redlight, LED, PNP, plug M8 4-pin, IP67 & IP69K For this pro

SENSOPART FT 25-RA-170-PNSUL-M4M

Description
Miniature housing with measurement ranges up to 200 mm for an easy integration and high flexibility
High linearity and high repeatability for precise control tasks
Almost surface independant detection on homogeneous object surfaces
Invertible analogue characteristic
Window mode e.g. for two-step controls separately adjustable
Measurement value output via IO-Link

Product data:
Linearity [mm]: 2
Sensor principle: Distance sensor with triangulation
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 30
Working distance max. [mm]: 200
Velocity [Hz]: 1000
Interface: IO-Link
Type: Cubic
Light source: LED, red
Switching output: PNP/NPN (auto detect)
Amount of swithing outputs: 1
Resolution [mm]: 0.68
Repeatability [mm]: 1
Temperature range [°C]: -20 ... +60
Temperature drift [%]: 0,2 mm / K
Measurement output: Analog (voltage), IO-Link
Connection type: Metal plug M8, 4-pin
Enclosure rating: IP 67, IP69K

SENSOPART FT 25-RA-60-PNSUL-M4M

Description
Miniature housing with measurement ranges up to 200 mm for an easy integration and high flexibility
High linearity and high repeatability for precise control tasks
Almost surface independant detection on homogeneous object surfaces
Invertible analogue characteristic
Window mode e.g. for two-step controls separately adjustable
Measurement value output via IO-Link

Product data:
Linearity [mm]: 0.4
Sensor principle: Distance sensor with triangulation
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 20
Working distance max. [mm]: 80
Velocity [Hz]: 1000
Interface: IO-Link
Type: Cubic
Light source: LED, red
Switching output: PNP/NPN (auto detect)
Amount of swithing outputs: 1
Resolution [mm]: 0.12
Repeatability [mm]: 0.4
Temperature range [°C]: -20 ... +60
Temperature drift [%]: 0,1 mm / K
Measurement output: Analog (voltage), IO-Link
Connection type: Metal plug M8, 4-pin
Enclosure rating: IP 67, IP69K

FT 25-RA-170-NSU-M4M (1. Gen.)

Description
A follow up product is available.

Miniature housing with measurement ranges up to 200 mm for an easy integration and high flexibility
High linearity and high repeatability for precise control tasks
Almost surface independant detection on homogeneous object surfaces
Invertible analogue characteristic
Window mode e.g. for two-step controls separately adjustable

Product data:
Linearity [mm]: 2
Sensor principle: Distance sensor with triangulation
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 30
Working distance max. [mm]: 200
Velocity [Hz]: 1000
Type: Cubic
Light source: LED, red
Switching output: NPN, PNP/NPN (auto detect)
Amount of swithing outputs: 1
Resolution [mm]: 0.68
Repeatability [mm]: 1
Temperature range [°C]: -20 ... +60
Temperature drift [%]: 0,2 mm / K
Measurement output: Analog (voltage)
Connection type: Metal plug M8, 4-pin
Enclosure rating: IP 67, IP69K

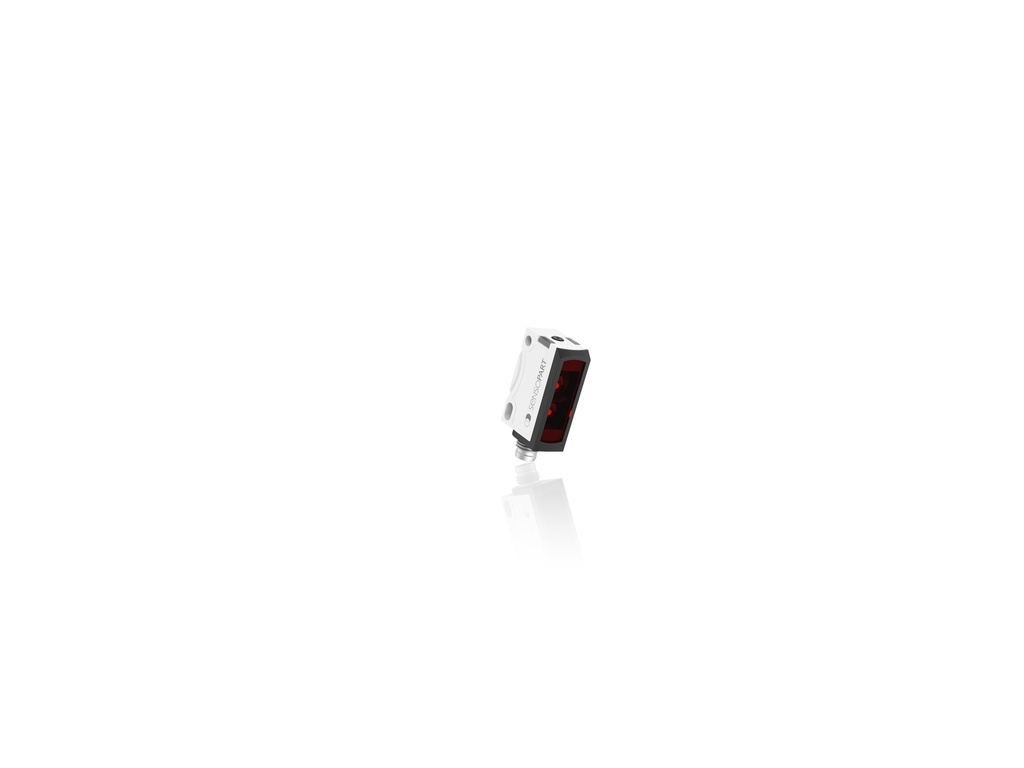

FT 25-RA-170-PSU-M4M (1. Gen.)

Description
A follow up product is available.

Miniature housing with measurement ranges up to 200 mm for an easy integration and high flexibility
High linearity and high repeatability for precise control tasks
Almost surface independant detection on homogeneous object surfaces
Invertible analogue characteristic
Window mode e.g. for two-step controls separately adjustable

Product data:
Linearity [mm]: 2
Sensor principle: Distance sensor with triangulation
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 30
Working distance max. [mm]: 200
Velocity [Hz]: 1000
Type: Cubic
Light source: LED, red
Switching output: PNP, PNP/NPN (auto detect)
Amount of swithing outputs: 1
Resolution [mm]: 0.68
Repeatability [mm]: 1
Temperature range [°C]: -20 ... +60
Temperature drift [%]: 0,2 mm / K
Measurement output: Analog (voltage)
Connection type: Metal plug M8, 4-pin
Enclosure rating: IP 67, IP69K

FT 25-RA-60-NSU-M4M (1. Gen.)

Description
A follow up product is available.

Miniature housing with measurement ranges up to 200 mm for an easy integration and high flexibility
High linearity and high repeatability for precise control tasks
Almost surface independant detection on homogeneous object surfaces
Invertible analogue characteristic
Window mode e.g. for two-step controls separately adjustable

Product data:
Linearity [mm]: 0.4
Sensor principle: Distance sensor with triangulation
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 20
Working distance max. [mm]: 80
Velocity [Hz]: 1000
Type: Cubic
Light source: LED, red
Switching output: PNP, PNP/NPN (auto detect)
Amount of swithing outputs: 1
Resolution [mm]: 0.12
Repeatability [mm]: 0.4
Temperature range [°C]: -20 ... +60
Temperature drift [%]: 0,1 mm / K
Measurement output: Analog (voltage)
Connection type: Metal plug M8, 4-pin
Enclosure rating: IP 67, IP69K

FT 25-RA-60-PSU-M4M (1. Gen.)

A follow up product is available.

Miniature housing with measurement ranges up to 200 mm for an easy integration and high flexibility
High linearity and high repeatability for precise control tasks
Almost surface independant detection on homogeneous object surfaces
Invertible analogue characteristic
Window mode e.g. for two-step controls separately adjustable

SENSOPART FE 25-RL-PNSL-M4M

Photoelectric through-beam sensor (receiver), 18 m, laser, Auto-Detect, teach-in, metal plug M8 4-pin, IP 67 & IP 69, IO-Link

SENSOPART FE 25-RL-PNSL-K4

Photoelectric through-beam sensor (receiver), 18 m, laser, Auto-Detect, teach-in, cable 2m, 4 wires, IP 67 & IP 69, IO-Link

SENSOPART FS 25-RL-L-M4M

Photoelectric through-beam sensor (emitter), 18 m, laser, metal plug M8 4-pin, IP68 & IP 59, IO-Link

SENSOPART FS 25-RL-L-K4

Photoelectric through-beam sensor (emitter), 18 m, laser, cable 2 m 4- wire, IP68 & IP 59, IO-Link

SENSOPART FS 25-RL-M4M

For this prodcut a new version is available: 605-11013 FS 25-RL-L-M4M That offers additional functionality via IO-Link. More pr

SENSOPART FS 25-RL-K4

Laser through-beam sensor, transmitter, red light, 24 VDC, cable For this prodcut a new version is available: 605-11012 FS 25-R

SENSOPART FE 25-R-NS-K4

Trough-beam sensor, receiver, ...m, LED red, teach-in (button and input), 24 VDC, NPN, N.O (N.C), cable For this prodcut a new

SENSOPART FE 25-R-PS-K4

Trough-beam sensor, receiver, ...m, LED red, teach-in (button and input), 24 VDC, NPN, N.O (N.C), cable For this prodcut a new

SENSOPART FS 25-R-L-M4M

Photoelectric through-beam sensor (emitter), 13 m, red light, LED, metal plug M8 4 pin, IP 67 & IP 69, IO-Link

SENSOPART FS 25-R-L-K4

Photoelectric through-beam sensor (emitter), 13 m, red light, LED, cable 2 m 4-wire, IP 67 & IP 69, IO-Link
