Proximity Switches w/ Background Suppression

SENSOPART FT 10-BF3-NS-KM3

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data:
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 50
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: NPN
Temperature range [°C]: -20 ... +50
Connection type: Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating: IP 67

SENSOPART FT 10-BF3-NS-KM4

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
2
Working distance max. [mm]
50
Velocity [Hz]
1000
Adjustment
Control input
Light source
LED, blue
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating
IP 67

SENSOPART FT 10-BF3-NS-K4

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 50
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: NPN
Temperature range [°C]: -20 ... +50
Connection type: Cable, 4-wire, 2 m
Enclosure rating: IP 67

SENSOPART FT 10-BF3-PS-KM3

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 50
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: PNP
Temperature range [°C]: -20 ... +50
Connection type: Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating: IP 67

SENSOPART FT 10-BF3-PS-KM4

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 50
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: PNP
Temperature range [°C]: -20 ... +50
Connection type: Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating: IP 67

SENSOPART FT 10-BF2-NS-KM3

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data: Sensor principle
Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 30
Velocity [Hz] :1000
Adjustment: Control input
Light source: LED, blue
Switching output: NPN
Temperature range [°C]: -20 ... +50
Connection type: Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating: IP 67

SENSOPART FT 10-BF2-NS-KM4

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data:
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 30
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: NPN
Temperature range [°C]: -20 ... +50
Connection type: Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating: IP 67

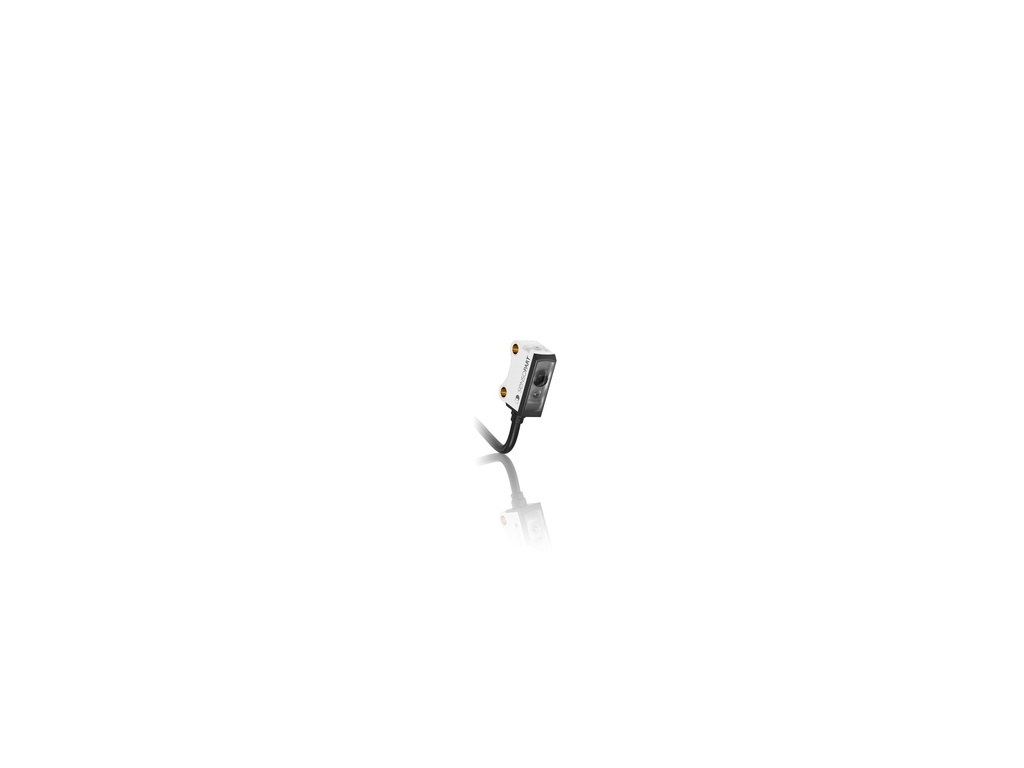

SENSOPART FT 10-BF2-NS-K4

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data:
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm] :30
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: NPN
Temperature range [°C]: -20 ... +50
Connection type: Cable, 4-wire, 2 m
Enclosure rating: IP 67

FT 10-BF2-PS-KM3

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 30
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: PNP
Temperature range [°C]: -20 ... +50
Connection type: Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating: IP 67

SENSOPART FT 10-BF2-PS-KM4

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 30
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: PNP
Temperature range [°C]: -20 ... +50
Connection type: Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating: IP 67

SENSOPART FT 10-BF2-PS-K4

Description
Sub-miniature sensor with BlueLight technology and precise fixed background suppression
Reliable switching behaviour with strongly light-absorbing and transparent objects, e.g. solar wafers in every process phase
Reliable operation without reflector - even with critical surfaces
Tamper-proof sensor design - no misalignment possible
Simple mounting and adjustment through innovative dovetail clamp mounting

Product data:
Sensor principle: Photoelectric diffuse sensor with Background Suppression
Series: F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]: 2
Working distance max. [mm]: 30
Velocity [Hz]: 1000
Adjustment: Control input
Light source: LED, blue
Switching output: PNP
Temperature range [°C]: -20 ... +50
Connection type: Cable, 4-wire, 2 m
Enclosure rating: IP 67
