![[SENSOPART 600-11108] SENSOPART FT 10-B-RLF2-PS-K4](/web/image/product.product/19018/image_1024/%5BSENSOPART%20600-11108%5D%20SENSOPART%20FT%2010-B-RLF2-PS-K4?unique=c0b4e6f)
SENSOPART FT 10-B-RLF2-PS-K4
Laser proximity switch, fix focus, red light, laser class 1, SN=30mm, PNP, 1000Hz, IP67, cable 2m 4-wire, BASIC (without teach-
Proximity Switches w/ Background Suppression
![[SENSOPART 600-11107] SENSOPART FT 10-B-RLF2-NS-E4](/web/image/product.product/19017/image_1024/%5BSENSOPART%20600-11107%5D%20SENSOPART%20FT%2010-B-RLF2-NS-E4?unique=c0b4e6f)
SENSOPART FT 10-B-RLF2-NS-E4
Laser proximity switch, fix focus, red light, laser class 1, SN=30mm, NPN, 1000Hz, IP67, plug M5 4-pin, BASIC (without teach-in
![[SENSOPART 600-11106] SENSOPART FT 10-B-RLF2-PS-E4](/web/image/product.product/19016/image_1024/%5BSENSOPART%20600-11106%5D%20SENSOPART%20FT%2010-B-RLF2-PS-E4?unique=c0b4e6f)
SENSOPART FT 10-B-RLF2-PS-E4
Laser proximity switch, fix focus, red light, laser class 1, SN=30mm, PNP, 1000Hz, IP67, plug M5 4-pin, BASIC (without teach-in
![[SENSOPART 600-11105] SENSOPART FT 10-B-RLF1-NS-KM4](/web/image/product.product/19015/image_1024/%5BSENSOPART%20600-11105%5D%20SENSOPART%20FT%2010-B-RLF1-NS-KM4?unique=c0b4e6f)
SENSOPART FT 10-B-RLF1-NS-KM4
Laser proximity switch, fix focus, red light, laser class 1, SN=15mm, NPN, 1000Hz, IP67, moulded plug (pigtail) M8 4-pin, BASIC
![[SENSOPART 600-11104] SENSOPART FT 10-B-RLF1-PS-KM4](/web/image/product.product/19014/image_1024/%5BSENSOPART%20600-11104%5D%20SENSOPART%20FT%2010-B-RLF1-PS-KM4?unique=c0b4e6f)
SENSOPART FT 10-B-RLF1-PS-KM4
Laser proximity switch, fix focus, red light, laser class 1, SN=15mm, PNP, 1000Hz, IP67, moulded plug (pigtail) M8 4-pin, 200mm
![[SENSOPART 600-11103] SENSOPART FT 10-B-RLF1-NS-K4](/web/image/product.product/19013/image_1024/%5BSENSOPART%20600-11103%5D%20SENSOPART%20FT%2010-B-RLF1-NS-K4?unique=c0b4e6f)
SENSOPART FT 10-B-RLF1-NS-K4
Laser Proximity switch, fix focus, red light, laser class 1, SN=15mm, NPN, 1000Hz, IP67, cable 2m 4-wire, BASIC (without teach-
![[SENSOPART 602-71008] SENSOPART FE 10-RL-NS-KM3](/web/image/product.product/19001/image_1024/%5BSENSOPART%20602-71008%5D%20SENSOPART%20FE%2010-RL-NS-KM3?unique=c0b4e6f)
SENSOPART FE 10-RL-NS-KM3
Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67
![[SENSOPART 602-71006] SENSOPART FE 10-RL-PS-KM3](/web/image/product.product/19000/image_1024/%5BSENSOPART%20602-71006%5D%20SENSOPART%20FE%2010-RL-PS-KM3?unique=c0b4e6f)
SENSOPART FE 10-RL-PS-KM3
Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67
![[SENSOPART 602-71005] SENSOPART FE 10-RL-NS-KM4](/web/image/product.product/18999/image_1024/%5BSENSOPART%20602-71005%5D%20SENSOPART%20FE%2010-RL-NS-KM4?unique=c0b4e6f)
SENSOPART FE 10-RL-NS-KM4
Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating
IP 67
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating
IP 67
![[SENSOPART 602-71004] SENSOPART FE 10-RL-PS-KM4](/web/image/product.product/18998/image_1024/%5BSENSOPART%20602-71004%5D%20SENSOPART%20FE%2010-RL-PS-KM4?unique=c0b4e6f)
SENSOPART FE 10-RL-PS-KM4
Laser through-beam sensor, receiver, red light, laser class 1, SN=4000mm, PNP, 4000Hz, IP67, moulded plug (pigtail) M8 4-pin, 2
![[SENSOPART 602-71003] SENSOPART FE 10-RL-NS-K4](/web/image/product.product/18997/image_1024/%5BSENSOPART%20602-71003%5D%20SENSOPART%20FE%2010-RL-NS-K4?unique=c0b4e6f)
SENSOPART FE 10-RL-NS-K4
Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
![[SENSOPART 602-71002] SENSOPART FE 10-RL-PS-K4](/web/image/product.product/18996/image_1024/%5BSENSOPART%20602-71002%5D%20SENSOPART%20FE%2010-RL-PS-K4?unique=c0b4e6f)
SENSOPART FE 10-RL-PS-K4
Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
![[SENSOPART 602-71001] SENSOPART FE 10-RL-NS-E4](/web/image/product.product/18995/image_1024/%5BSENSOPART%20602-71001%5D%20SENSOPART%20FE%2010-RL-NS-E4?unique=c0b4e6f)
SENSOPART FE 10-RL-NS-E4
Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
NPN
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
![[SENSOPART 602-71000] SENSOPART FE 10-RL-PS-E4](/web/image/product.product/18994/image_1024/%5BSENSOPART%20602-71000%5D%20SENSOPART%20FE%2010-RL-PS-E4?unique=c0b4e6f)
SENSOPART FE 10-RL-PS-E4
Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
1000
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Switching output
PNP
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
![[SENSOPART 601-61005] SENSOPART FS 10-RL-KM3](/web/image/product.product/18993/image_1024/%5BSENSOPART%20601-61005%5D%20SENSOPART%20FS%2010-RL-KM3?unique=c0b4e6f)
SENSOPART FS 10-RL-KM3
Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Temperature range [°C]
-20 ... +50
Connection type
Pigtail, plug M8, 3-wire, 200 mm
Enclosure rating
IP 67
![[SENSOPART 601-61004] SENSOPART FS 10-RL-KM4](/web/image/product.product/18992/image_1024/%5BSENSOPART%20601-61004%5D%20SENSOPART%20FS%2010-RL-KM4?unique=c0b4e6f)
SENSOPART FS 10-RL-KM4
Description
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
Sub-miniature sensor for installation in the smallest of spaces
Bright, precise laser light spot for optimum small-part detection and simple alignment
High switching frequency for detection in even the fastest processes
User-friendly operation via electronic Teach-in button or control line
Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
![[SENSOPART 601-61002] SENSOPART FS 10-RL-K4](/web/image/product.product/18991/image_1024/%5BSENSOPART%20601-61002%5D%20SENSOPART%20FS%2010-RL-K4?unique=c0b4e6f)
SENSOPART FS 10-RL-K4
Laser through-beam sensor, emitter, red light, laser class 1, SN=3000mm, PNP, 4000Hz, IP67, cable 2m 4-wire
![[SENSOPART 601-61000] SENSOPART FS 10-RL-E4](/web/image/product.product/18990/image_1024/%5BSENSOPART%20601-61000%5D%20SENSOPART%20FS%2010-RL-E4?unique=c0b4e6f)
SENSOPART FS 10-RL-E4
Description
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• High switching frequency for detection in even the fastest processes
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
• Sub-miniature sensor for installation in the smallest of spaces
• Bright, precise laser light spot for optimum small-part detection and simple alignment
• High switching frequency for detection in even the fastest processes
• User-friendly operation via electronic Teach-in button or control line
• Robust, glass-fibre-reinforced plastic housings
Product data
Sensor principle
Photoelectric through-beam sensor (sender/receiver)
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
0
Working distance max. [mm]
4000
Velocity [Hz]
4000
Adjustment
Teach-in
Light source
Laser, red (Class 1)
Temperature range [°C]
-20 ... +50
Connection type
Plug M5, 4-pin
Enclosure rating
IP 67
![[SENSOPART 600-11176] SENSOPART FT 10-RLA-60-PNSL-K4](/web/image/product.product/18981/image_1024/%5BSENSOPART%20600-11176%5D%20SENSOPART%20FT%2010-RLA-60-PNSL-K4?unique=c0b4e6f)
SENSOPART FT 10-RLA-60-PNSL-K4
Description
• Measurement value output via IO-Link
• Minimum weight
• Also suited to smallest installation spaces thanks to minimal dimensions
• Adjustable averaging times
• Laser class 1 for optimum eye safety
Product data
Linearity [mm]
0.4
Sensor principle
Distance sensor with triangulation
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
10
Working distance max. [mm]
70
Velocity [Hz]
1000
Interface
IO-Link
Type
Cubic
Light source
Laser, red (Class 1)
Switching output
PNP/NPN (auto detect)
Amount of swithing outputs
1
Resolution [mm]
0.01
Repeatability [mm]
0.1
Temperature range [°C]
-20 ... +50
Temperature drift [%]
0,01 mm / K
Measurement output
IO-Link
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
• Measurement value output via IO-Link
• Minimum weight
• Also suited to smallest installation spaces thanks to minimal dimensions
• Adjustable averaging times
• Laser class 1 for optimum eye safety
Product data
Linearity [mm]
0.4
Sensor principle
Distance sensor with triangulation
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
10
Working distance max. [mm]
70
Velocity [Hz]
1000
Interface
IO-Link
Type
Cubic
Light source
Laser, red (Class 1)
Switching output
PNP/NPN (auto detect)
Amount of swithing outputs
1
Resolution [mm]
0.01
Repeatability [mm]
0.1
Temperature range [°C]
-20 ... +50
Temperature drift [%]
0,01 mm / K
Measurement output
IO-Link
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
![[SENSOPART 600-11175] SENSOPART FT 10-RLA-60-PNSL-KM4](/web/image/product.product/18980/image_1024/%5BSENSOPART%20600-11175%5D%20SENSOPART%20FT%2010-RLA-60-PNSL-KM4?unique=c0b4e6f)
SENSOPART FT 10-RLA-60-PNSL-KM4
Description
• Measurement value output via IO-Link
• Minimum weight
• Also suited to smallest installation spaces thanks to minimal dimensions
• Adjustable averaging times
• Laser class 1 for optimum eye safety
Product data
Linearity [mm]
0.4
Sensor principle
Distance sensor with triangulation
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
10
Working distance max. [mm]
70
Velocity [Hz]
1000
Interface
IO-Link
Type
Cubic
Light source
Laser, red (Class 1)
Switching output
PNP/NPN (auto detect)
Amount of swithing outputs
1
Resolution [mm]
0.01
Repeatability [mm]
0.1
Temperature range [°C]
-20 ... +50
Temperature drift [%]
0,01 mm / K
Measurement output
IO-Link
Connection type
Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating
IP 67
• Measurement value output via IO-Link
• Minimum weight
• Also suited to smallest installation spaces thanks to minimal dimensions
• Adjustable averaging times
• Laser class 1 for optimum eye safety
Product data
Linearity [mm]
0.4
Sensor principle
Distance sensor with triangulation
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
10
Working distance max. [mm]
70
Velocity [Hz]
1000
Interface
IO-Link
Type
Cubic
Light source
Laser, red (Class 1)
Switching output
PNP/NPN (auto detect)
Amount of swithing outputs
1
Resolution [mm]
0.01
Repeatability [mm]
0.1
Temperature range [°C]
-20 ... +50
Temperature drift [%]
0,01 mm / K
Measurement output
IO-Link
Connection type
Pigtail, plug M8, 4-wire, 200 mm
Enclosure rating
IP 67

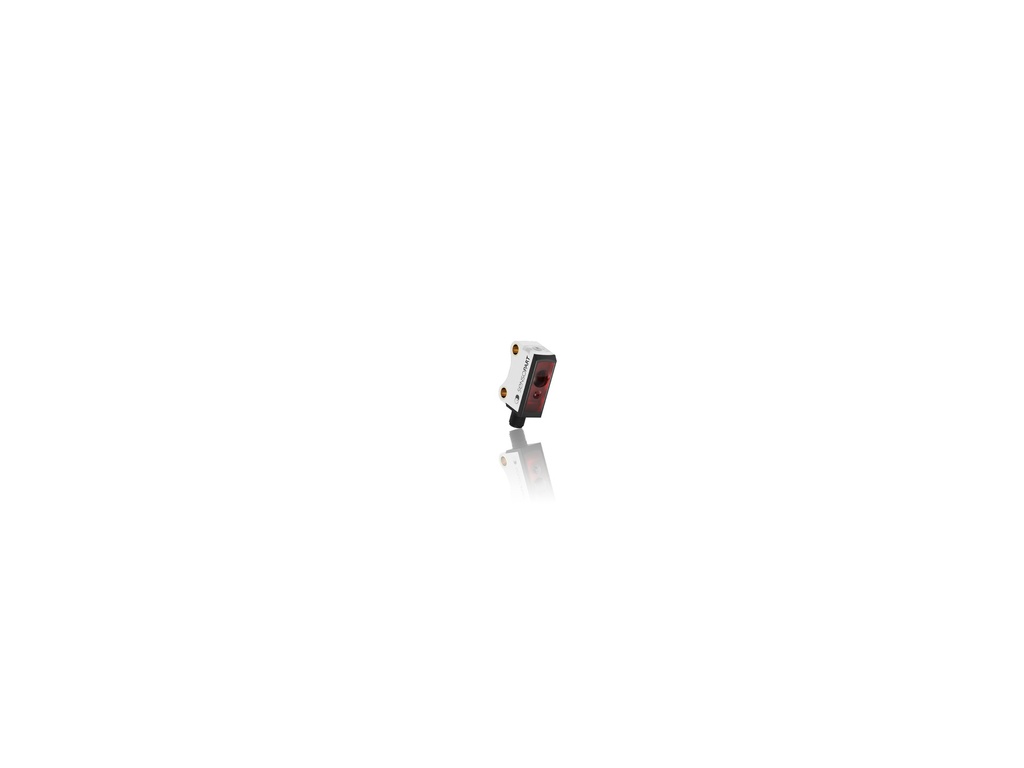

![[SENSOPART 600-11167] SENSOPART FT 10-B-RLF1-PNSL-E4](/web/image/product.product/22678/image_1024/%5BSENSOPART%20600-11167%5D%20SENSOPART%20FT%2010-B-RLF1-PNSL-E4?unique=c0b4e6f)
SENSOPART FT 10-B-RLF1-PNSL-E4
Photoelectric diffuse sensor with background suppression (fix focus), 15 mm, Laser, Auto-Detect, plug M5 4-pin, IP 67, IO-Link
