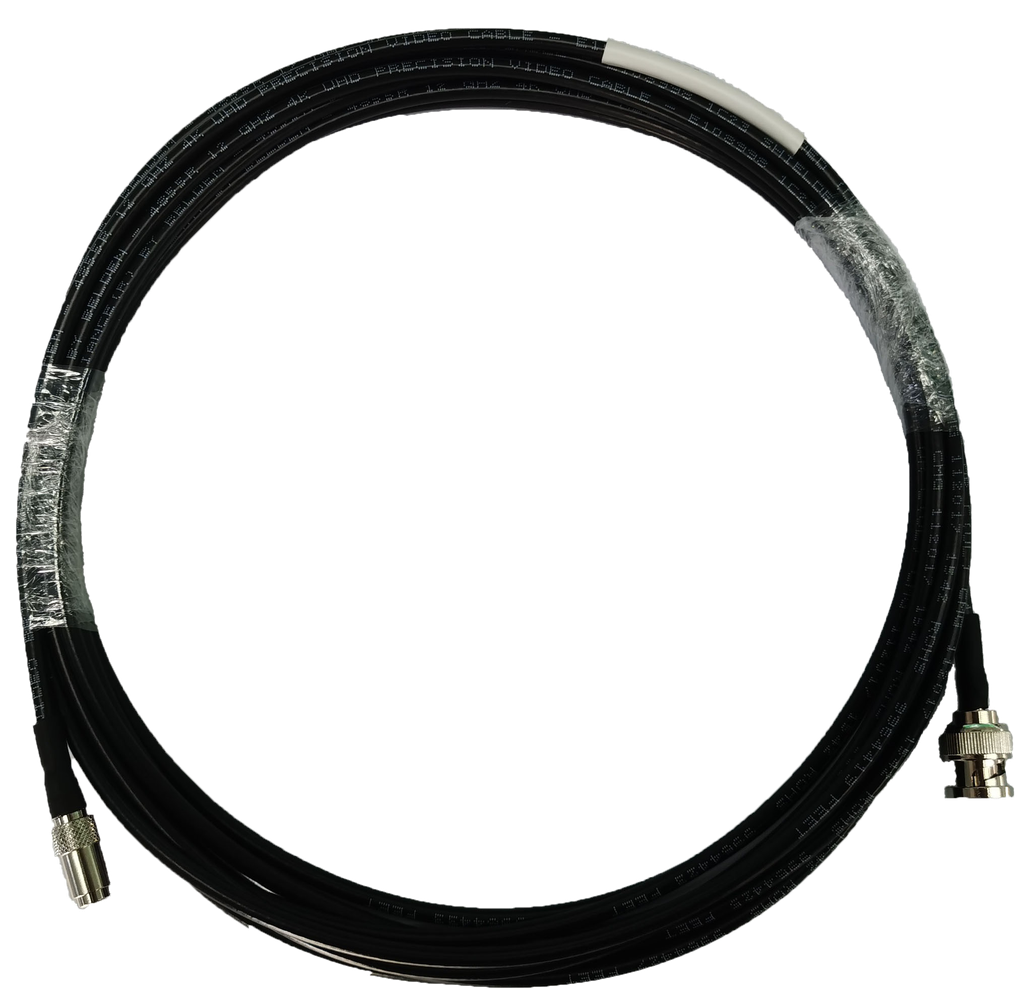

Hikrobot MV-ACXP6-DIN-BNC-ST-5m

Hikrobot MV-ACXP6-DIN-BNC-ST-5m

Hikrobot MV-ACXP6-DIN-BNC-ST-5m — Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals. Genuine product, supplied by ZTEC.

0,00 € 0,00 €
kr 0,00
(eksklusiv moms)
Kontakt os
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-ACXP6-DIN-BNC-ST-5m

Cable

Order code
MV-ACXP6-DIN-BNC-ST-5m
Order number
310100888

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Key features

✓The CXP-6 Standard Data Cable can be used for data transmission of CoaxPress interface cameras, and is available in a variety of lengths.

Specifications

Specifications
End A connectorDIN 1.0/2.3
End B connector
Cable diameter4 mm
Length5 m
Cable mechanicalCoaxial
JacketPVC
Cable colorBlack
Connector durability500 cycles
Min. bending radius60 mm
Applicable scenarioStatic scenes
Max. voltage300 VDC
Working temperature-30°C-75°C
CertificationUL,CMR
PackagingIndividual package
