- All products

For this prodcut a new version is available 608-11052 FT 25-RH-PNSL-K4. That offers additional functionality via IO-Link. More

Proximity switch bgs, ...mm, LED red, teach-in (button and input), 24 VDC, PNP, N.O (N.C), plug M8 4-pin For this prodcut a new

Description
Precise detection of the slightest of contrast differences through multi-color RGB evaluation
Very robust operation despite fluttering and glossy objects
Simple alignment thanks to very precise and easily visible light spot
Communication via 3-color light spot (simple, comprehensible, clearly defined)
Very accurate positioning due to rapid scanning rate of 10 µs

Product data:
Sensor principle: Contrast sensor
Spot size [mm]: 1 x 4
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 9
Working distance max. [mm]: 15
Velocity [Hz]: 25000
Interface: IO-Link
Light source: LED, RGB
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type: Metal plug M8, 4-pin
Enclosure rating: IP 67, IP69

Description
Precise detection of the slightest of contrast differences through multi-color RGB evaluation
Very robust operation despite fluttering and glossy objects
Simple alignment thanks to very precise and easily visible light spot
Communication via 3-color light spot (simple, comprehensible, clearly defined)
Very accurate positioning due to rapid scanning rate of 10 µs

Product data
Sensor principle: Contrast sensor
Spot size [mm]: 1 x 4
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 9
Working distance max. [mm]: 15
Velocity [Hz]: 25000
Interface: IO-Link
Light source: LED, RGB
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type: Pigtail, plug M12, 4-wire, 150 mm
Enclosure rating: IP 67, IP69

Description
Precise detection of the slightest of contrast differences through multi-color RGB evaluation
Very robust operation despite fluttering and glossy objects
Simple alignment thanks to very precise and easily visible light spot
Communication via 3-color light spot (simple, comprehensible, clearly defined)
Very accurate positioning due to rapid scanning rate of 10 µs

Product data:
Sensor principle: Contrast sensor
Spot size [mm]: 1 x 4
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 9
Working distance max. [mm]: 15
Velocity [Hz]: 10000
Interface: IO-Link
Light source: LED, RGB
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type: Pigtail, plug M12, 4-wire, 150 mm
Enclosure rating: IP 67, IP69

Description
Precise detection of the slightest of contrast differences through multi-color RGB evaluation
Very robust operation despite fluttering and glossy objects
Simple alignment thanks to very precise and easily visible light spot
Communication via 3-color light spot (simple, comprehensible, clearly defined)
Very accurate positioning due to rapid scanning rate of 10 µs

Product data:
Sensor principle: Contrast sensor
Spot size [mm]: 1 x 4
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 9
Working distance max. [mm]: 15
Velocity [Hz]: 10000
Interface: IO-Link
Light source: LED, RGB
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type: Plug M8, 4-pin
Enclosure rating: IP 67, IP69

Description
Precise detection of the slightest of contrast differences through multi-color RGB evaluation
Very robust operation despite fluttering and glossy objects
Simple alignment thanks to very precise and easily visible light spot
Communication via 3-color light spot (simple, comprehensible, clearly defined)
Very accurate positioning due to rapid scanning rate of 10 µs

Product data:
Sensor principle: Contrast sensor
Spot size [mm]: 1 x 4
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 9
Working distance max. [mm]: 15
Velocity [Hz]: 25000
Interface: IO-Link
Light source: LED, RGB
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type: Metal plug M8, 4-pin
Enclosure rating: IP 67, IP69

Description
Precise detection of the slightest of contrast differences through multi-color RGB evaluation
Very robust operation despite fluttering and glossy objects
Simple alignment thanks to very precise and easily visible light spot
Communication via 3-color light spot (simple, comprehensible, clearly defined)
Very accurate positioning due to rapid scanning rate of 10 µs

Product data:
Sensor principle: Contrast sensor
Spot size [mm]: 1 x 4
Series: F25 (34 x 20 x 12 mm)
Working distance min. [mm]: 9
Working distance max. [mm]: 15
Velocity [Hz]: 25000
Interface: IO-Link
Light source: LED, RGB
Switching output: Push-pull
Temperature range [°C]:-20 ... +55
Connection type:Pigtail, plug M12, 4-wire, 150 mm
Enclosure rating: IP 67, IP69

RGB contrast sensor, 12 +/- 3mm, 10 kHz, Push Pull, teach in, pigtail 150mm with plug M12 4-pins, IP67 & IP69K For this prodcut

Description
Precise detection of the slightest of contrast differences through multi-color RGB evaluation
Very robust operation despite fluttering and glossy objects
Simple alignment thanks to very precise and easily visible light spot
Communication via 3-color light spot (simple, comprehensible, clearly defined)
Very accurate positioning due to rapid scanning rate of 10 µs

Product data:
Sensor principle: Contrast sensor
Spot size [mm]: 1 x 4
Working distance min. [mm]: 9
Working distance max. [mm]: 15
Light source: LED, RGB
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type: Plug M8, 4-pin
Enclosure rating: IP 67, IP69

RGB contrast sensor, 12 +/- 3mm, 25 kHz Push Pull, teach in metall plug M8 4-pins IP67 & IP69K For this prodcut a new version i

Description
Precise detection of the slightest of contrast differences through multi-color RGB evaluation
Very robust operation despite fluttering and glossy objects
Simple alignment thanks to very precise and easily visible light spot
Communication via 3-color light spot (simple, comprehensible, clearly defined)
Very accurate positioning due to rapid scanning rate of 10 µs

Product data:
Sensor principle: Contrast sensor
Spot size [mm]: 1 x 4
Working distance min. [mm]: 9
Working distance max. [mm]: 15
Light source: LED, RGB
Switching output: Push-pull
Temperature range [°C]: -20 ... +55
Connection type: Pigtail, plug M12, 4-wire, 150 mm
Enclosure rating: IP 67, IP69

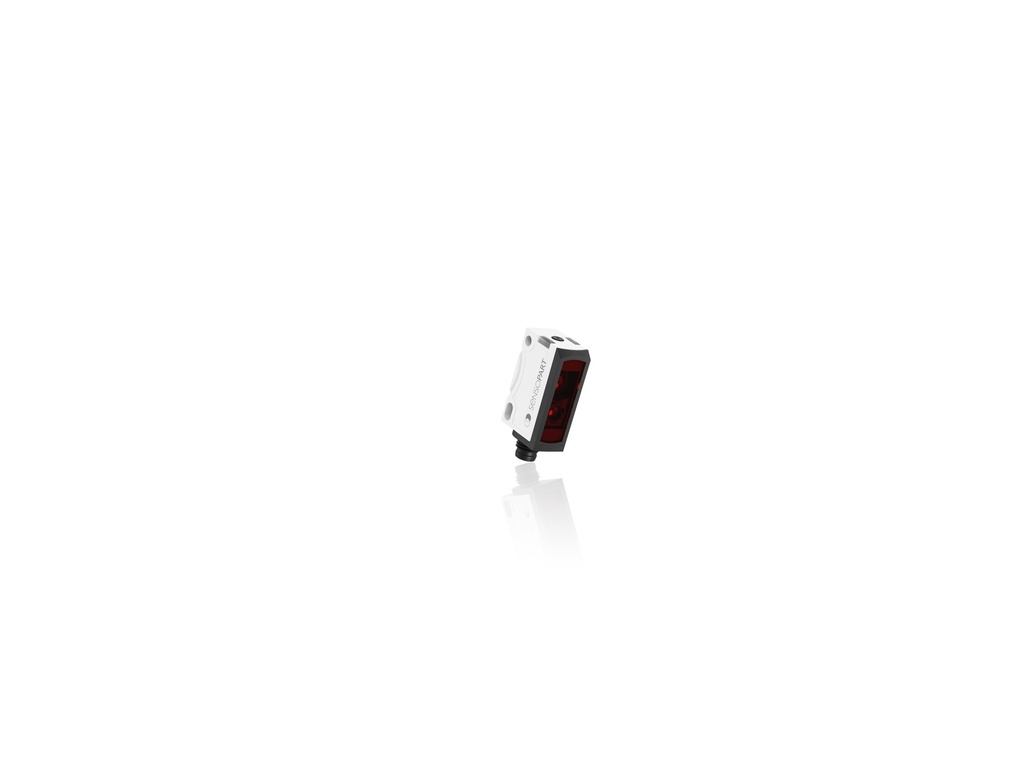

Photoelectric proximity sensor with background suppression (fixed focus), 60 mm, red light, LED, Auto-Detect, metal plug M8 4-p

Photoelectric proximity sensor with background suppression (fixed focus), 80 mm, red light, LED, Auto-Detect, cable 2 m 4-wire,

Photoelectric proximity sensor with background suppression (fixed focus), 80 mm, red light, LED, Auto-Detect, fixed settings, p

Photoelectric proximity sensor with background suppression fixed focus, 60 mm, red light, LED, Auto-Detect, cable 2 m 4-wire, I

Photoelectric proximity sensor with backgrpund suppression (fixed focus), 60 mm, red light, LED, Auto-Detect, plug M8 4-pin, IP

Proximity sensor with backgrpund suppression, (fixed focus), 60mm, redlight, LED, PNP, metal plug M8 4-pin, IP67 & IP69K For th

For this prodcut a new version is available 608-11061 FT 25-RF2-PNSL-K4. That offers additional functionality via IO-Link. More

Proximity switch with background suppression, 80mm, Fix Focus, PNP NO/NC, 2m cable For this prodcut a new version is available

For this prodcut a new version is available 608-11060 FT 25-RF2-PNSL-M4. That offers additional functionality via IO-Link. More
