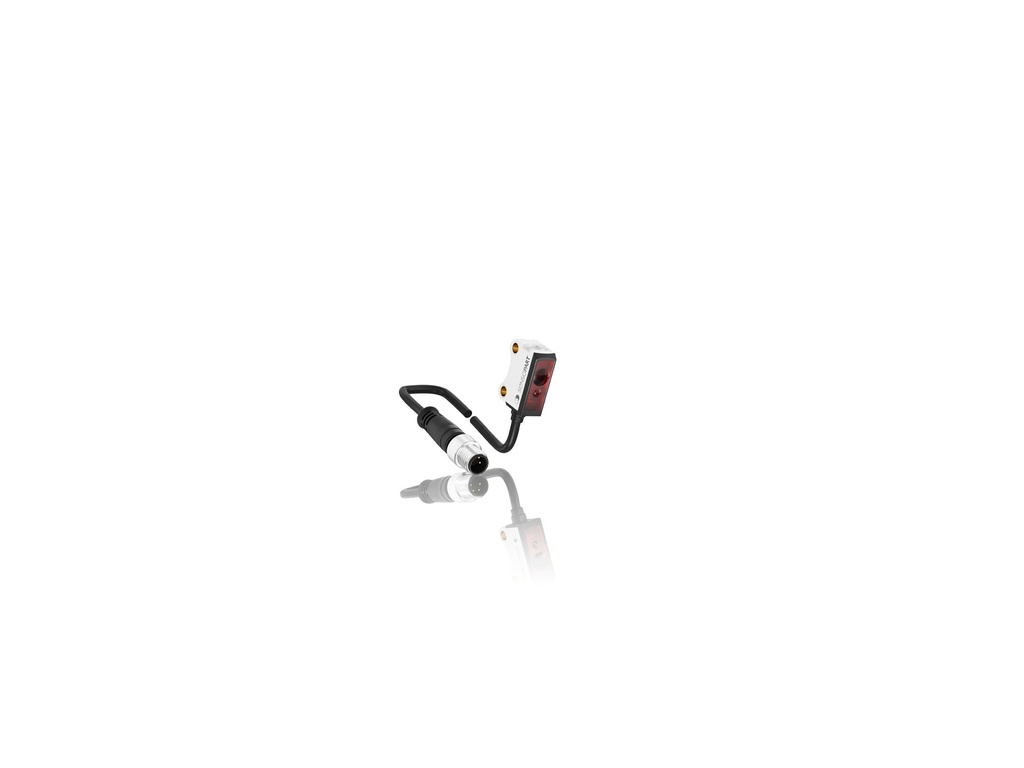

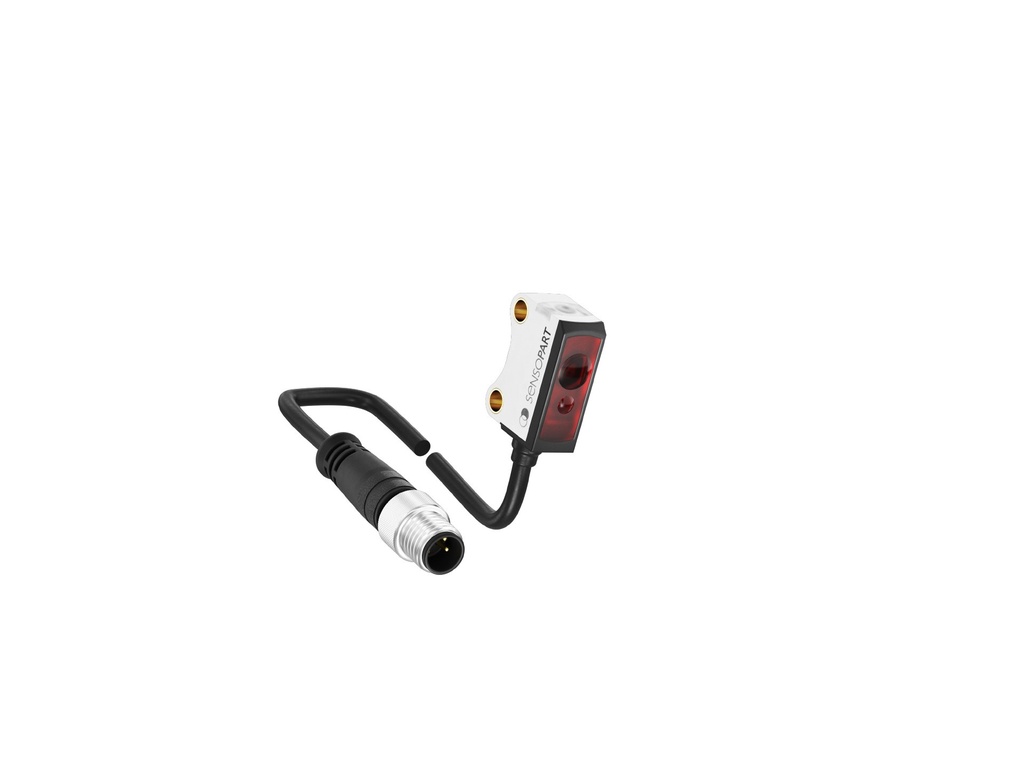

SENSOPART FT 10-RLH-PNSL-KM4

SensoPart FT 10-RLH-PNSL-KM4 — Diffuse laser sensor with background suppression, red light, laser class 1, SN=10 … 70 mm, Auto-Detect, 1000 Hz, IP 67, pigtail. Genuine product, supplied and supported by ZTEC.

0,00 € 0,00 €
kr 0,00
(eksklusiv moms)
Kontakt os
Documents
SENSOPART FT 10-RLH-PNSL-KM4 - Brochure 2.pdf SENSOPART FT 10-RLH-PNSL-KM4 - Brochure.pdf SENSOPART FT 10-RLH-PNSL-KM4 - CAD.zip SENSOPART FT 10-RLH-PNSL-KM4 - Datasheet 2.pdf SENSOPART FT 10-RLH-PNSL-KM4 - Datasheet.pdf SENSOPART FT 10-RLH-PNSL-KM4 - IODD.pdf SENSOPART FT 10-RLH-PNSL-KM4 - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart FT 10-RLH-PNSL-KM4

A photoelectric proximity sensor with background suppression — it detects an object at a defined range and reliably ignores whatever is behind it

Order code
FT 10-RLH-PNSL-KM4
Order number
600-11165
SensoPart FT 10-RLH-PNSL-KM4
Working distance
6
Output
PNP/NPN (auto detect)
Connection
Pigtail, plug M8, 4-wire, 200 mm
Interface
IO-Link

SensoPart FT 10-RLH-PNSL-KM4 is a photoelectric proximity sensor with background suppression — it detects an object at a defined range and reliably ignores whatever is behind it, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Scanning range 70 mm, adjustable with teach-in
✓Ultra-small and robust housing
✓Laser, red light 655 nm
✓Laser class 1
✓Easy & flexible mounting (drill hole or dovetail)
✓External teach/key lock

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Sensor principlePhotoelectric diffuse sensor with Background Suppression
Spot size [mm]1 x 3

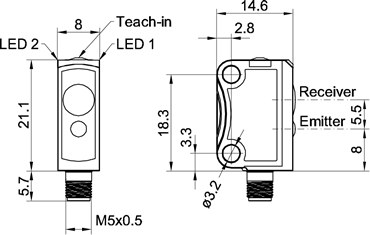

SeriesF10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
Working distance max. [mm]
Velocity [Hz]800
InterfaceIO-Link
AdjustmentControl input
Light sourceLaser, red (Class 1)
Switching outputPNP/NPN (auto detect)
Temperature range [°C]-20 ... +50
Connection typePigtail, plug M8, 4-wire, 200 mm
Enclosure ratingIP 67
