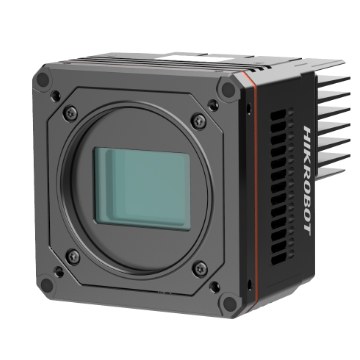

Hikrobot MV-CH650-90YC-F-NN

Hikrobot MV-CH650-90YC-F-NN — MV-CH650-90YM/YC camera adopts Gpixel GMAX3265  Mono camera: MV-CH650-90YM-M58S-NN sensor to provide high-quality image. It uses CXP-12 interface  Color camera: MV-CH650-90YC-M58S-NN to transmit non-compressed images in real time, and its max. Applicable. Originalus produktas, tiekiamas ZTEC.

0,00 € 0,00 €
kr 0,00
(Tax excluded)
Susisiekite su mumis
Documents
MV-CH650-90YC-F-NN - CAD (RAR).rar MV-CH650-90YC-F-NN - Datasheet.pdf MV-CH650-90YC-F-NN - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH650-90YC-F-NN

CH Area Scan Camera

Order code
MV-CH650-90YC-F-NN
Order number
306302151
Resolution
9344 × 7000
Frame rate
71 fps @ 9344 × 7000
Interface
CoaXPress with Micro-BNC interface
Pixel size
3.2 μm × 3.2 μm

Hikrobot MV-CH650-90YC-F-NN is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 9344 × 7000, pixel size of 3.2 µm × 3.2 µm.
✓Adopts global shutter CMOS to provide high dynamic range, SNR, and high-quality images.
✓Supports LSC sequencer polling function.
✓Adopts CXP-12 interface to transmit data.
✓Supports the flat field correction.
✓Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX3265
Pixel size3.2 μm × 3.2 μm
Sensor size29.9 mm × 22.4 mm
Resolution9344 × 7000
Max. frame rate71 fps @ 9344 × 7000
Dynamic range66 dB
SNR40 dB
Gain1.25x
Exposure time12 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
MonoMono
Pixel formatMono 8/10/12
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceCoaXPress with Micro-BNC interface

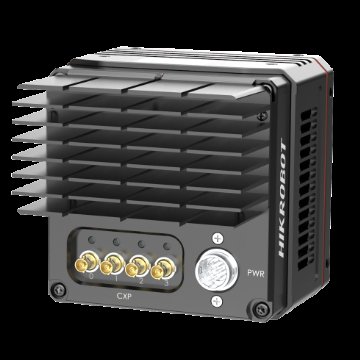

12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power supply24 VDC, CXP-0 and CXP-1 connectors support PoCXP
Power consumptionTyp. 13.0 W @ 24 VDC
Mechanical
84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6")
WeightApprox. 650 g (1.4 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or frame grabber software meeting with CoaXPress Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11 with 8 GB memory or above
CompatibilityCoaXPress, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountM58*0.75, flange back length 11.48 mm
