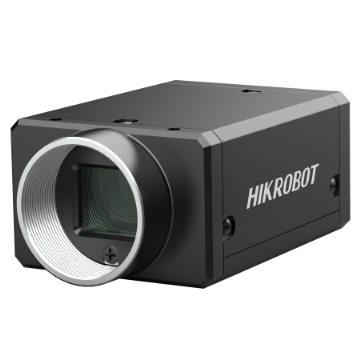

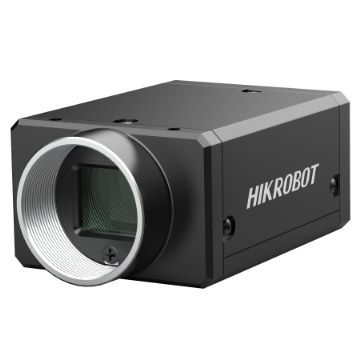

Hikrobot MV-CH140-60GM

Hikrobot MV-CH140-60GM — MV-CH140-60GM/GC camera adopts CMOS global sensor  Mono camera: MV-CH140-60GM to provide high-quality images. It uses GigE interface to  Color camera: MV-CH140-60GC transmit non-compressed images in real time, and its max. Applicable. Originalus produktas, tiekiamas ZTEC.

0,00 € 0,00 €
kr 0,00
(Tax excluded)
Susisiekite su mumis
Documents
MV-CH140-60GM - CAD (RAR).rar MV-CH140-60GM - Datasheet.pdf MV-CH140-60GM - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH140-60GM

CH Area Scan Camera

Order code
MV-CH140-60GM
Order number
306302257
Resolution
4708 × 2824
Frame rate
9 fps @ 4708 × 2824 Mono 8
Pixel size
3 μm × 3 μm
Sensor
Stacked BSI

Hikrobot MV-CH140-60GM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc.
✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorLogisticsPackaging
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelStacked BSI
Pixel size3 μm × 3 μm
Sensor size
Resolution4708 × 2824
Max. frame rate9 fps @ 4708 × 2824 Mono 8
Dynamic range56.9 dB
SNR41.9 dB
Gain0 dB to 24 dB
Exposure time80 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)

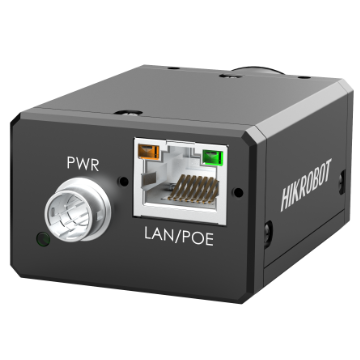

6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 3.0 W @ 12 VDC
Mechanical
29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
WeightApprox. 117 g (0.3 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountC-mount
