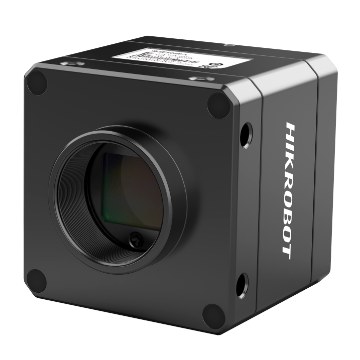

Hikrobot MV-CH050-90XC-C-NN

Hikrobot MV-CH050-90XC-C-NN — MV-CH050-90XM/XC camera adopts Gpixel GMAX2505 sensor  Mono camera: MV-CH050-90XM-C-NN to provide high quality image. It uses CXP-6 interface to transmit  Color camera: MV-CH050-90XC-C-NN data, and its max. frame rate can reach 213 fps. Applicable. Originalus produktas, tiekiamas ZTEC.

0,00 € 0,00 €
kr 0,00
(Tax excluded)
Susisiekite su mumis
Documents
MV-CH050-90XC-C-NN - CAD (RAR).rar MV-CH050-90XC-C-NN - Datasheet.pdf MV-CH050-90XC-C-NN - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH050-90XC-C-NN

CH Area Scan Camera

Order code
MV-CH050-90XC-C-NN
Order number
306302461
Resolution
2592 × 2160
Frame rate
213 fps @ 2592 × 2160 Bayer BG 8
Interface
CoaXPress with DIN interface
Pixel size
2.5 μm × 2.5 μm

Hikrobot MV-CH050-90XC-C-NN is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 2592 × 2160, pixel size of 2.5 µm × 2.5 µm.
✓Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
✓Supports LSC correction, super palette, CCM, and SuperBayer.
✓Adopts CXP-6 interface to transmit data.
✓Supports Off, Once, and Continuous exposure modes.
✓Compatible with CoaXPress Protocol and GenlCam Standard.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX2505
Pixel size2.5 μm × 2.5 μm
Sensor size1/2"
Resolution2592 × 2160
Max. frame rate213 fps @ 2592 × 2160 Bayer BG 8
Dynamic range63.8 dB
SNR37 dB
1.0x, 1.25x, 1.5x, 1.75x, 2.0x
Exposure time5 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatMono 8, Bayer BG 8/12, YUV 422 Packed
Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceCoaXPress with DIN interface
12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power supply9 VDC to 24 VDC, CXP-1 supports PoCXP
Power consumptionTyp. 4.8 W @ 12 VDC
Mechanical
50 mm × 50 mm × 45 mm (2.0" × 2.0" × 1.8")
WeightApprox. 220 g (0.5 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or frame grabber software meeting with CoaXPress Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityCoaXPress, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountC-mount, flange back length 17.52 mm
