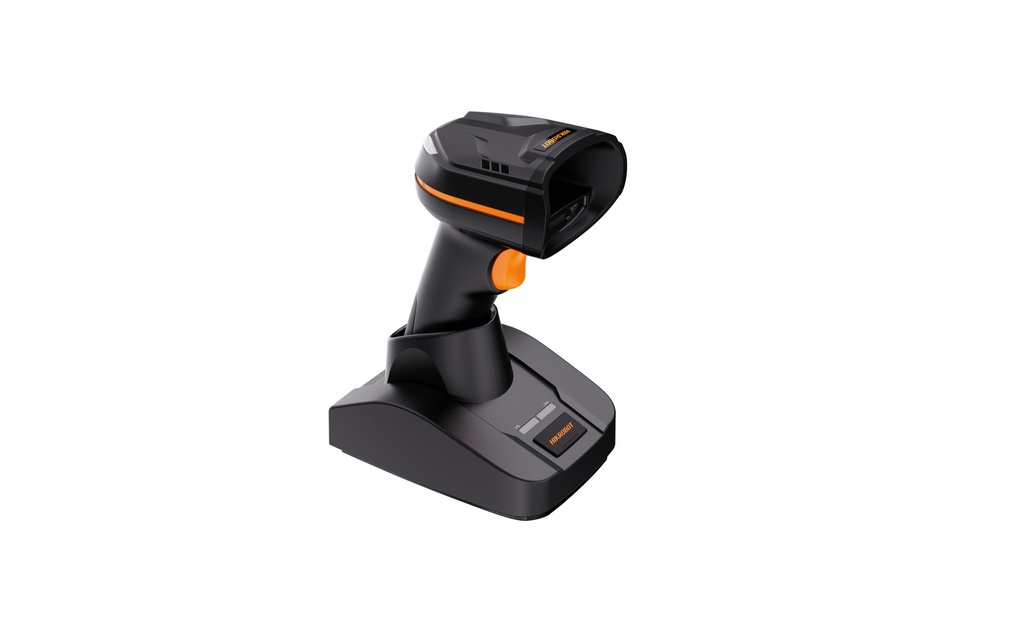

Hikrobot 313201090

IDH

Resolution
1280 × 1024
Interface
USB2.0, DC terminal

Hikrobot 313201090 is a handheld code reader for robust scanning of barcodes and 2D codes in industry and logistics, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Applications & Industries

What you can solve with this product:

Traceability
Traceability via barcode/DataMatrix in production and logistics
Reading
Reading on demanding surfaces (metal, plastic, low-contrast)
Sorting, track-and-trace and reject routing
Sorting, track-and-trace and reject routing on the line

Specifications

Specifications
1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 25, ITF 14, UPCA, and UPCE 2D codes: QR Code, Data Matrix
Resolution1280 × 1024
Communication protocolWireless handheld code reader: USB (HID) Smart base: SmartSDK, USB (HID/CDC)
Data interfaceUSB2.0, DC terminal
Light sourceRed LED
Wireless handheld code reader: 74.4 mm × 86.6 mm × 179.5 mm (2.9" × 3.4" × 7.1") Smart base: 100.9 mm × 131.8 mm × 83.6 mm (4.0" × 5.2" × 3.3")
Ingress protection
3150 mAh, chargeable lithium battery
Charging time8.5 h (USB)
CertificationBIS,CE-EMC,CE-RED,CE-LVD,KC,SIRIM
Technical support
We help with selection, integration and operation
Oficialus Hikrobot partneris
Genuine, CE-marked products with full warranty
Full range & fast quotes
We source the entire Hikrobot range, including special items
