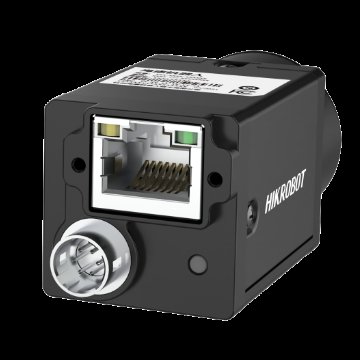

Hikrobot MV-CU050-30GC

Hikrobot MV-CU050-30GC — MV-CU050-30GM/GC camera adopts AR0521 sensor to provide ● Mono camera: MV-CU050-30GM high-quality images. It uses GigE interface to transmit non- ● Color camera: MV-CU050-30GC compressed images in real time, and its max. frame rate can reach Applicable. Originalus produktas, tiekiamas ZTEC.

573,92 € 573,92 €
kr 4.290,49
(Tax excluded)
Susisiekite su mumis
Documents
MV-CU050-30GC - Datasheet.pdf MV-CU050-30GC - Drawing.pdf MV-CU050-30GC - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CU050-30GC

CU Area Scan Camera

Order code
MV-CU050-30GC
Order number
306301997
Resolution
2592 × 1944
Frame rate
24 fps @ 2592 × 1944 Bayer GR 8
Pixel size
2.2 μm × 2.2 μm
Sensor
AR0521

Hikrobot MV-CU050-30GC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts low power consumption design with stable performance.
✓Supports auto and manual adjustment of gain, exposure time, etc.
✓Supports hardware trigger, software trigger, free run, etc.
✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: SemiconductorLogistics
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, rolling shutter
Sensor modelAR0521
Pixel size2.2 μm × 2.2 μm
Sensor size1/2.5"
Resolution2592 × 1944
Max. frame rate24 fps @ 2592 × 1944 Bayer GR 8
Dynamic range63 dB
SNR37 dB
Gain0 dB to 15 dB
Exposure time21 μs to 1 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatBayer GR 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2
DecimationSupports 1 × 1, 2 × 2
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports PoE
Power consumptionTyp. 1.81 W @ 12 VDC
Mechanical
Lens mountC-mount
29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
WeightApprox. 100 g (0.2 lb.)
Ingress protectionIP30 (under proper lens installation and wiring)
Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 80% RH (no condensation)
General
Client softwareMVS or third-party software meeting with GigE Vision Protocol
Operating system32/64-bit Windows XP/7/10/11, 32/64-bit Linux, and 64-bit MacOS
CompatibilityGigE Vision V2.0, GenICam
CertificationRoHS
