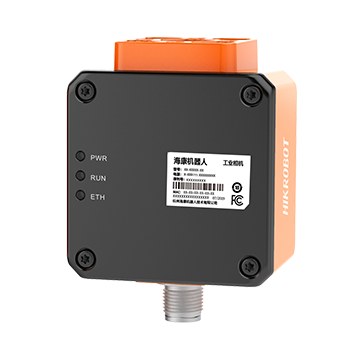

Hikrobot MV-SC2005AC-03WBN

SC2000A Series Navigation Sensor

Order code
MV-SC2005AC-03WBN
Order number
308600925
Accuracy
0.1 mm
Resolution
800 × 600
Frame rate
96 fps
Field of view
86.9°

Hikrobot MV-SC2005AC-03WBN is a smart camera with on-board image processing for inspection, measurement and control directly on the line.

Key features

✓Built-in ribbon localization algorithm to effectively localize ribbon.
✓Built-in code reading algorithm to read 2-dimensional code tapes and array codes.
✓Provides good robustness to read codes with spots, defects and low contrast ratio.
✓Adopts CMOS sensor to provide high-quality images.
✓Adopts multiple indicators for displaying status and debugging.
✓Adopts M12 lens and supports large field of view.
✓Better optical design to provide uniform illumination and applicable to strong reflection.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Symbologies2-dimensional codes: DM-12, DM-14
Max. frame rate96 fps
Max. reading speed83 codes/sec
Max. running speed3 m/sec (it is the AGV's max. running speed)
Sensor typeCMOS, global shutter
Pixel size4.8 μm × 4.8 μm
Sensor size1/3.6"
Resolution800 × 600
Exposure time20 μs to 9000 μs
Gain1 dB to 330 dB
Mono/colorColor
Pixel formatRGB
Communication protocolSmartSDK, UDP, Serial, Modbus RTU, PROFINET, EthernetIP
Electrical feature
Data interfaceFast Ethernet (100 Mbit/sec), RS-485
Digital I/O12-pin M12 connector provides power supply and RS-485 × 1
Power supply24 VDC
Max. power consumption18 W @ 24 VDC (self light source enabled) 3 W @ 24 VDC (self light source disabled)
Mechanical
Focal length3.4 mm
Working distance100 mm ± 5 mm
Displacement accuracy0.1 mm
Angle accuracy0.1°
Field of view86.9°
Field of view (range)114 mm × 85 mm
Dimension68 mm × 60 mm × 42.2 mm (2.7" × 2.4" × 1.7")
WeightApprox. 200 g (0.4 lb.)
Ingress protectionIP65 (with proper installation of waterproof lens cap)
TemperatureWorking temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity10% RH to 90% RH (no condensation)
General
Client softwareIDMVS
CertificationCE, RoHS
