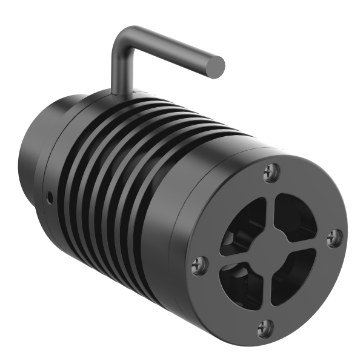

Hikrobot MV-LDFM-H-20-10-W

Hik Light Source

Order code
MV-LDFM-H-20-10-W
Order number
310101762
Working distance
50 ~ 500 mm

Hikrobot MV-LDFM-H-20-10-W is industrial machine-vision lighting for stable, uniform illumination and reliable image quality.

Key features

✓Provides round direct light source to achieve uniform illumination in the center area.
✓Adopts a high focusing design with high brightness, surface illuminance (center) > 2000K lux.
✓Features a compact size, suitable for extremely narrow installation space.

Applications & Industries

What you can solve with this product:

Stable, uniform illumination
Stable, uniform illumination for reliable image quality
Highlighting edges, grooves, print and defects
Highlighting edges, grooves, print and defects
Reducing reflections and shadows
Reducing reflections and shadows

Specifications

Performance
Wavelength
Color temperature6000 ~ 7000K
Mechanical
Cable length1 m
Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 80°C (–4 °F to 176 °F)
Humidity20% RH to 90% RH (no condensation)
Additional specifications
ColorWhite
Center illuminance> 400K lux@WD=100 mm
Best working distance50 ~ 500 mm
Power9 W
Connector type12M-5A
Dimension75.3 mm × Ø40 mm
Optical outlet diameterØ18.5 mm
Weight0.1 kg
Safety classRG2
Safety distance5.40 m

Downloads

Datasheets, drawings and manuals — all in one place.

MV-LDFM-H-20-10-W - Datasheet.pdfPDF · 462.2 KB
MV-LDFM-H-20-10-W - Drawing.pdfPDF · 202.0 KB
