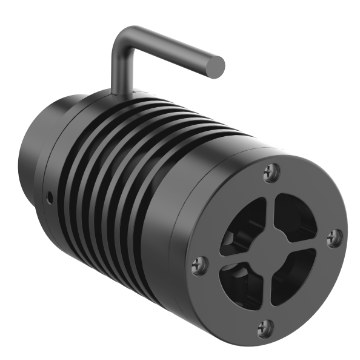

Hikrobot MV-LDFM-H-20-5-IR850

Hik Light Source

Order code
MV-LDFM-H-20-5-IR850
Order number
310101768
Working distance
50 ~ 500 mm

Hikrobot MV-LDFM-H-20-5-IR850 is industrial machine-vision lighting for stable, uniform illumination and reliable image quality.

Key features

✓Provides round direct light source to achieve uniform illumination in the center area.
✓Adopts a high focusing design with high brightness, surface illuminance (center) > 2000K lux.
✓Features a compact size, suitable for extremely narrow installation space.

Applications & Industries

What you can solve with this product:

Stable, uniform illumination
Stable, uniform illumination for reliable image quality
Highlighting edges, grooves, print and defects
Highlighting edges, grooves, print and defects
Reducing reflections and shadows
Reducing reflections and shadows

Specifications

Performance
Wavelength850 nm
Color temperature
Mechanical
Cable length1 m
Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 80°C (–4 °F to 176 °F)
Humidity20% RH to 90% RH (no condensation)
Additional specifications
ColorInfrared
Center illuminance> 150m W/cm2@WD=100 mm
Best working distance50 ~ 500 mm
Power5 W
Connector type12M-5A
Dimension75.3 mm × Ø40 mm
Optical outlet diameterØ18.5 mm
Weight0.1 kg
Safety classRG2
Safety distance5.40 m
